Rear Compartment Lid Release Switch Replacement

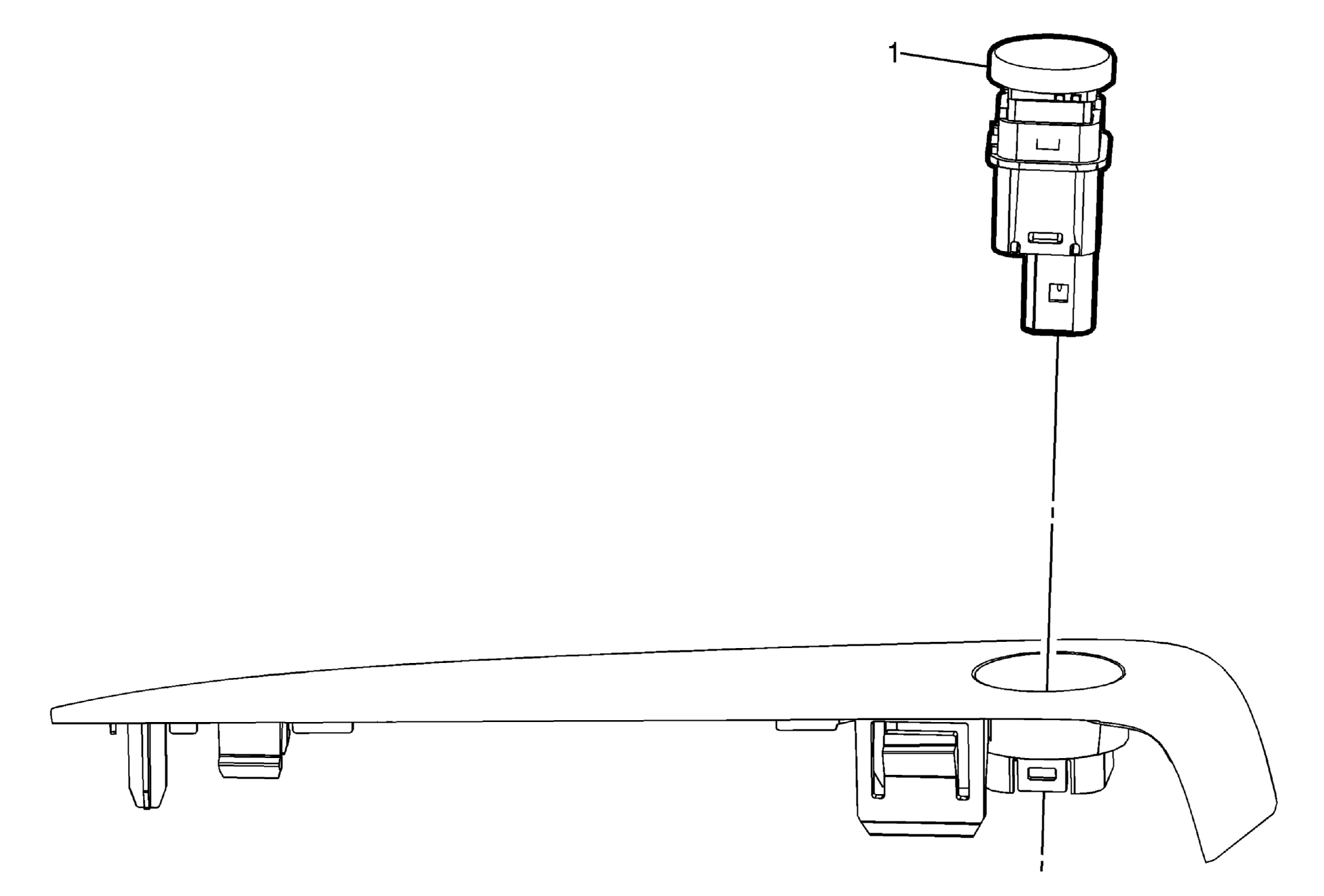

Fig 1: Rear Compartment Lid Release Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid release switch bezel. Refer to Rear Compartment Lid Release Switch Bezel Replacement .
1	Rear Compartment Lid Release Switch Assembly Procedure Disconnect the electrical connector. Push the 2 tabs in to release the switch from the rear compartment lid release switch bezel.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid release switch bezel. Refer to Rear Compartment Lid Release Switch Bezel Replacement .

Rear Compartment Lid Release Switch Assembly

Procedure

Disconnect the electrical connector.
Push the 2 tabs in to release the switch from the rear compartment lid release switch bezel.
