Plenum Upper Panel Insulator Replacement

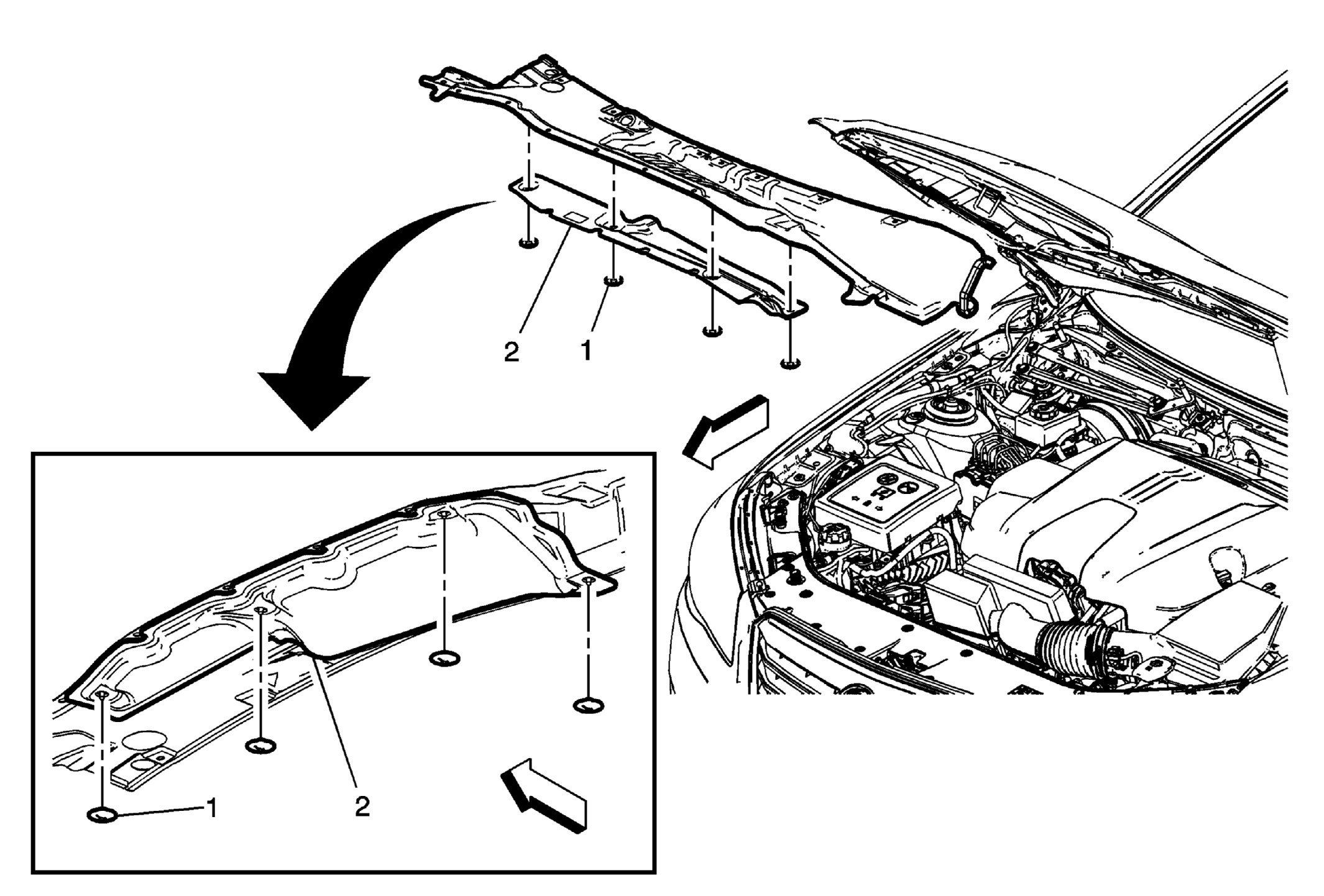

Fig 1: Plenum Upper Panel Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood assembly. Remove the air inlet grille panel support. Refer to. Air Inlet Grille Panel Replacement (Passenger Side) Air Inlet Grille Panel Replacement (Driver Side)
1	Plenum Upper Panel Insulator Retainer (Qty: 4)
2	Plenum Upper Panel Insulator Procedure Separate the plenum upper panel insulator from the air inlet grille panel support.

Callout

Component Name

Preliminary Procedure

Plenum Upper Panel Insulator Retainer (Qty: 4)

Plenum Upper Panel Insulator
Procedure
Separate the plenum upper panel insulator from the air inlet grille panel support.
