Forward Collision (UEU) and Lane Departure (UFL)

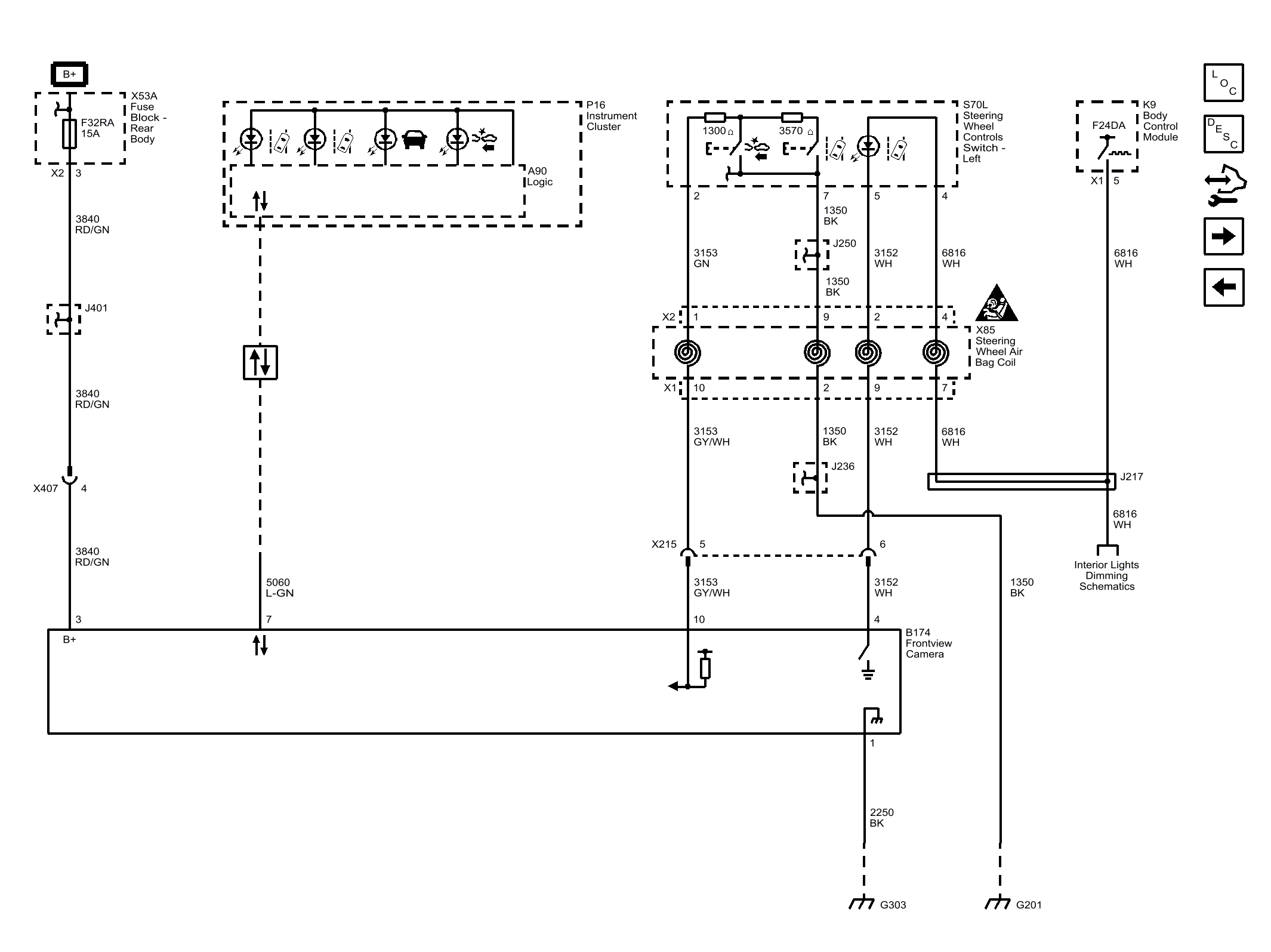

Fig 1: Forward Collision (UEU) and Lane Departure (UFL)

GM4535043

Courtesy of GENERAL MOTORS COMPANY
