Front Parking Assist Alarm Sensor Bracket Replacement (Grille)

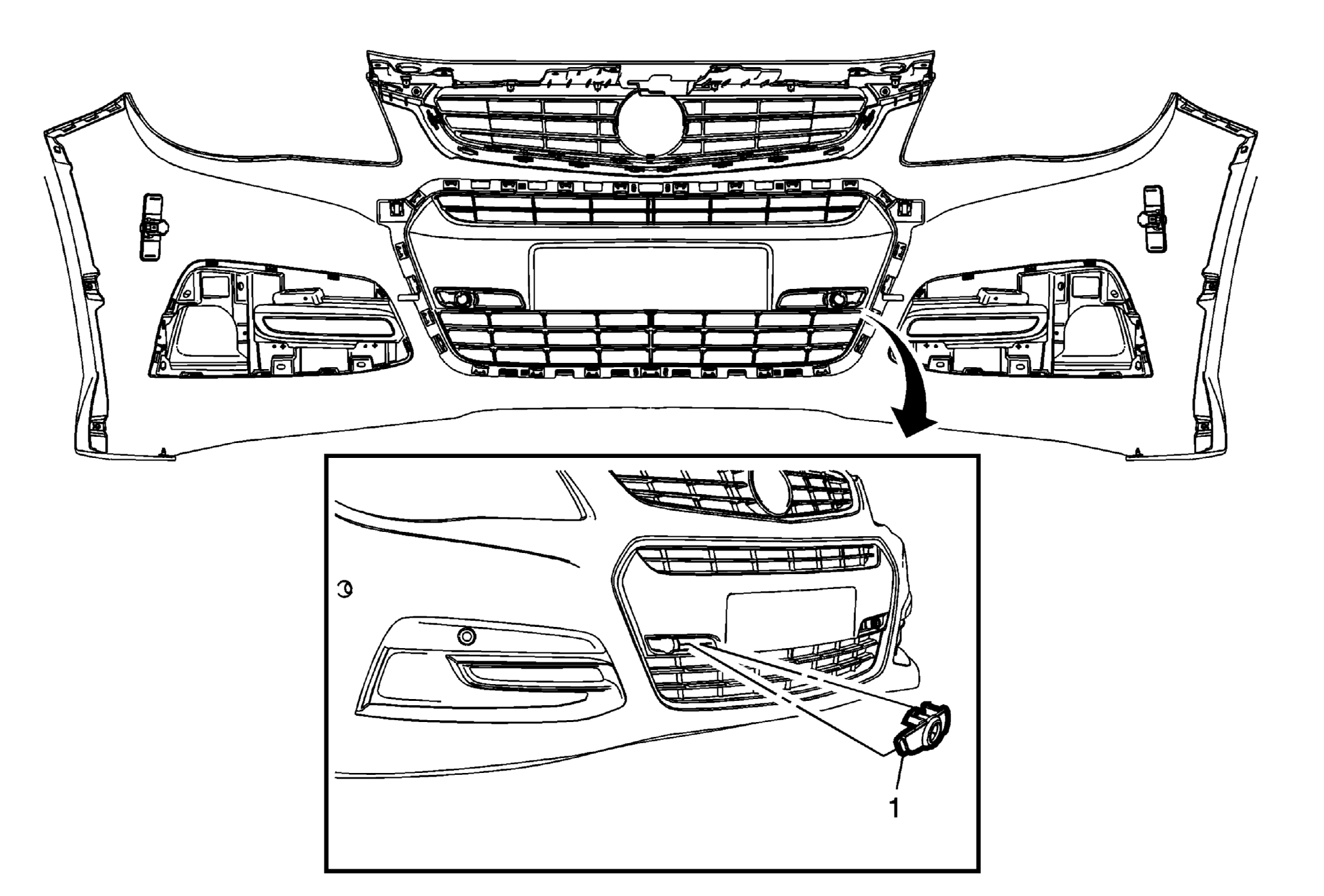

Fig 1: Front Parking Assist Alarm Sensor Bracket (Grille)
GM2911471Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Parking Assist Alarm Sensor Bracket Grill

Procedure

  1. Using a trim tool, release the retainer tab on the right side and pivot the bracket out away from the grill
  2. Disconnect the electrical connector.
  3. Remove the front parking assist sensor.
