K9 Body Control Module X2

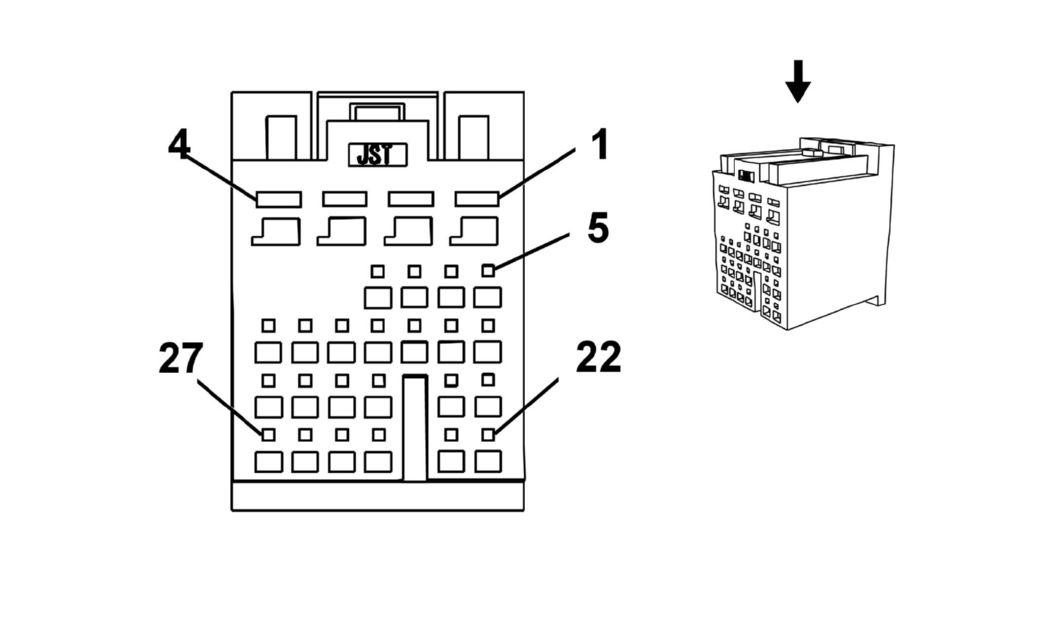

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575259	J-35616-64B (LT BU)	J-38125-12A	SNAC3-A021T-M0.64	Delphi 20	J	J
II	13575789	J-35616-35 (VT)	J-38125-12A	SNAC-A081T-M2.8	Delphi 20	A	D
III	13579954	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available
IV	13587507	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	C	A
V	13587507	J-35616-35 (VT)	J-38125-12A	SNAC-A061T-M2.8	Delphi 20	E	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	RD/WH	2740	Battery Positive Voltage	V	-
2	1.5	BK	1450	Ground	IV	-
3	0.75	RD/BN	2940	Battery Positive Voltage	V	-
4	2.5	RD/WH	4042	Battery Positive Voltage	II	-
5 - 6	-	-	-	Not Occupied	-	-
7	0.5	BU/YE	5361	Brake Apply Sensor Signal	I	-
8	0.35	YE	6817	LED Backlight Dimming Control	I	-
9	-	-	-	Not Occupied	-	-
10	0.13	WH	278	Ambient Light Sensor Signal	III	-
11	0.35	VT/YE	5526	Tap Up/Tap Down Switch Signal	I	MYC
12	-	-	-	Not Occupied	-	-
13	0.5	WH	5359	Brake Apply Sensor Control	I	-
14	0.13	BU	1788	Traction Control Switch Signal 1	III	-
15	0.35	BN/WH	781	Driver Door Lock Switch Unlock Signal	I	-
16	0.35	GY	3273	Remote Function Actuator Low Reference	I	-
17	0.35	BU/GN	5723	Ignition Mode Switch Mode Voltage	I	-
18	-	-	-	Not Occupied	-	-
19	0.35	BN/YE	780	Driver Door Lock Switch Lock Signal	I	-
20	-	-	-	Not Occupied	-	-
21	0.35	GN/GY	6135	Local Interconnect Network Serial Data Bus 4	I	-
22 - 24	-	-	-	Not Occupied	-	-
25	0.35	GY/WH	3272	Remote Function Actuator Control	I	-
26	0.35	GN/WH	111	Hazard Switch Signal	I	-
27	0.35	BU/WH	3275	Remote Function Actuator Receive Signal	I	-
