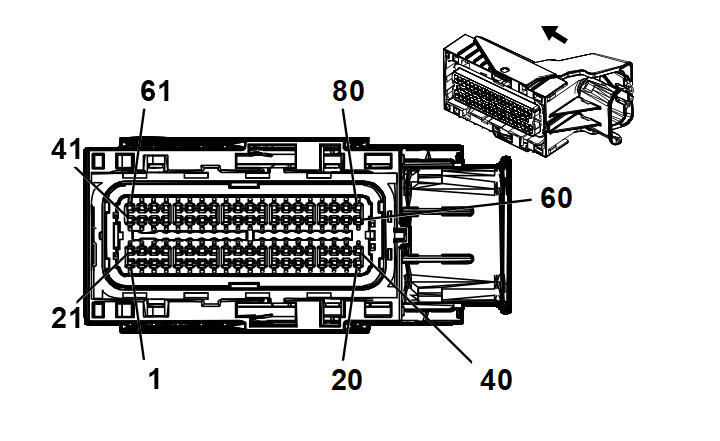

K20 Engine Control Module X2

Connector Part Information

Harness Type: Engine
OEM Connector: 12603599
Service Connector: 13579724
Description: 80-Way F 0.64 Series, Sealed (BK with GY Terminal Position Assurance)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19330179	J-35616-64B (LT BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	VT/BU	6270	Crankshaft 60X Sensor 5V Reference	I	-
3	0.5	BN/RD	2701	Throttle Position Sensor 5V Reference	I	-
4	-	-	-	Not Occupied	-	-
5	0.75	BN/WH	582	Throttle Actuator Control Close	I	-
6	0.75	YE	581	Throttle Actuator Control Open	I	-
7	-	-	-	Not Occupied	-	-
8	0.5	GN/BU	428	EVAP Canister Purge Solenoid Control	I	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.5	GN/BU	1652	Reverse Lockout Solenoid Control	I	LS3
12	0.5	GY/WH	3113	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor 1	I	-
13	0.5	GN/YE	3212	Heated Oxygen Sensor Heater Low Control Bank 2 Sensor 1	I	-
14 - 16	-	-	-	Not Occupied	-	-
17	0.75	BN/GY	878	Fuel Injector Control 8	I	-
18	0.75	BN/GN	845	Fuel Injector Control 5	I	-
19	0.75	BN/BU	846	Fuel Injector Control 6	I	-
20	0.75	GN/YE	1744	Fuel Injector Control 1	I	-
21	0.5	BU	410	Engine Coolant Temperature Sensor Signal	I	-
22	0.5	BK/BN	2761	Coolant Temperature Sensor Low Reference	I	-
23	0.5	BN/BU	357	Oil Temperature Sensor Signal	I	-
24	0.5	BK/BN	6273	Oil Temperature Sensor Low Reference	I	-
25	-	-	-	Not Occupied	-	-
26	0.5	VT/GY	496	Knock Sensor Signal 1	I	-
27	0.5	BK/YE	1716	Knock Sensor Low Reference 1	I	-
28	-	-	-	Not Occupied	-	-
29	0.5	WH/GY	1876	Knock Sensor Signal 2	I	-
30	0.5	BK/GY	2303	Knock Sensor Low Reference 2	I	-
31	-	-	-	Not Occupied	-	-
32	0.5	GY	23	Generator Field Duty Cycle Signal	I	-
33	0.5	BN/GN	1174	Oil Level Switch Signal	I	-
34	0.5	BK/VT	2755	Oil Pressure Sensor Low Reference	I	-
35	0.5	BK/BN	2752	Throttle Position Sensor Low Reference	I	-
36	-	-	-	Not Occupied	-	-
37	0.75	YE/WH	1745	Fuel Injector Control 2	I	-
38	0.75	BN/VT	1746	Fuel Injector Control 3	I	-
39	0.75	BN/YE	844	Fuel Injector Control 4	I	-
40	0.75	BN/VT	877	Fuel Injector Control 7	I	-
41	0.5	WH/RD	2705	Oil Pressure Sensor 5V Reference	I	-
42	-	-	-	Not Occupied	-	-
43	0.5	GY/RD	2704	Manifold Absolute Pressure Sensor 5V Reference	I	-
44	0.5	GY/BU	6259	Camshaft CAM W Control	I	-
45 - 49	-	-	-	Not Occupied	-	-
50	0.5	YE/BN	331	Oil Pressure Sensor Signal	I	-
51 - 52	-	-	-	Not Occupied	-	-
53	0.5	BK/GN	469	Manifold Absolute Pressure Sensor Low Reference	I	-
54 - 55	-	-	-	Not Occupied	-	-
56	0.5	WH/BK	3111	Heated Oxygen Sensor Low Signal Bank 1 Sensor 1	I	-
57	0.5	VT/GY	3110	Heated Oxygen Sensor High Signal Bank 1 Sensor 1	I	-
58	0.5	GN/WH	432	Manifold Absolute Pressure Sensor Signal	I	-
59	0.5	VT/WH	3210	Heated Oxygen Sensor High Signal Bank 2 Sensor 1	I	-
60	0.5	YE/WH	3211	Heated Oxygen Sensor Low Signal Bank 2 Sensor 1	I	-
61	0.5	BN	25	Charge Indicator Control	I	-
62	-	-	-	Not Occupied	-	-
63	0.5	BN/BU	486	Throttle Position Sensor Signal 2	I	-
64	0.5	YE/VT	6265	Camshaft CAM W Signal	I	-
65	0.5	BN/GN	485	Throttle Position Sensor Signal 1	I	-
66	0.5	GN/BK	6266	Camshaft CAM W Ground	I	-
67	-	-	-	Not Occupied	-	-
68	0.5	GN	6271	Crankshaft 60X Sensor Signal	I	-
69	0.5	BK/VT	6272	Crankshaft 60X Sensor Low Reference	I	-
70	0.5	BU/VT	2121	Ignition Control 1	I	-
71	0.5	VT/WH	2128	Ignition Control 8	I	-
72	0.5	GN/GY	2127	Ignition Control 7	I	-
73	0.5	BU/WH	2122	Ignition Control 2	I	LS3
74	0.5	BN/BU	2126	Ignition Control 6	I	-
75	0.5	BU/GY	2125	Ignition Control 5	I	-
76	0.5	YE/BU	2124	Ignition Control 4	I	-
77	0.5	GN/BU	2123	Ignition Control 3	I	-
78	0.5	BK/BU	2129	Ignition Control Low Reference Bank 1	I	-
79	0.5	BK/GY	2130	Ignition Control Low Reference Bank 2	I	-
80	-	-	-	Not Occupied	-	-
