K17 Electronic Brake Control Module

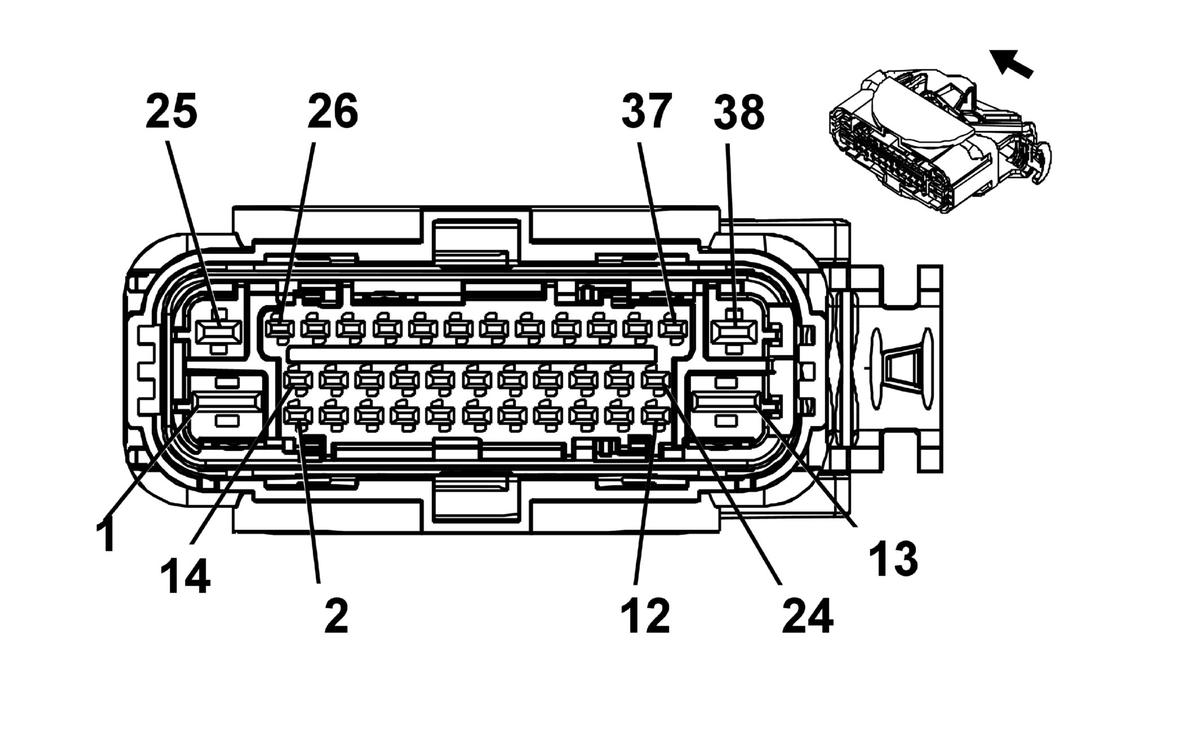

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-35 (VT)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	Not Required	J-35616-40 (BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	4	RD/YE	442	Battery Positive Voltage	III	-
2	0.35	WH/BK	381	Vehicle Speed Signal	I	-
3	-	-	-	Not Occupied	-	-
4	0.35	YE	872	Wheel Speed Sensor Signal Right Front	I	-
5 - 7	-	-	-	Not Occupied	-	-
8	0.35	GY	830	Wheel Speed Sensor Signal Left Front	I	-
9 - 11	-	-	-	Not Occupied	-	-
12	0.35	GN/GY	333	Brake Fluid Level Sensor Signal	I	-
13	4	BK	850	Ground	III	-
14	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
15	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	I	-
16	0.35	GY/BN	7065	Wheel Speed Sensor Control Right Front	I	-
17	0.5	GY/YE	7128	Wheel Speed Sensor Control Right Rear	I	-
18	0.5	BU	884	Wheel Speed Sensor Signal Left Rear	I	-
19	0.35	GY/WH	7064	Wheel Speed Sensor Control Left Front	I	-
20	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
21 - 22	-	-	-	Not Occupied	-	-
23	0.35	BU/BK	9362	-	I	-
24	-	-	-	Not Occupied	-	-
25	2.5	RD/YE	3740	Battery Positive Voltage	II	-
26	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
27	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	I	-
28	0.5	WH/BU	5986	Serial Data Communication Enable	I	-
29	0.5	VT	882	Wheel Speed Sensor Signal Right Rear	I	-
30	-	-	-	Not Occupied	-	-
31	0.5	GY/BK	7127	Wheel Speed Sensor Control Left Rear	I	-
32	-	-	-	Not Occupied	-	-
33	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
34	0.35	BU/GY	9361	-	I	-
35	0.5	GN/BN	2087	Combined Vehicle Inertial Sensor Supply Voltage	I	-
36 - 37	-	-	-	Not Occupied	-	-
38	2.5	BK	850	Ground	II	-
