Right Front of the Passenger Compartment Components

Right Front of the Passenger Compartment Components

Items
K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3
1: B63R Side Impact Sensor - Right B63R Side Impact Sensor - Right
2: F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
3: F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right

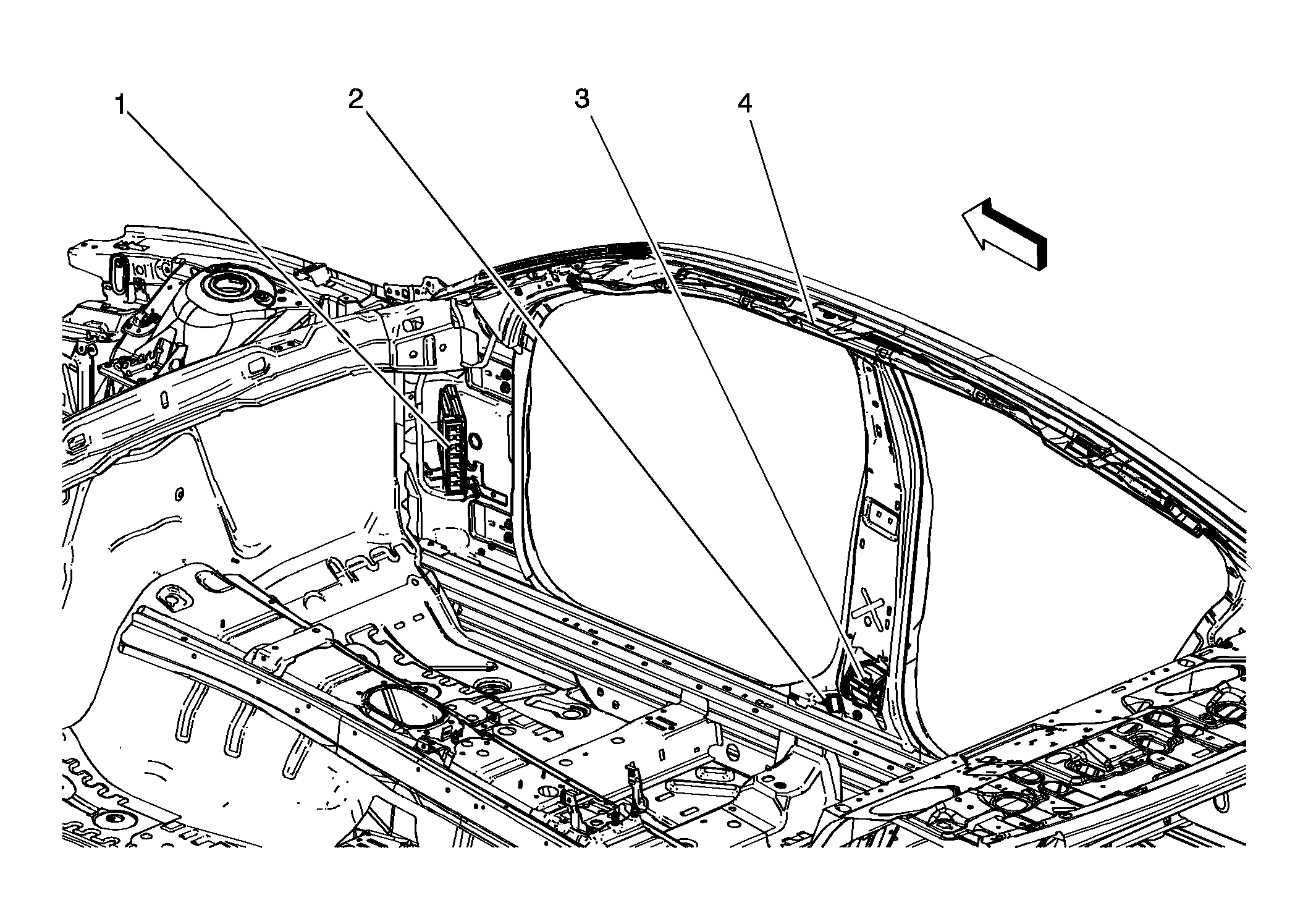

Fig 1: Right Front of the Passenger Compartment Components
GM3600203Courtesy of GENERAL MOTORS COMPANY
