Module Power, Ground, Serial Data, and Subsystem References (1 of 4)

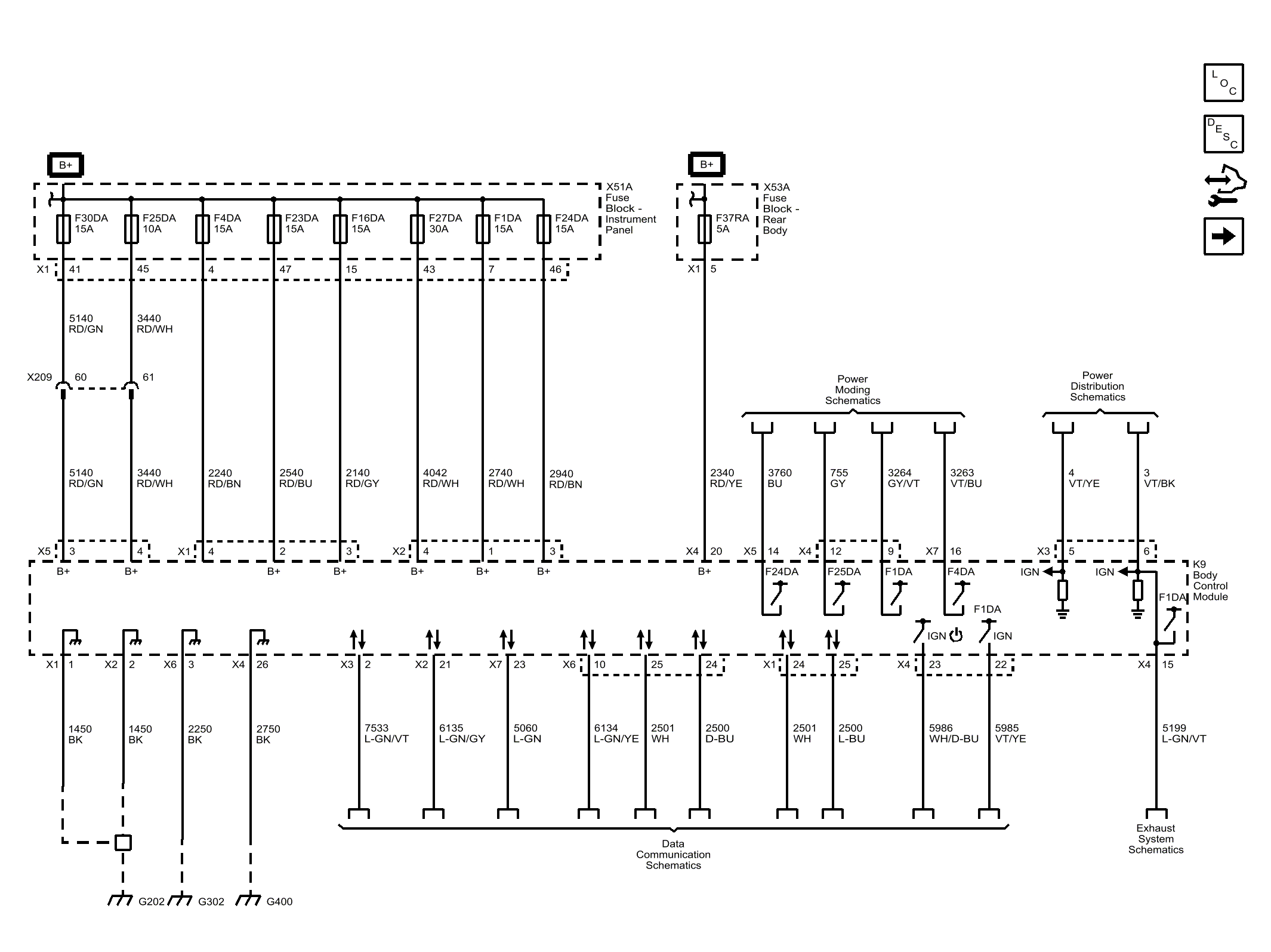

Fig 1: Module Power, Ground, Serial Data, and Subsystem References (1 of 4)

GM4534388

Courtesy of GENERAL MOTORS COMPANY
