Front Object Alarm Sensor Wiring Harness Replacement

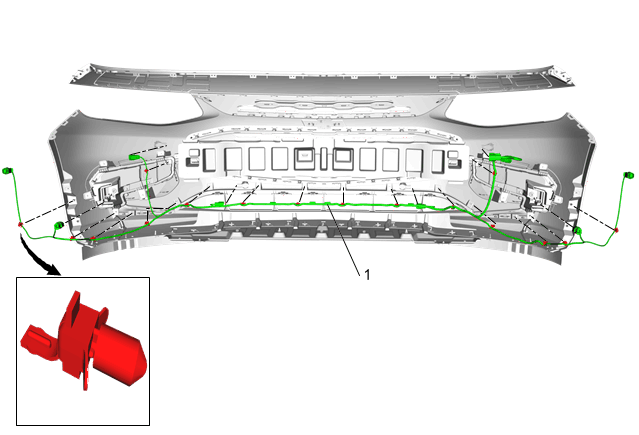

Fig 1: Front Object Alarm Sensor Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement .
1	Front Object Alarm Sensor Wiring Harness Procedure Disconnect all electrical connectors. Using a suitable tool, release the front object alarm sensor wiring harness and retainers from the front fascia.

Callout

Component Name

Front Object Alarm Sensor Wiring Harness

Procedure

Disconnect all electrical connectors.
Using a suitable tool, release the front object alarm sensor wiring harness and retainers from the front fascia.
