Forward Range Radar Sensor Replacement

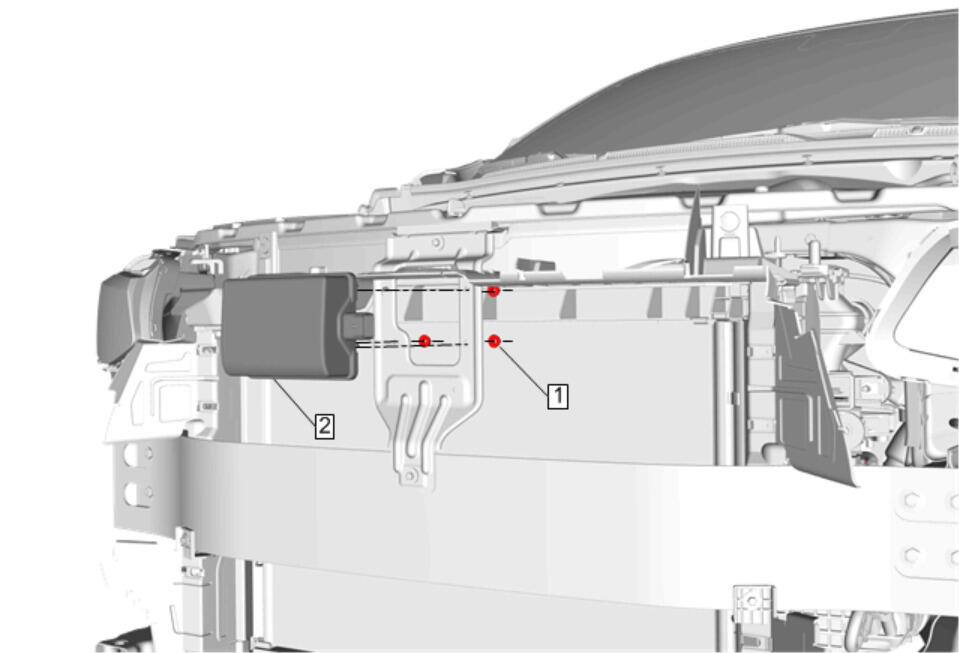

Fig 1: Forward Range Radar Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Forward Range Radar Sensor Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Forward Range Radar Sensor Fastener [3x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

Procedure
