Rear Camber Adjustment

Rear Suspension Lower Control Arm Inner Nut (1)» Remove - Lower Control Arm Replacement

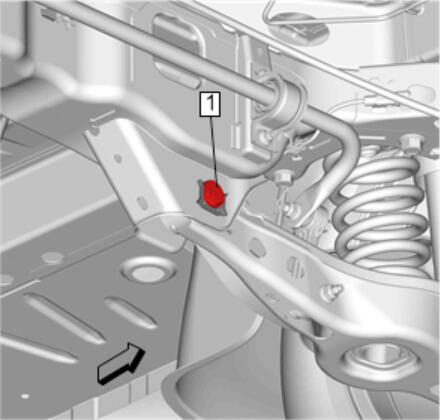

Fig 1: Rear Suspension Upper Inner Nut
Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Lower Control Arm Adjust Bolt (1)» Remove - Lower Control Arm Replacement

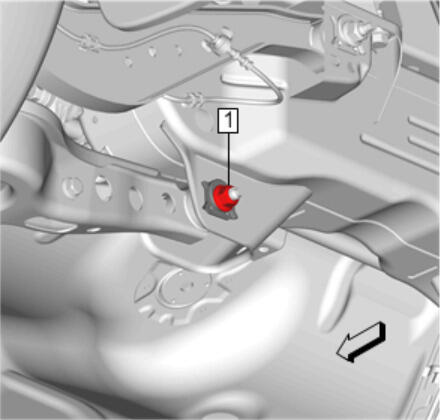

Fig 2: Rear Suspension Lower Control Arm Adjust Bolt
Courtesy of GENERAL MOTORS COMPANY
Rear Suspension Lower Control Arm Adjust Bolt» Install - Lower Control Arm Replacement
Rear Suspension Lower Control Arm Inner Nut» Install. - Lower Control Arm Replacement Do not fully tighten at this time.
Rotate the rear suspension lower control arm adjust bolt (1) until the correct camber measurement is achieved. Refer to Wheel Alignment Measurement

Fig 3: Rear Suspension Lower Control Arm Adjust Bolt
Courtesy of GENERAL MOTORS COMPANY

NOTE: Tighten the nut and bolt enough to maintain the adjustment. Verify the camber reading prior to tightening the bolt to its final torque.
Hold the rear suspension control arm adjust bolt and tighten the rear suspension upper inner nut (1). Lower Control Arm Replacement
CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

CAUTION: Refer to Fastener Caution .

Fig 4: Rear Suspension Upper Inner Nut
Courtesy of GENERAL MOTORS COMPANY
Check the alignment specification and readjust if necessary. Refer to Wheel Alignment Specifications
