Rear Camber Adjustment

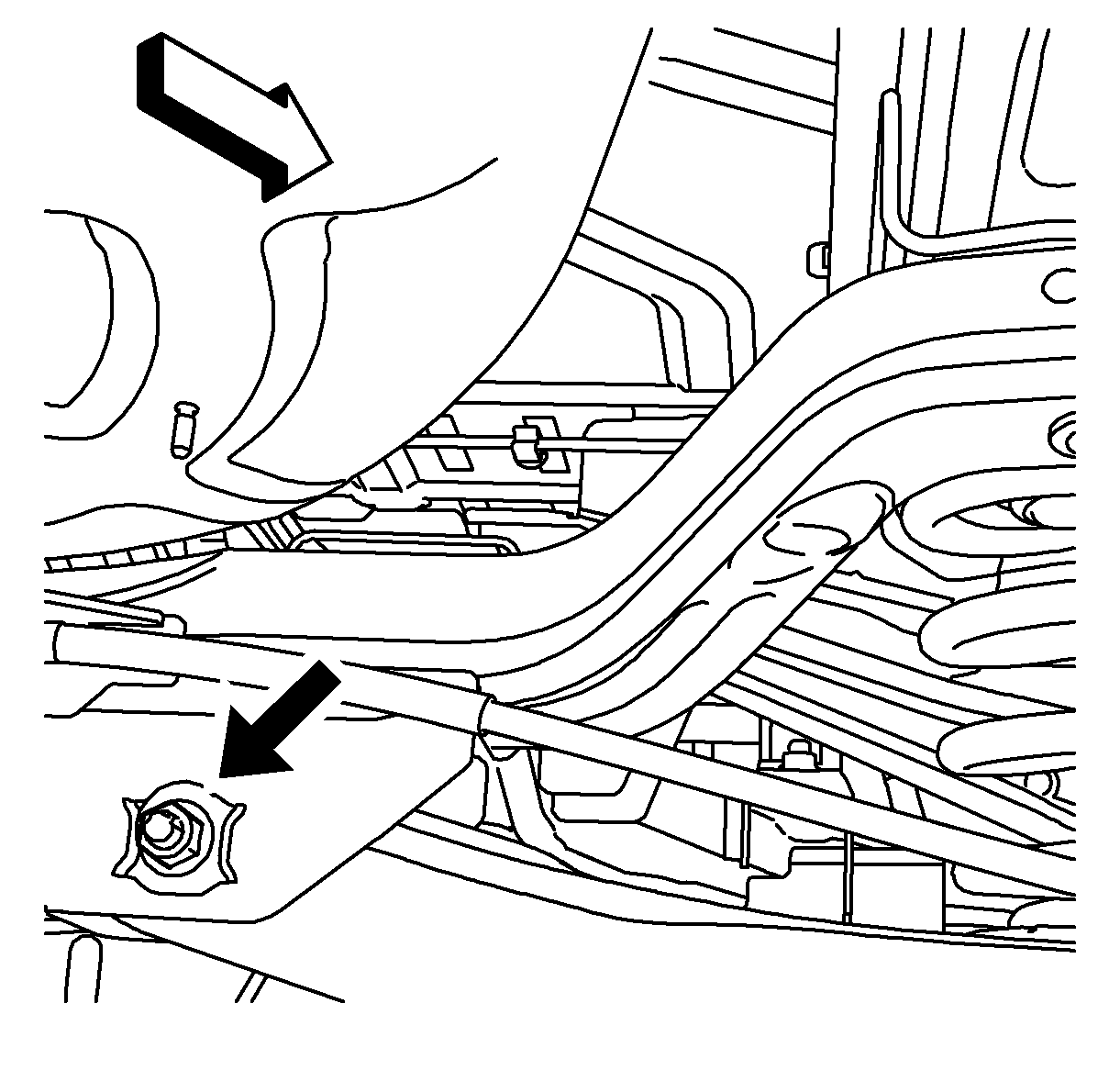

- If rear camber adjustment is necessary, remove the lower control arm-to frame nut and bolt. DISCARD the bolt.
- Loosen the lower control arm-to-frame nut enough to allow movement.
- Rotate the lower control arm-to-frame bolt in the direction necessary to the correct the camber measurement. Wheel Alignment Measurement
- Snug the lower control arm-to-frame nut but do not tighten at this time.
- Re-inspect the rear camber specifications and adjust as necessary. Wheel Alignment Specifications
- Hold the NEW lower control arm-to-frame bolt and tighten the lower control arm-to-frame nut. Lower Control Arm Replacement
- Repeat the procedure for the opposite rear wheel.
NOTE:
The frame of the vehicle is slotted, turning the cam nut will move the camber in to the designated location.
