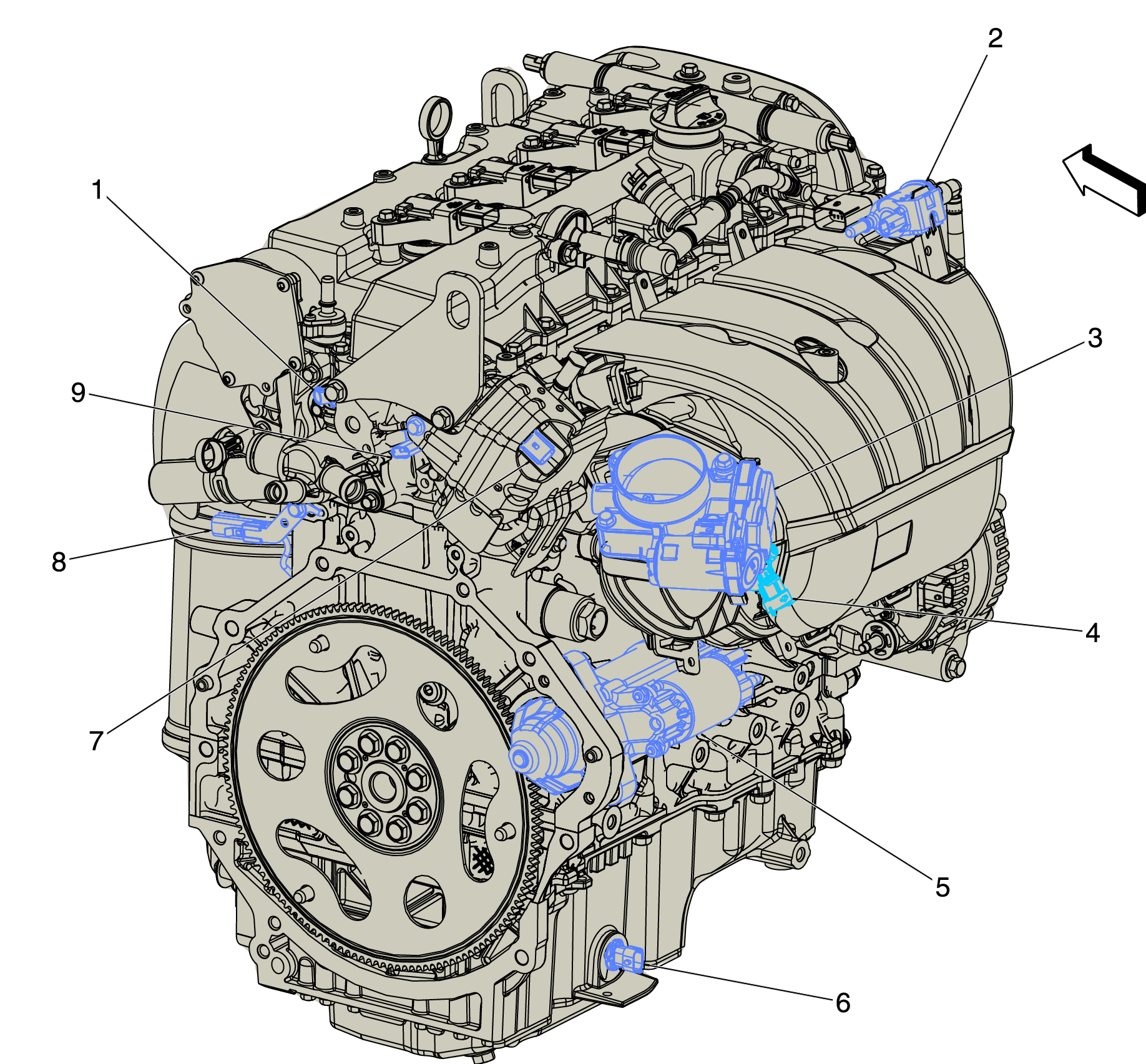

Rear of Engine Components (LCV)
Rear of Engine Components (LCV)
| Items |
|---|
| 1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LCV) |
| 2: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LCV) |
| 3: Q38 Throttle Body Q38 Throttle Body (LCV)Q38 Throttle Body (LFX/LCV) |
| 4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 5: M64 Starter Motor M64 Starter Motor X1 (LCV)M64 Starter Motor X2 |
| 6: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LCV) |
| 7: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LCV) |
| 8: Q44 Engine Oil Pressure Control Solenoid Valve (LCV) Q44 Engine Oil Pressure Control Solenoid Valve |
| 9: B23F Camshaft Position Sensor - Intake (LCV) B23F Camshaft Position Sensor - Intake (LCV) |
