Linear Interconnect Network (LIN) Bus 5, 8, 9, 10, 11, 12

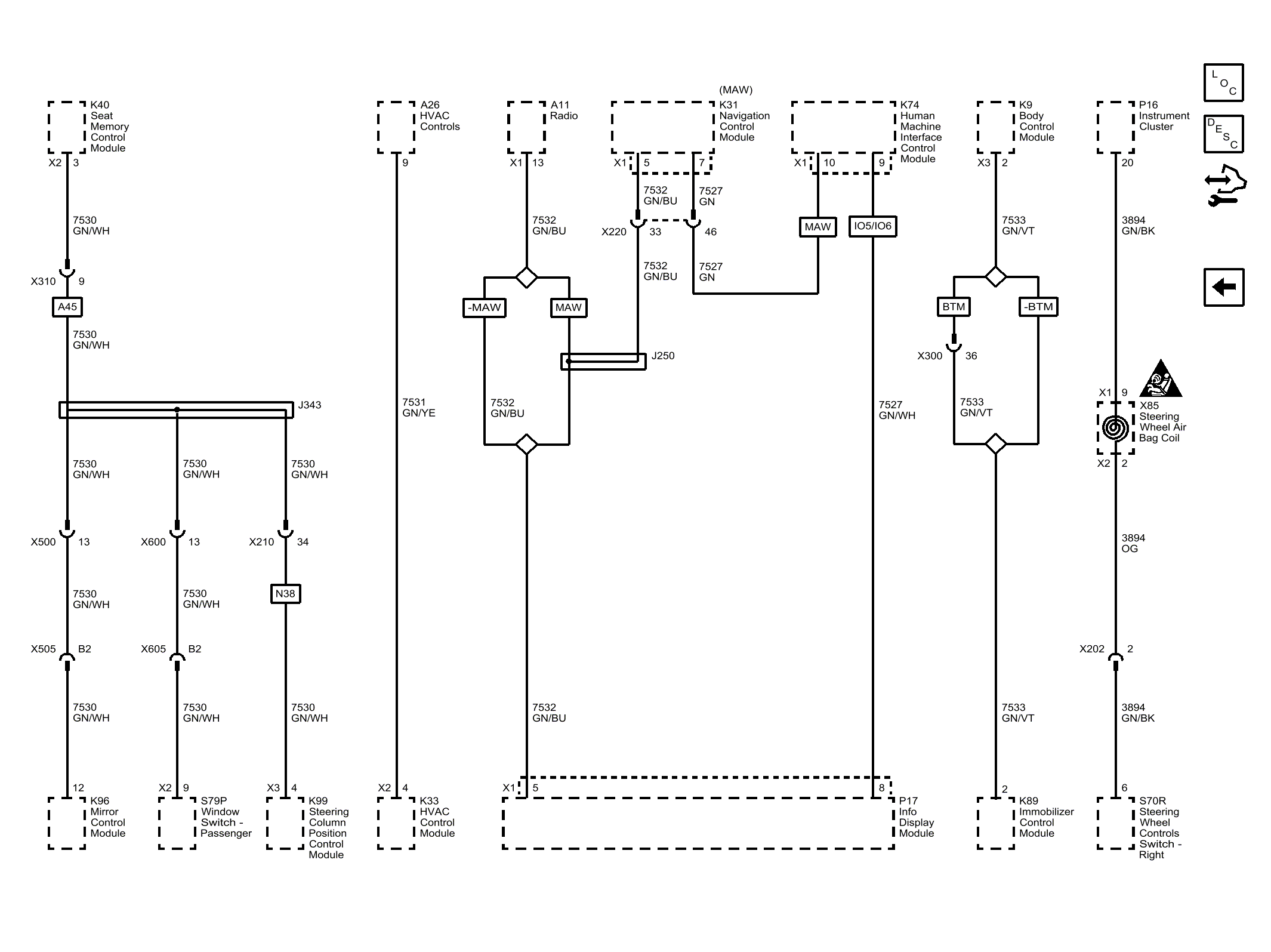

Fig 1: Linear Interconnect Network (LIN) Bus 5, 8, 9, 10, 11, 12
GM4356005Courtesy of GENERAL MOTORS COMPANY
