Installation Procedure

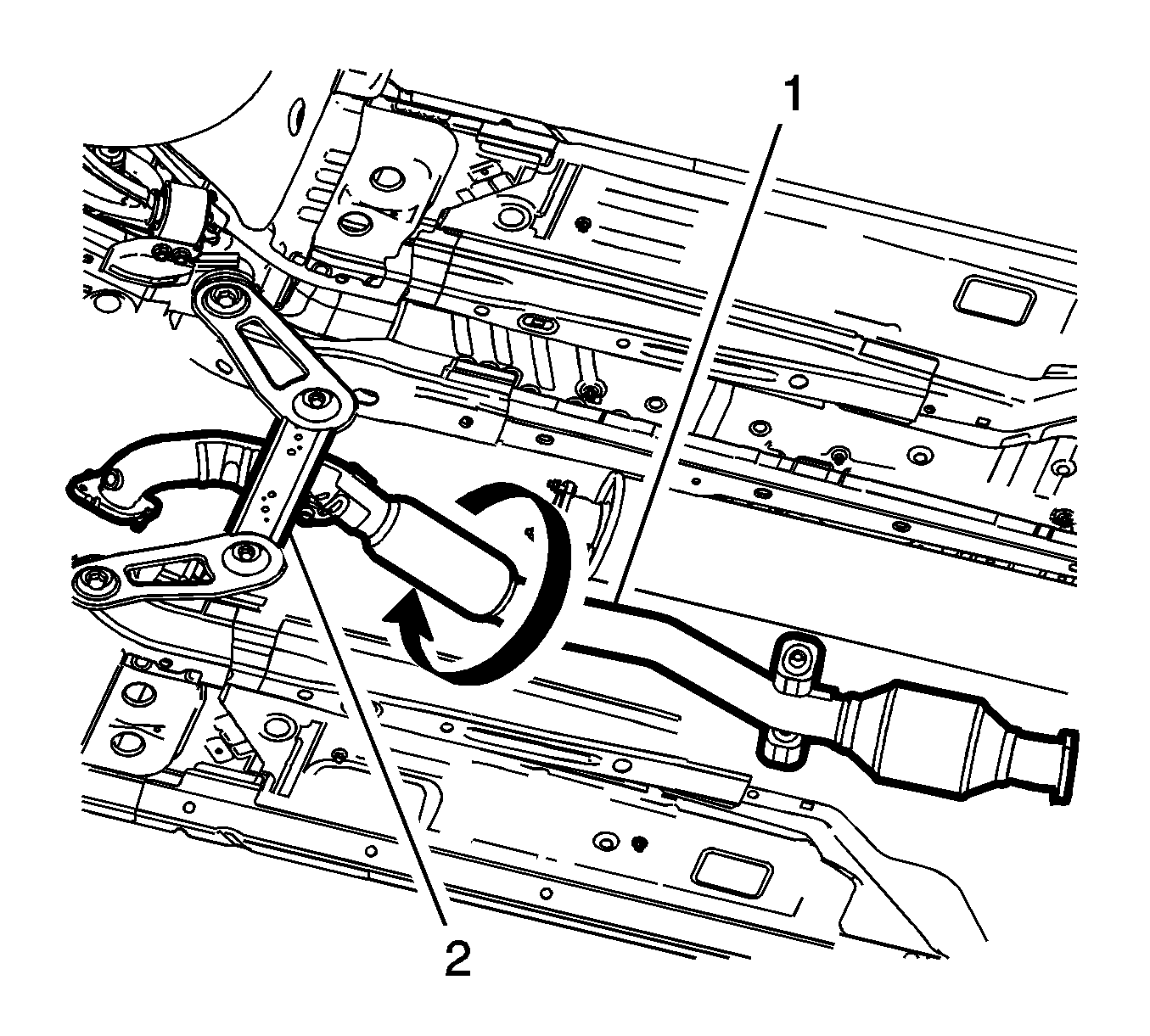

Fig 1: Exhaust Front Pipe Hanger Bracket

Courtesy of GENERAL MOTORS COMPANY

Install the exhaust front pipe (1) over the exhaust front pipe hanger bracket (2).

Fig 2: Exhaust Front Pipe, Catalytic Converter And Gasket

Courtesy of GENERAL MOTORS COMPANY

Position the exhaust front pipe into the catalytic converter with a NEW exhaust gasket (2).

Fig 3: Exhaust Front Pipe And Fasteners

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the exhaust front pipe retainer fastener (2) and tighten to 22 N.m (16 lb ft).
Install the catalytic converter fasteners (1) and tighten to 28 N.m (21 lb ft).

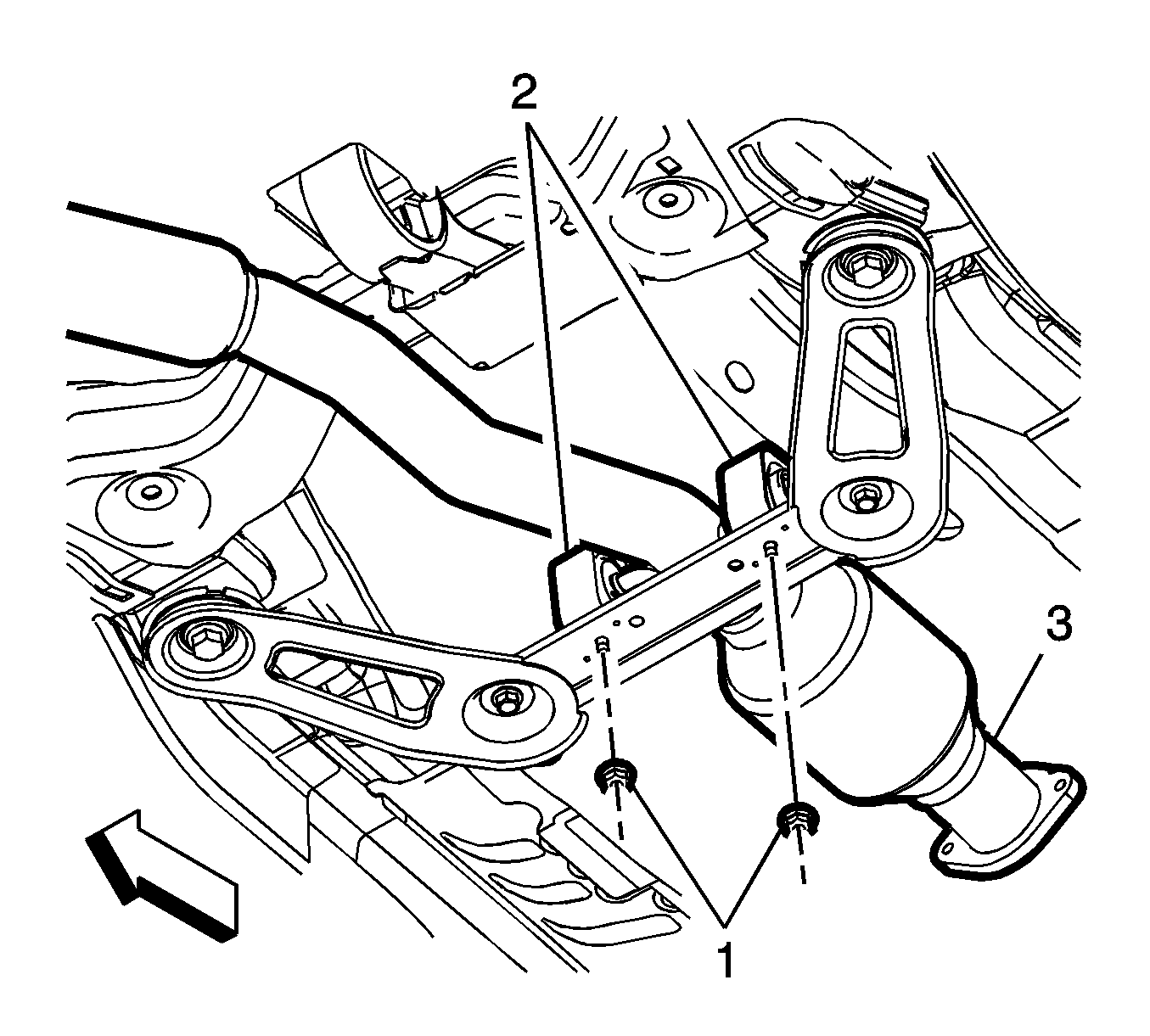

Fig 4: Fasteners And Exhaust Isolators

Courtesy of GENERAL MOTORS COMPANY

Install the exhaust isolators (2) into the exhaust front pipe hanger bracket and tighten the fasteners (1) to 22 N.m (16 lb ft).

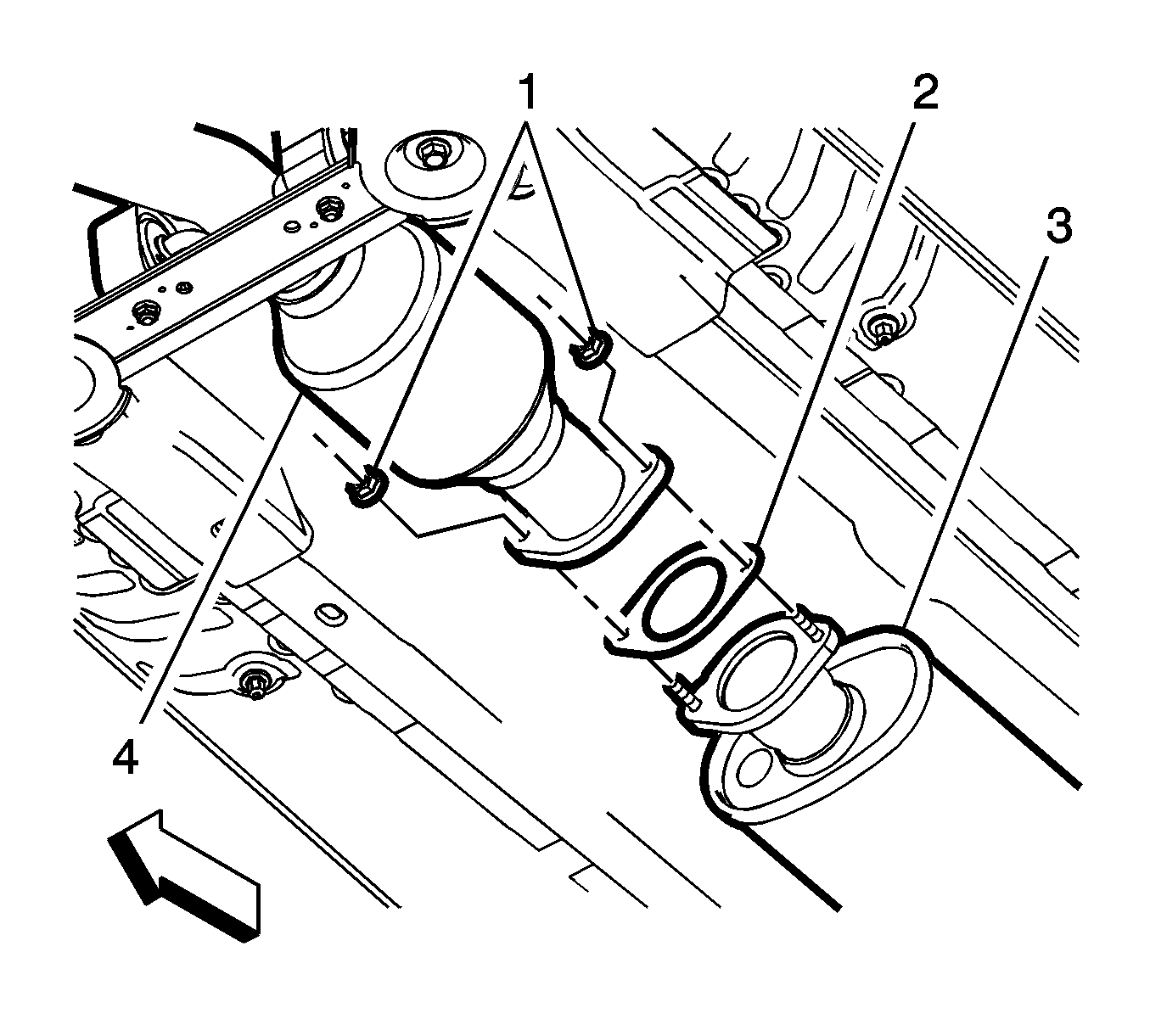

Fig 5: Exhaust Muffler, Exhaust Front Pipe, Fasteners And Gasket

Courtesy of GENERAL MOTORS COMPANY

Install the exhaust front pipe (4) to the exhaust muffler (3) with a NEW gasket (2) and tighten the fasteners (1) to 18 N.m (13 lb ft).
Install the heated oxygen sensor - position 2 to the exhaust front pipe. Refer to Heated Oxygen Sensor Replacement - Sensor 2 .
Start the engine and check for exhaust leaks.
