Inside Rearview Mirror Replacement

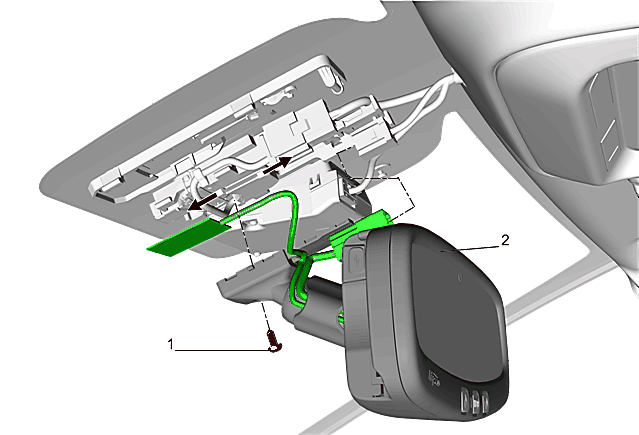

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Inside Rearview Mirror Wiring Harness Lower Cover. Refer to Inside Rearview Mirror Wiring Harness Lower Cover Replacement
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Procedure Adjust the mirror to the full upward position. Disconnect the electrical connector. Loosen the set screw located at the base of the mirror. Slide the mirror off of the rearview mirror button. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror

Callout

Component Name

Preliminary Procedure
Remove Inside Rearview Mirror Wiring Harness Lower Cover. Refer to Inside Rearview Mirror Wiring Harness Lower Cover Replacement

Inside Rearview Mirror Screw

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror
