Linear Interconnect Network (LIN) Bus 1, 2, 3, 4

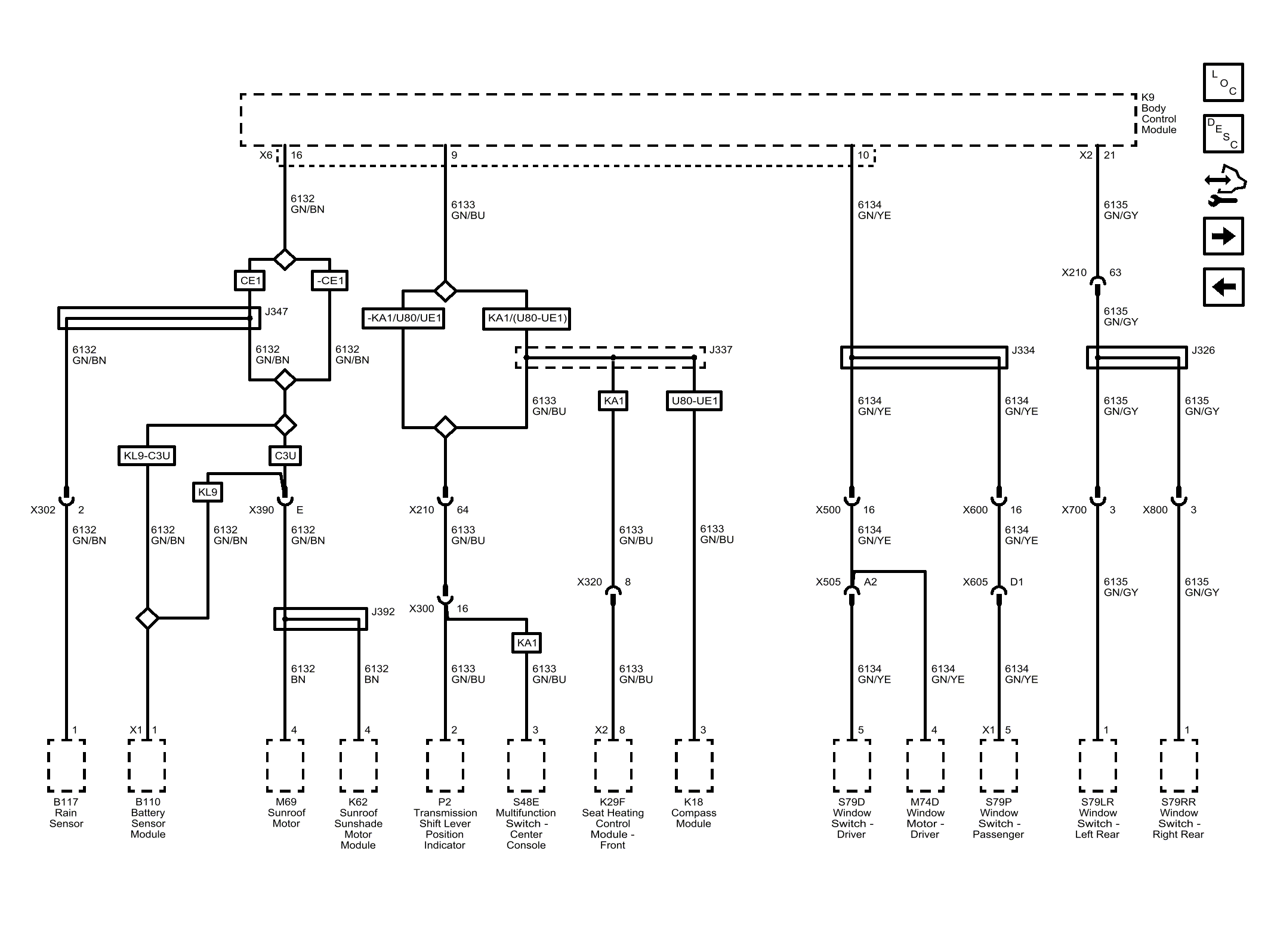

Fig 1: Linear Interconnect Network (LIN) Bus 1, 2, 3, 4

GM4356003

Courtesy of GENERAL MOTORS COMPANY
