Throttle Body Assembly Replacement

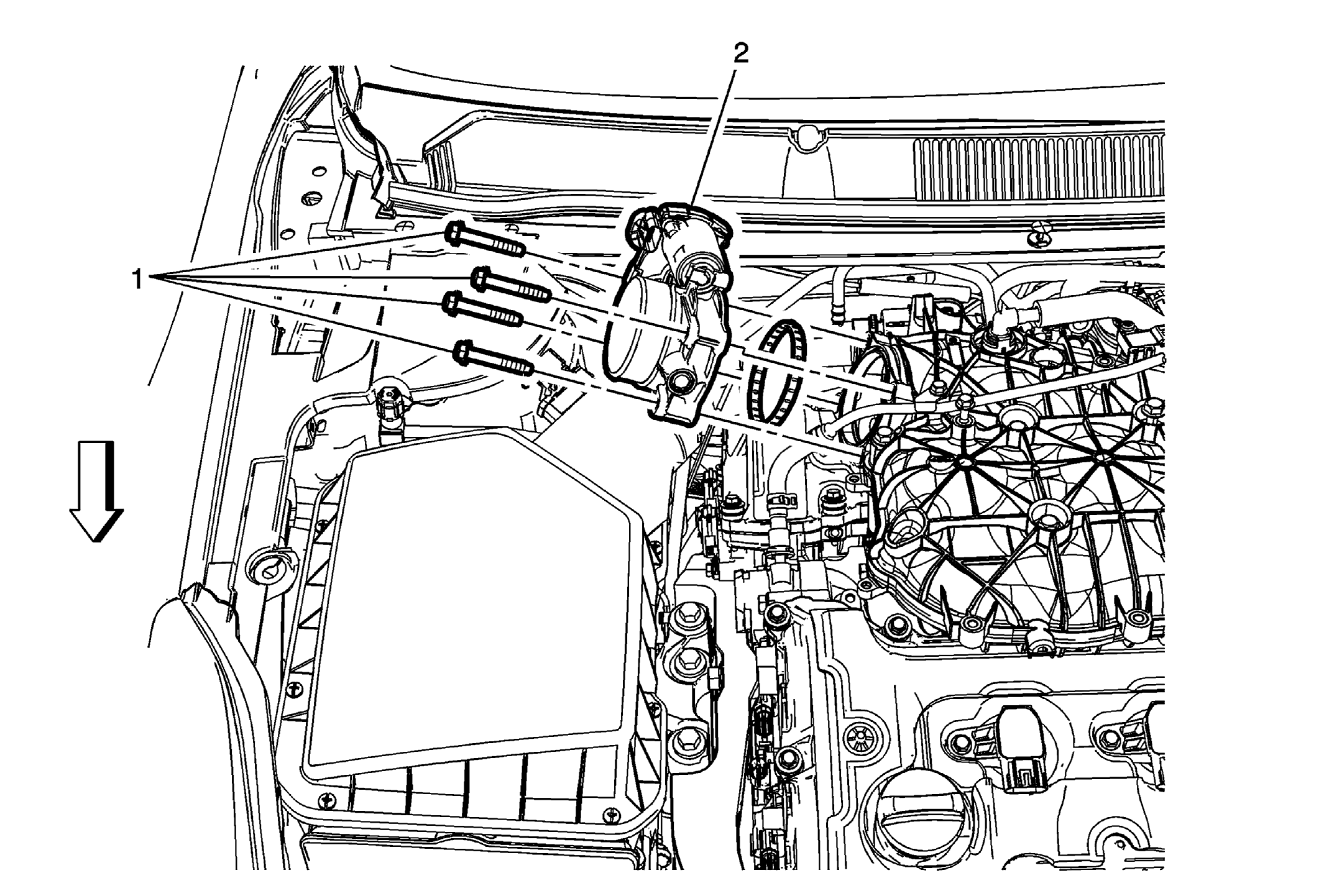

Fig 1: Throttle Body Assembly (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement (LFX) Air Cleaner Outlet Duct Replacement
1	Throttle Body Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the electrical connector. Install a NEW throttle body gasket. Perform the throttle or idle learn. Throttle or Idle Learn

Callout

Component Name

Preliminary Procedures

Throttle Body Bolt (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Throttle Body

Procedure
