Installation Procedure

  1. Install Air Cleaner Outlet Duct

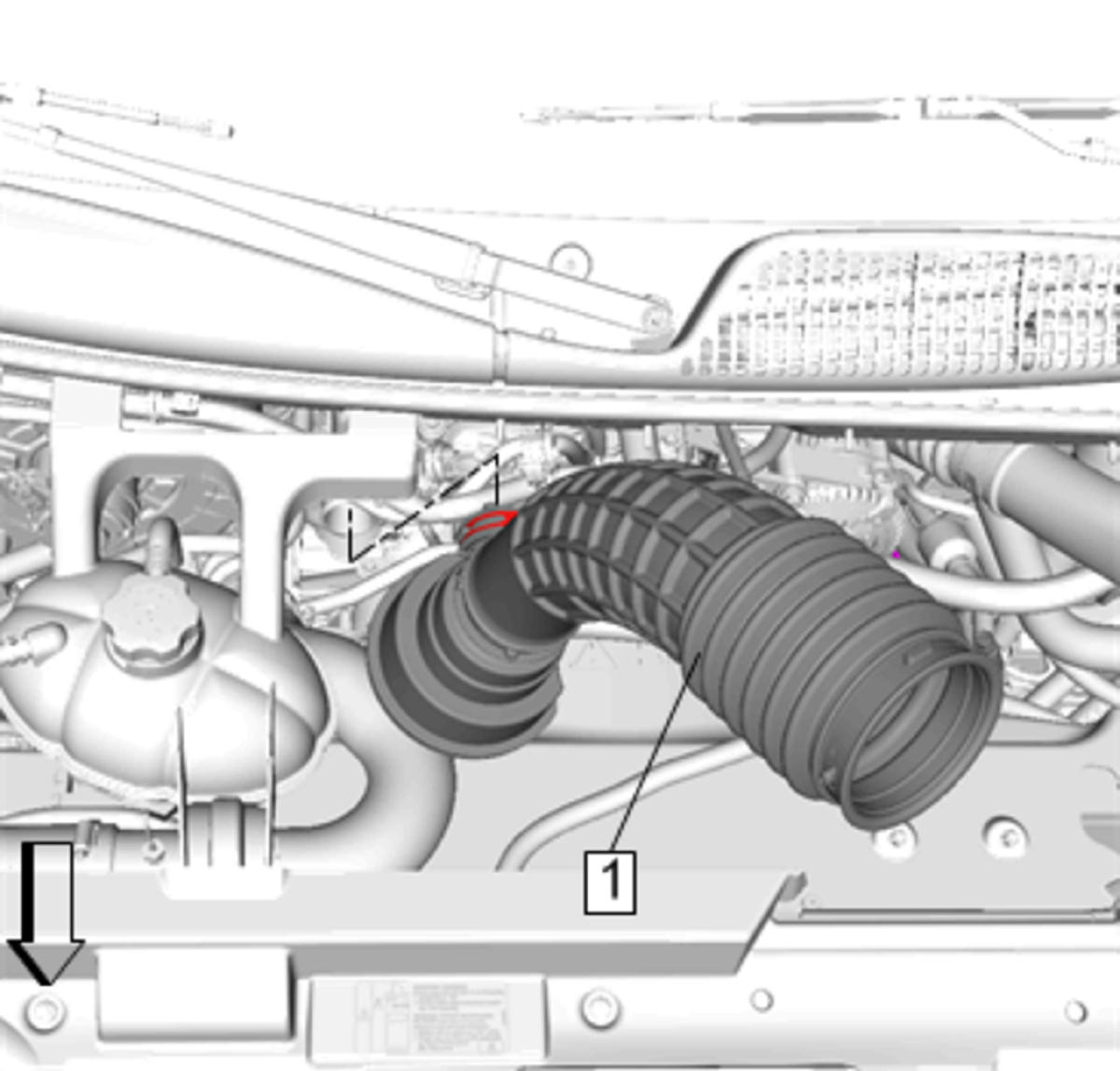

    Fig 1: Air Cleaner Outlet Duct
    GM4603671Courtesy of GENERAL MOTORS COMPANY
  2. Install Air Cleaner Outlet Duct

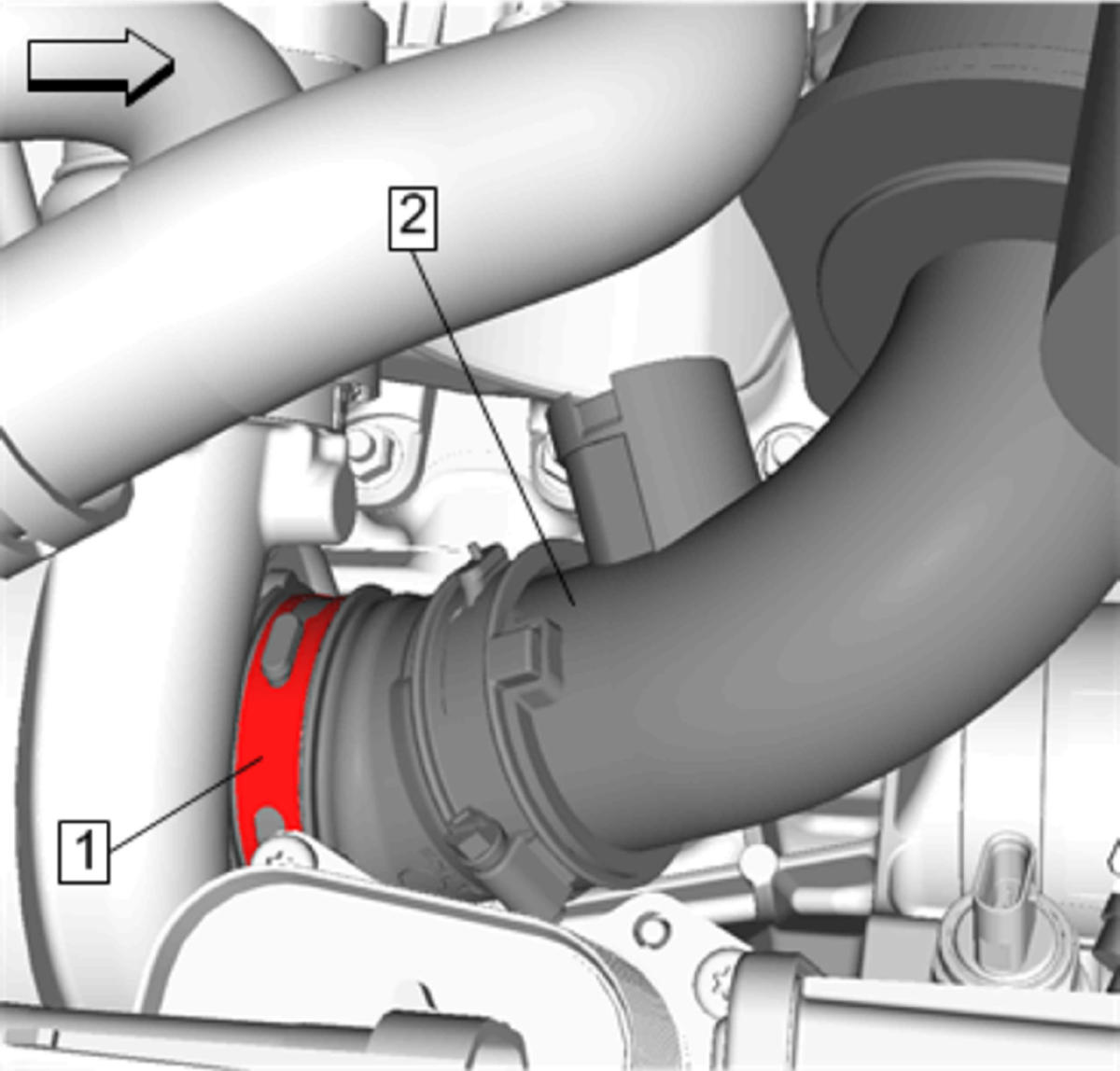

    Fig 2: Clamp And Duct
    GM4603666Courtesy of GENERAL MOTORS COMPANY
  3. Install Air Cleaner Outlet Duct Clamp and tighten 5 N.m. (44 lb in)
    CAUTION:

    Refer to Fastener Caution .

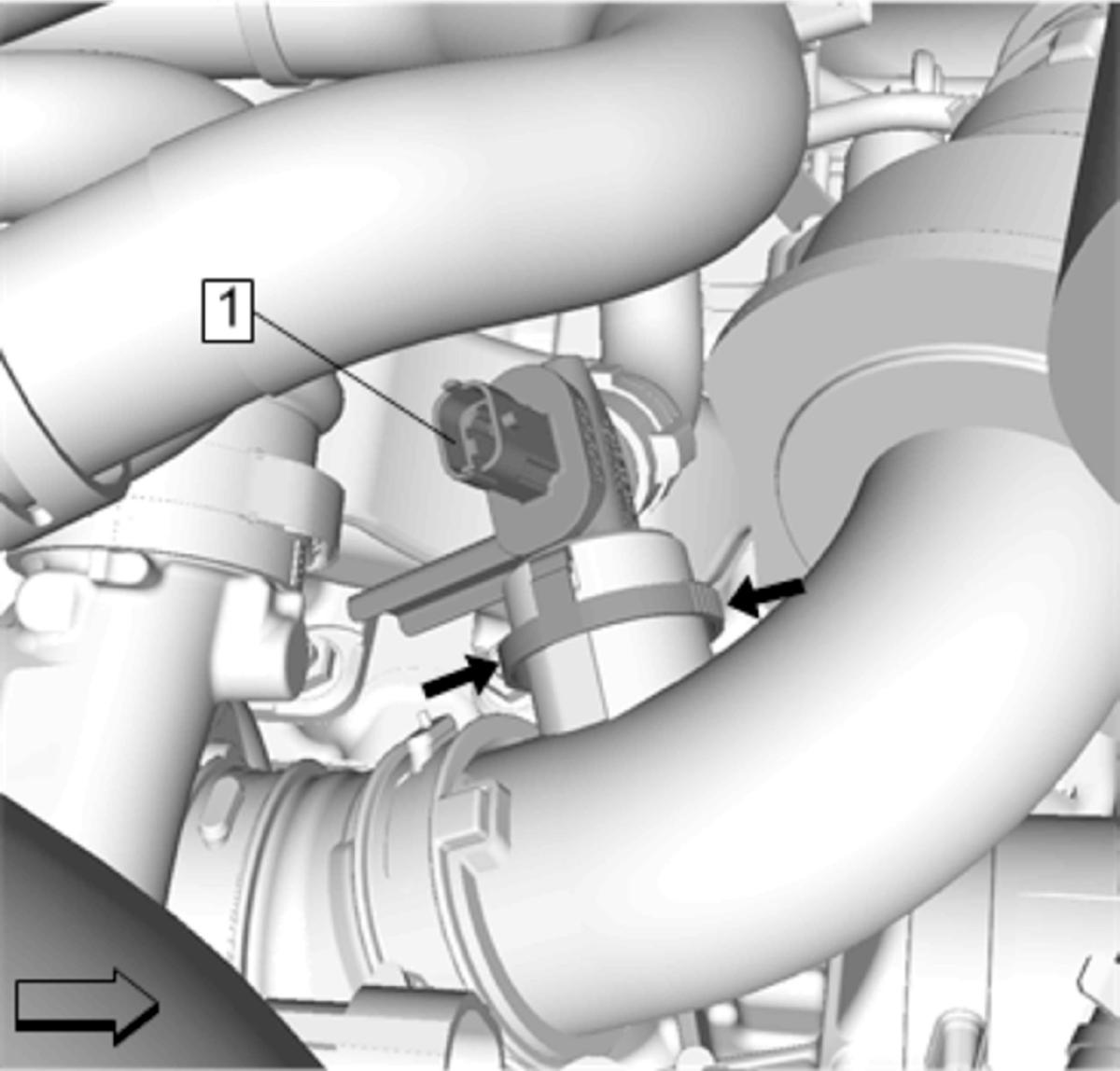

  4. Install Positive Crankcase Ventilation Heater
    GM4603663Courtesy of
  5. Install Wheelhouse Splash Shield - Right Side. Refer to Wheelhouse Splash Shield Replacement (Right Side) .
  6. Install Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement
