Installation Procedure

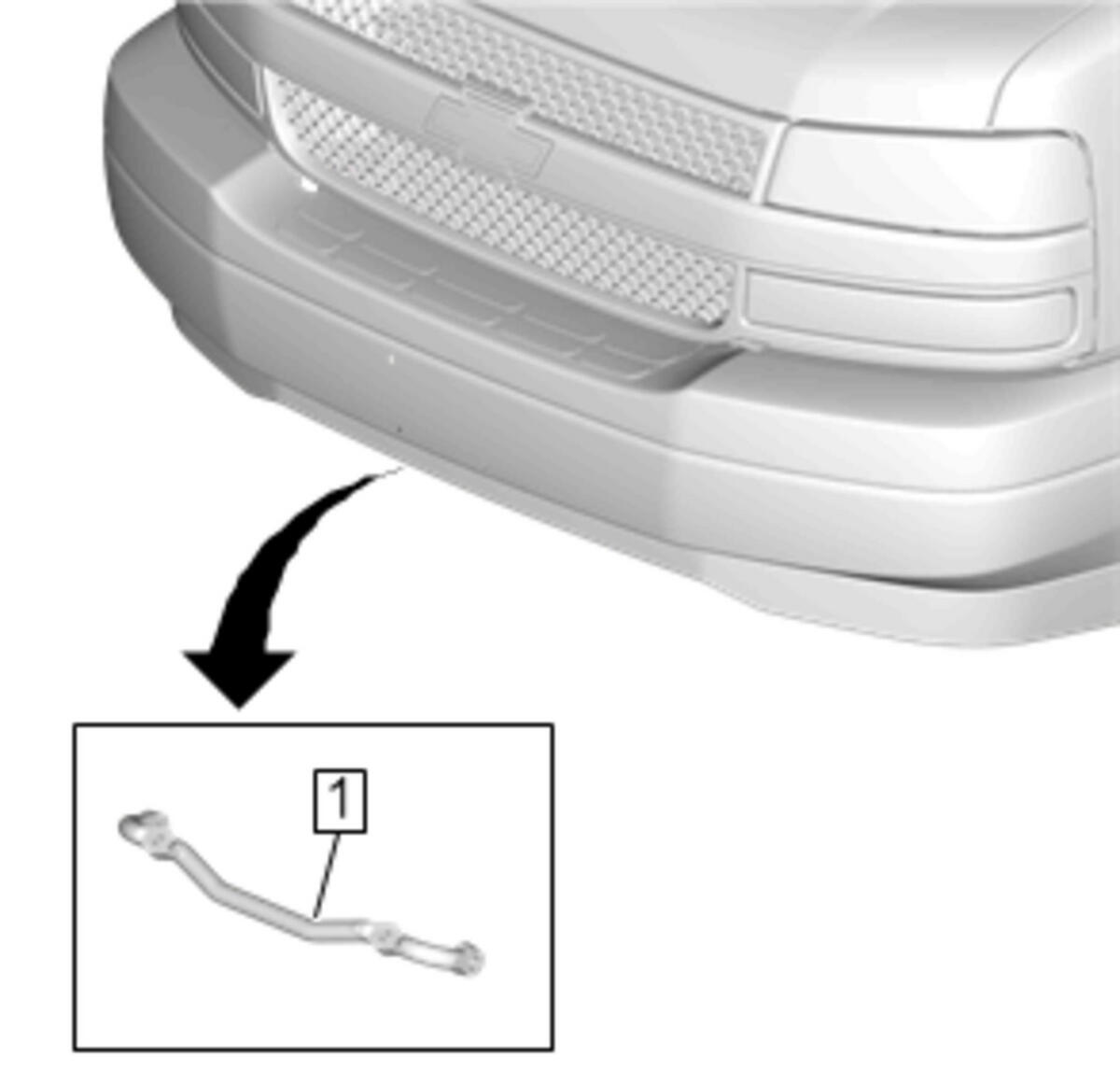

- Position the steering linkage relay rod (1) on the vehicle.

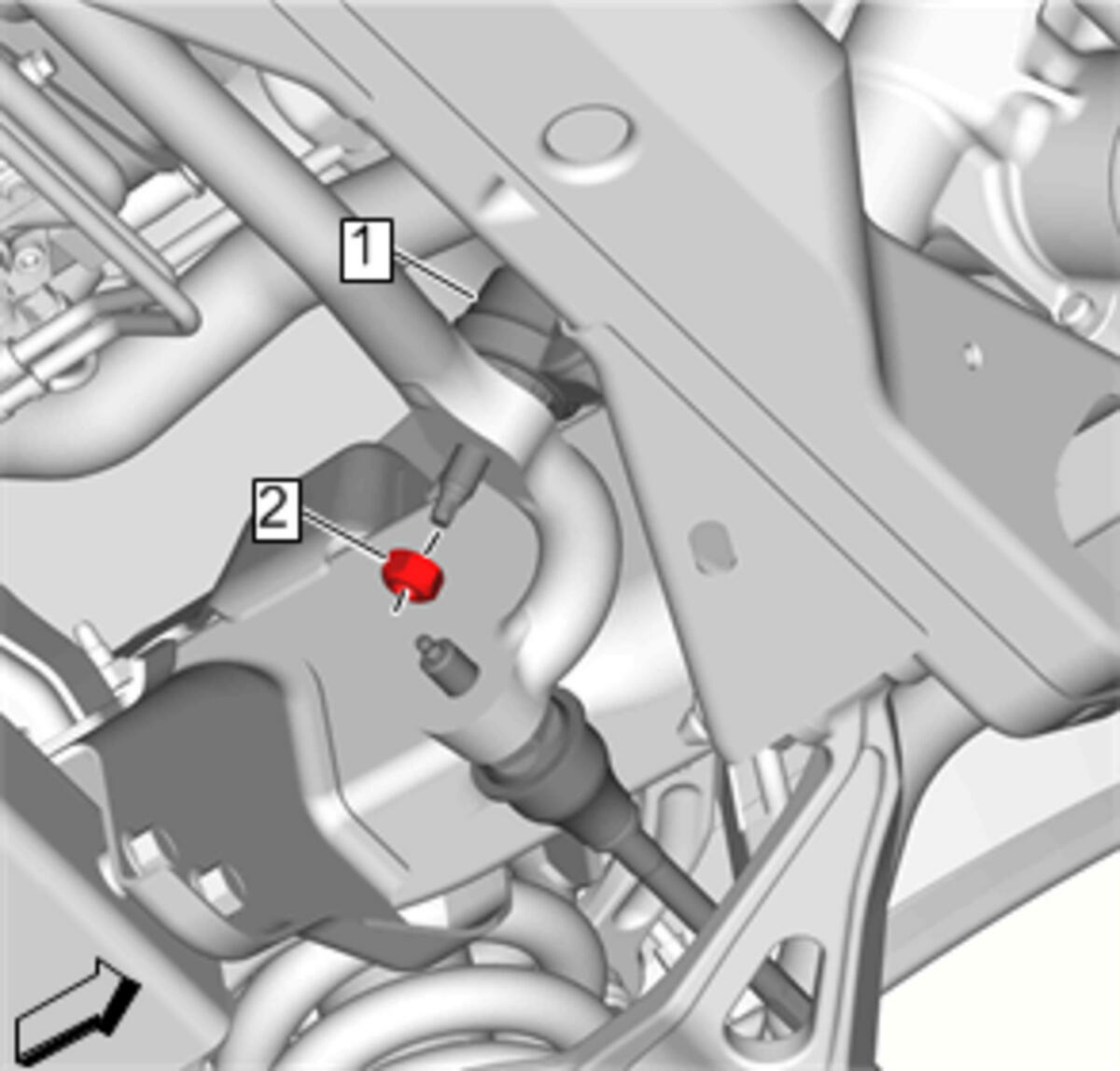

- Install the pitman arm (1) to the steering linkage relay rod.
- Install the steering linkage pitman arm nut (2) and tighten to 63 N.m (46 lb ft).
Install a NEW nut.

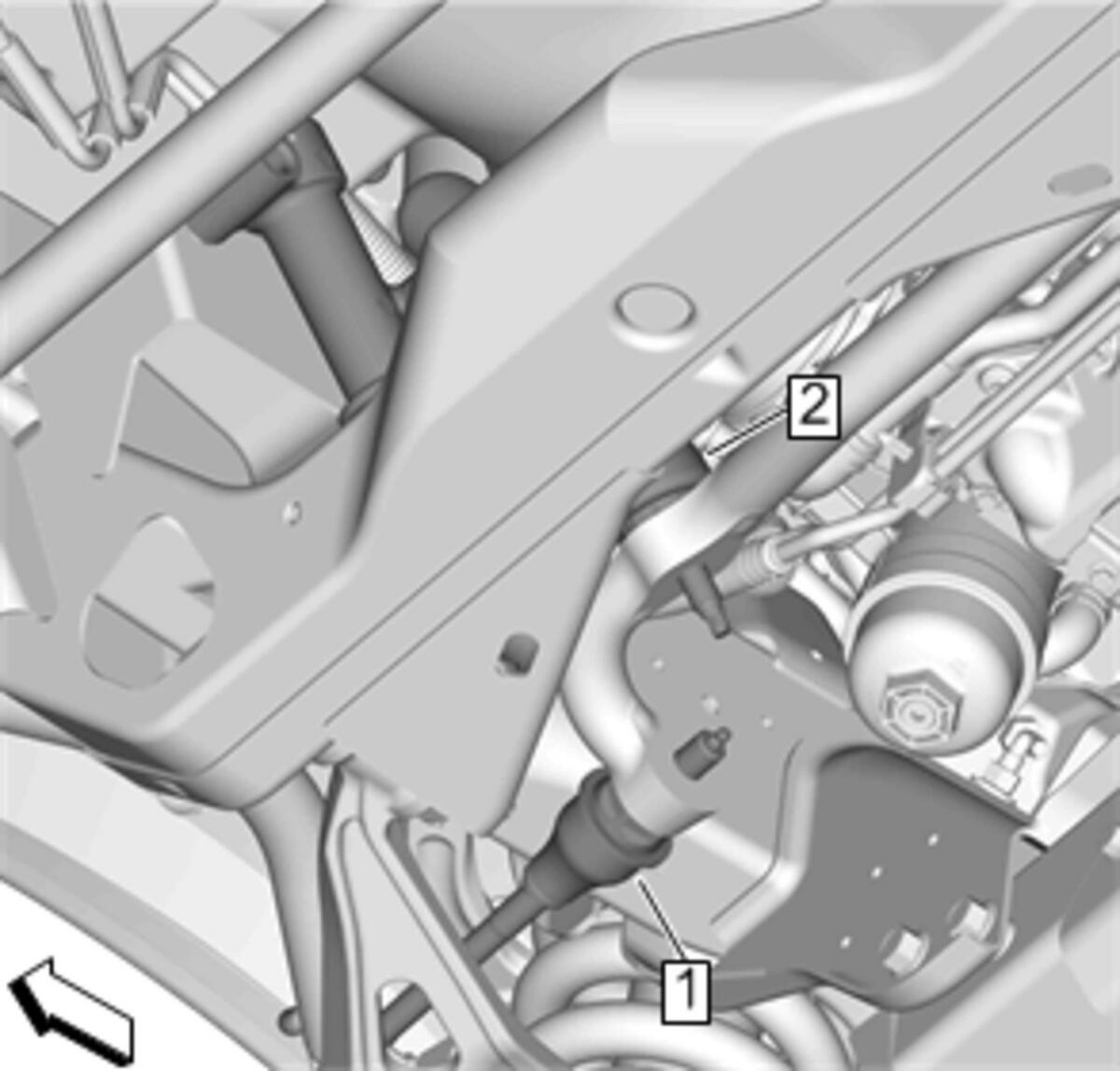

- Install the left side steering linkage inner tie rod (1) to the steering linkage relay rod. Steering Linkage Inner Tie Rod Replacement
- Install the steering linkage idler arm (2) to the steering linkage relay rod. Idler Arm Replacement

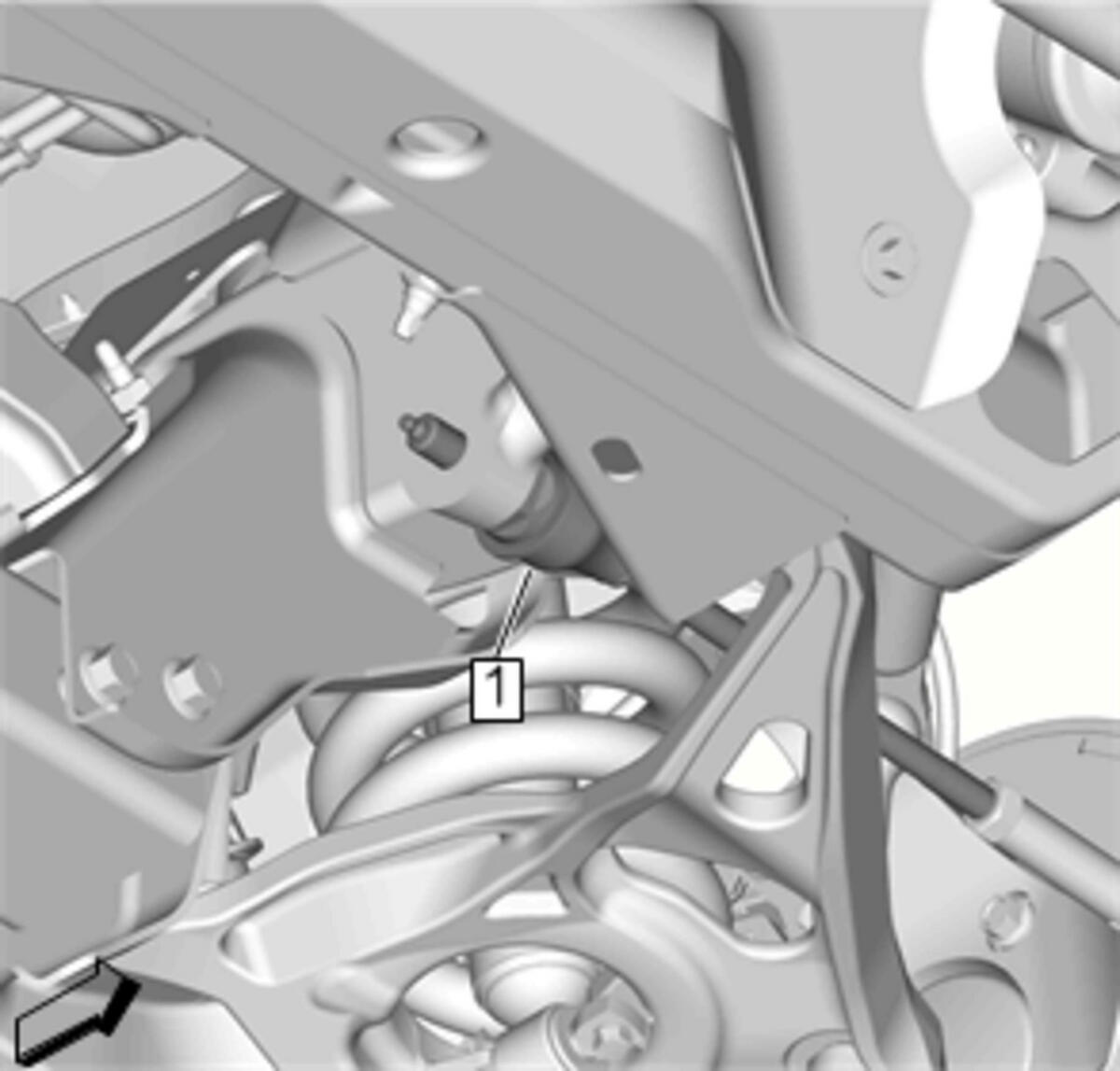

- Install the right side steering linkage inner tie rod (1) to the steering linkage relay rod. Steering Linkage Inner Tie Rod Replacement
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
