Installation Procedure

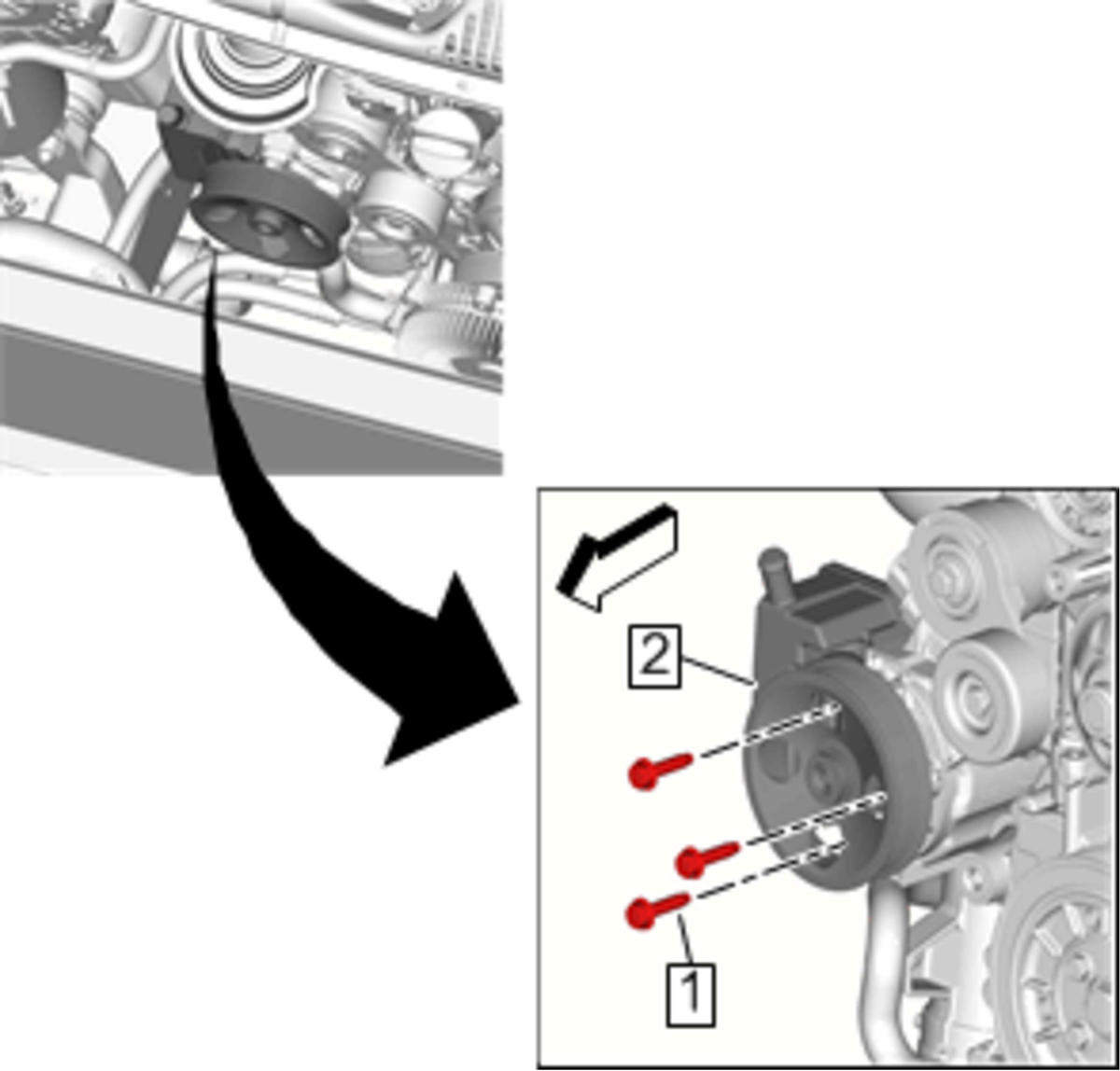

    Fig 1: Power Steering Pump Bolt (With LWN)
    GM4623915Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering pump (2) on the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Power Steering Pump Bolt - Install and tighten to 22 N.m (16 lb ft)

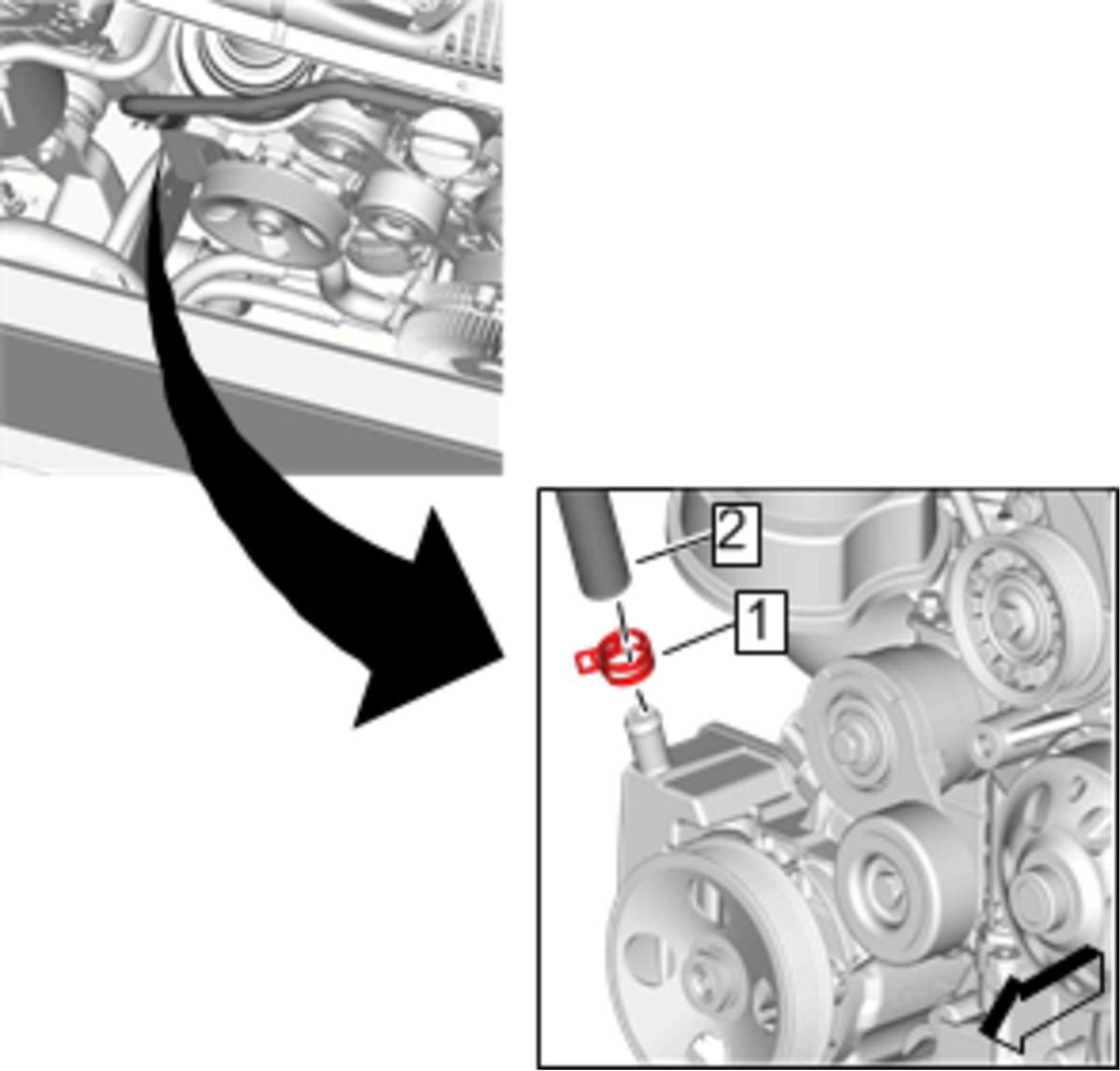

    3. Fig 2: Power Steering Fluid Reservoir Outlet Hose Clamp at Power Steering Pump (With LWN)
    GM4623914Courtesy of GENERAL MOTORS COMPANY
  3. Power Steering Fluid Reservoir Outlet Hose at Power Steering Pump - Install
  4. Power Steering Fluid Reservoir Outlet Hose Clamp at Power Steering Pump - Engage
  5. Engine Coolant Fan Rear Shroud - Install - Engine Coolant Fan Rear Shroud Replacement (LWN)
  6. Raise the vehicle.

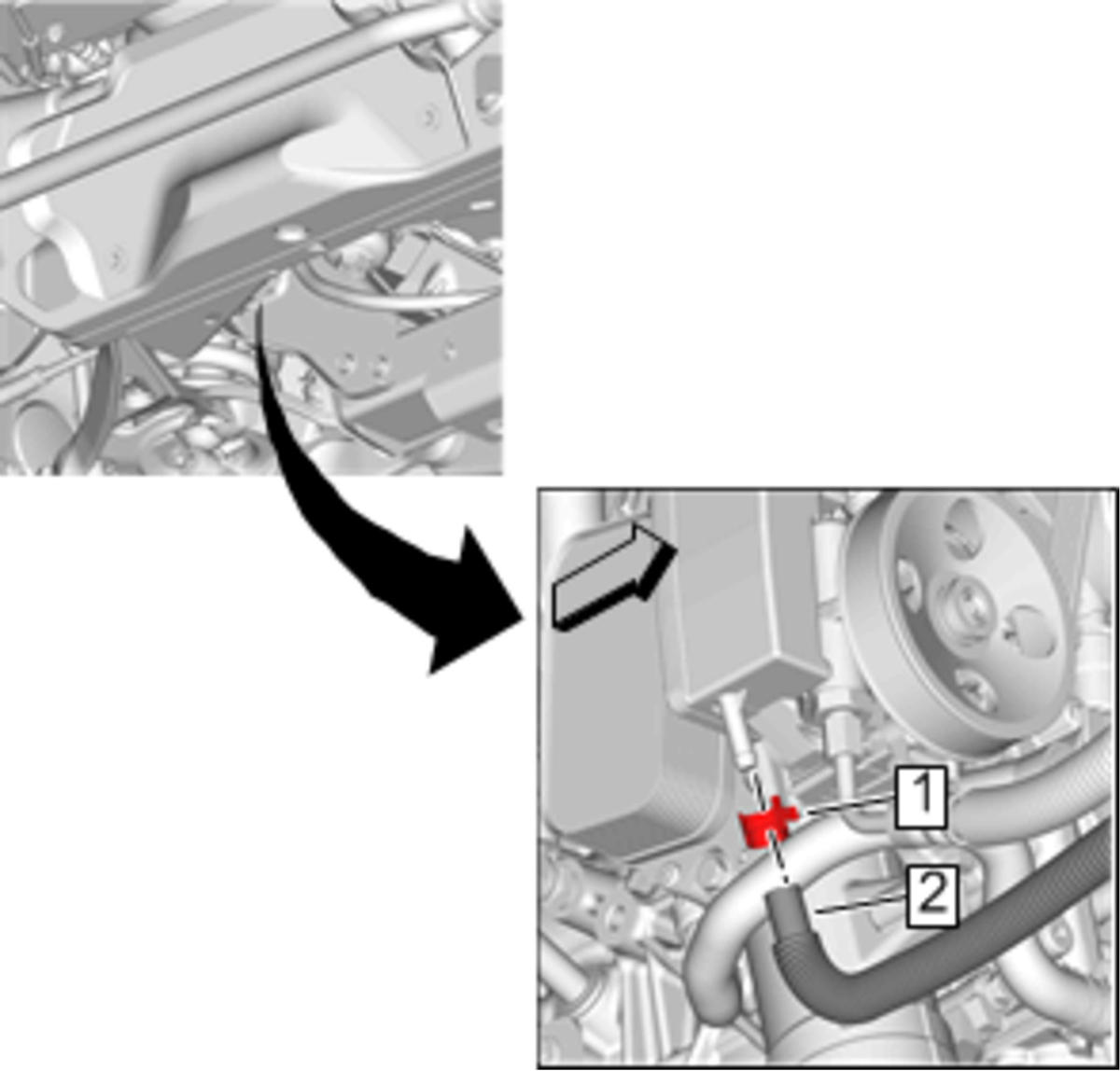

    7. Fig 3: Power Steering Fluid Reservoir Inlet Hose Clamp at Power Steering Pump (With LWN)
    GM4623913Courtesy of GENERAL MOTORS COMPANY
  7. Power Steering Fluid Reservoir Inlet Hose at Power Steering Pump - Install
  8. Power Steering Fluid Reservoir Inlet Hose Clamp at Power Steering Pump - Engage

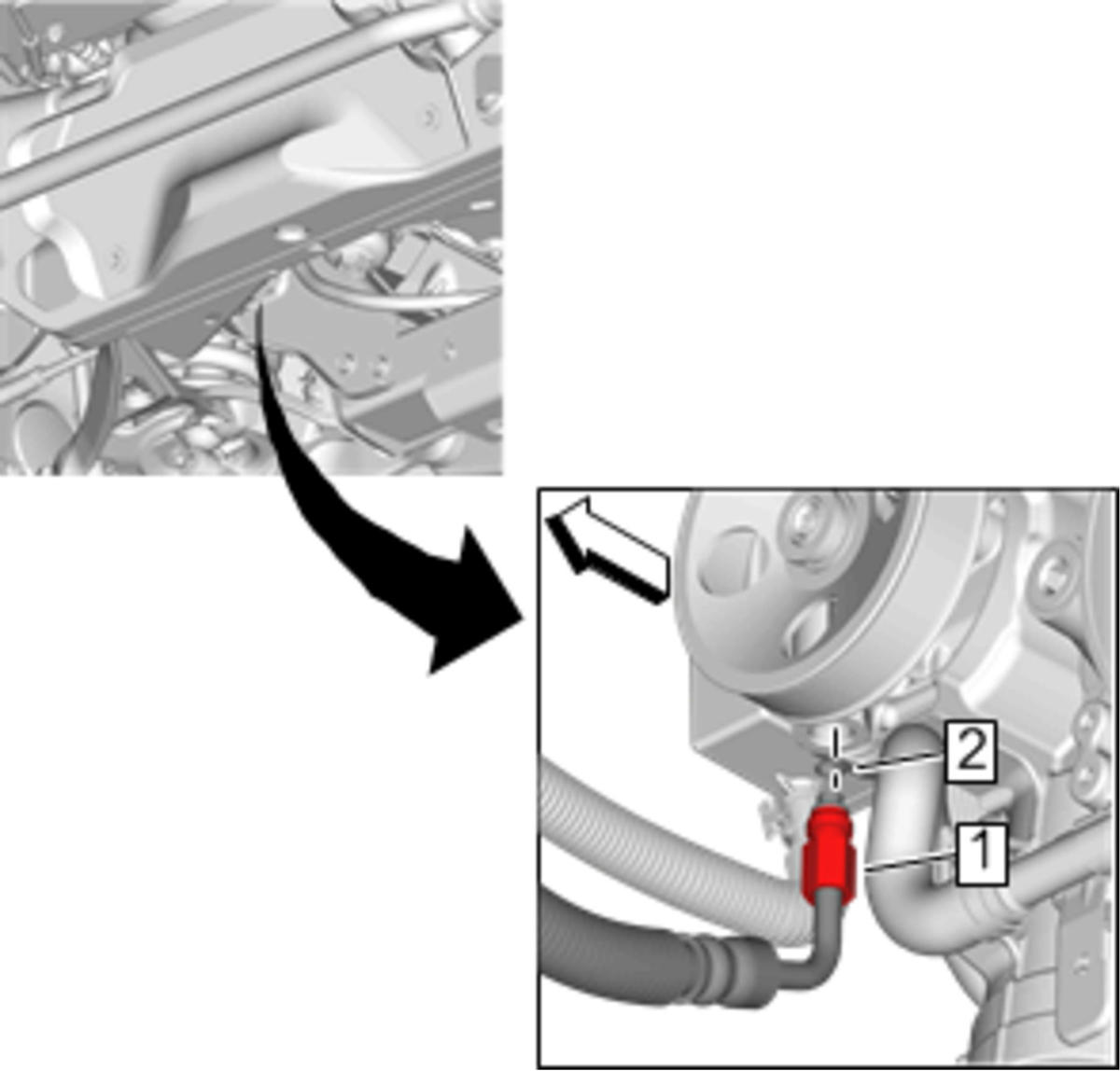

    9. Fig 4: Power Brake Booster Inlet Hose at Power Steering Pump (With LWN)
    GM4623912Courtesy of GENERAL MOTORS COMPANY
  9. Install a NEW power brake booster inlet hose seal (2) on the power brake booster inlet hose.

    Apply a small amount of power steering fluid on the seal to aid in installation.

    10. CAUTION:

    Refer to Component Fastener Tightening Caution .

  10. Power Brake Booster Inlet Hose at Power Steering Pump - Install and tighten to 38 N.m (28 lb ft)
  11. Fill and bleed the power steering system. Power Steering System Bleeding
