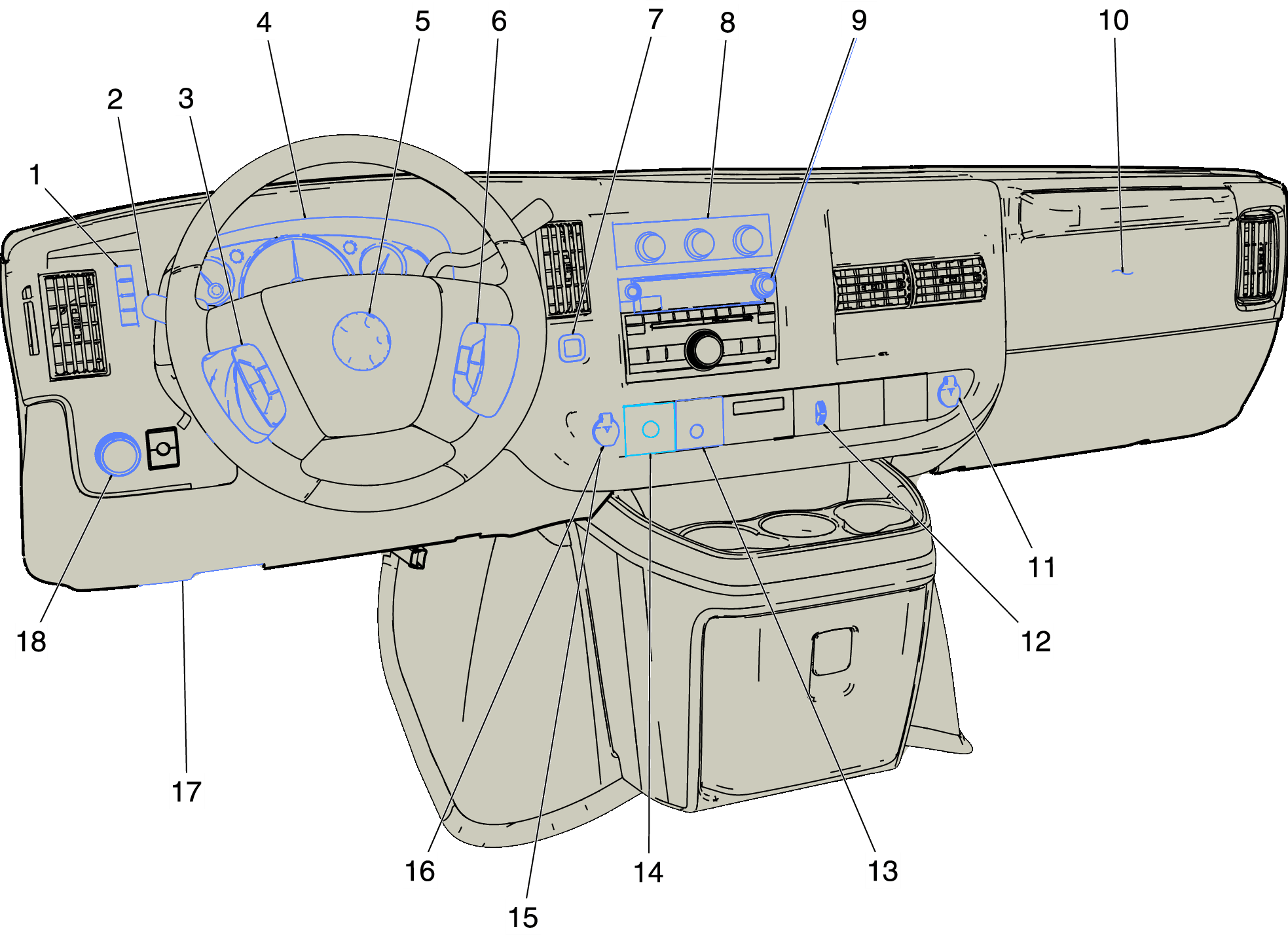

Instrument Panel Components (1 of 2)
Instrument Panel Components (1 of 2)
| Items |
|---|
| 1: S16 Driver Information Center Switch S16 Driver Information Center Switch |
| 2: S78 Turn Signal/Multifunction Switch |
| 3: S70L Steering Wheel Controls Switch - Left (K34) |
| 4: P16 Instrument Cluster P16 Instrument Cluster |
| 5: F107 Steering Wheel Air Bag |
| 6: S70R Steering Wheel Controls Switch - Right (W1Y) |
| 7: S74 Tow/Haul Mode Switch S74 Tow/Haul Mode Switch |
| 8: S34 HVAC Controls Switch Assembly S34 HVAC Controls Switch Assembly X1 (C60/C42/C49)S34 HVAC Controls Switch Assembly X2 (C60/C42/C49)S34 HVAC Controls Switch Assembly X3 (C60/C42/C49)S34 HVAC Controls Switch Assembly X4 (C60/C42/C49) |
| 9: A11 Radio A11 Radio X1A11 Radio X2A11 Radio X4 |
| 10: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag |
| 11: X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2 |
| 12: S85 Auxiliary Blower Motor Switch (C36 or C69) S85 Auxiliary Blower Motor Switch |
| 13: S40 Passenger Air Bag Disable Switch (C99) S40 Passenger Air Bag Disable Switch |
| 14: S75 Traction Control Switch (JL4) S75 Traction Control Switch |
| 15: X80A Accessory Power Receptacle - Center Console 1 (Without DT4) |
| 16: E32 Cigarette Lighter Receptacle (DT4) E32 Cigarette Lighter Receptacle (DT4) |
| 17: X84 Data Link Connector X84 Data Link Connector |
| 18: S30 Headlamp Switch S30 Headlamp Switch |
