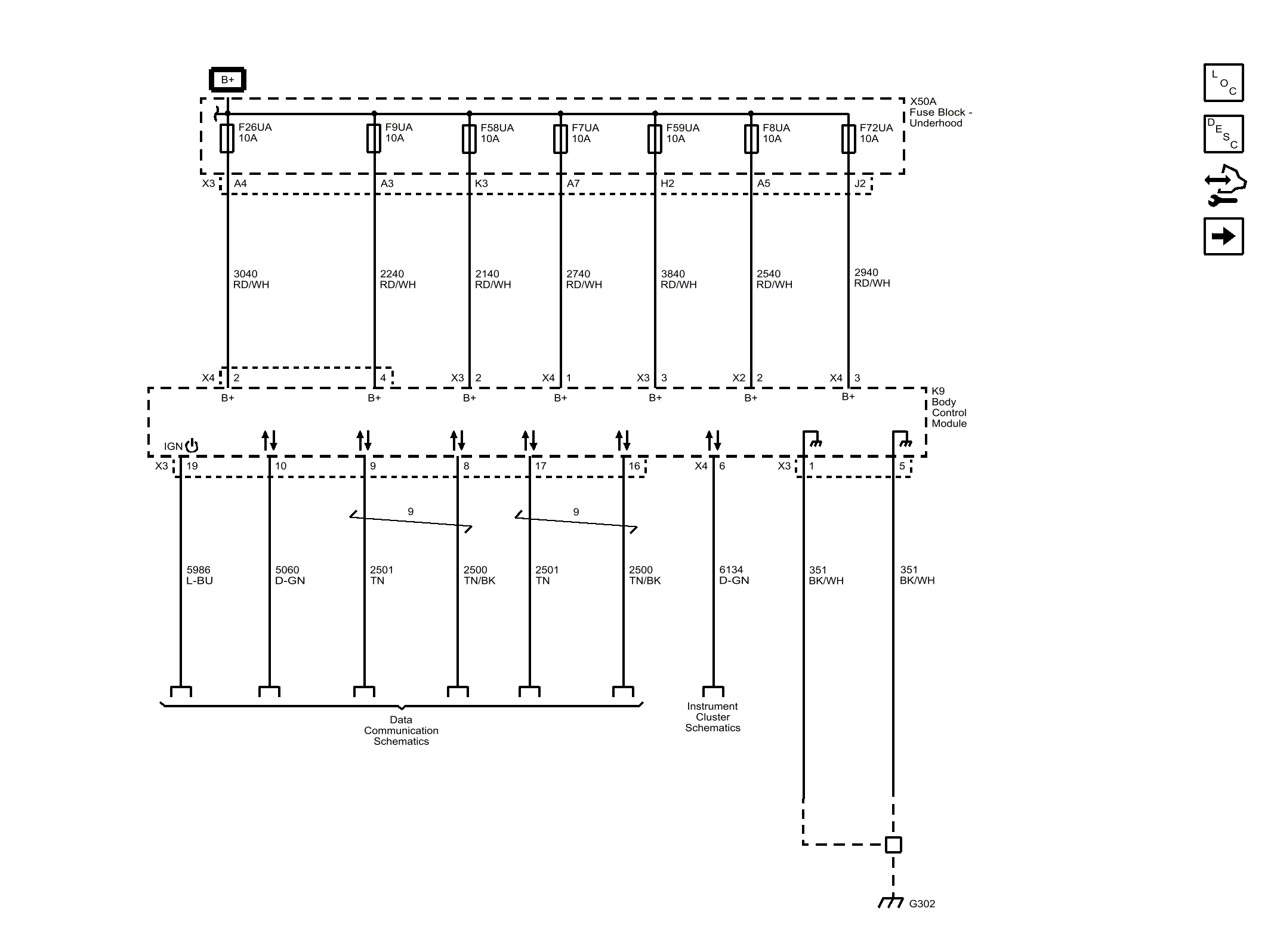

Home >> Chevrolet >> 2017 >> Express 2500 LS, 2.8L Eng VIN 1 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> BCM Power, Ground and Serial Data
