Throttle Inlet Absolute Pressure Sensor Replacement

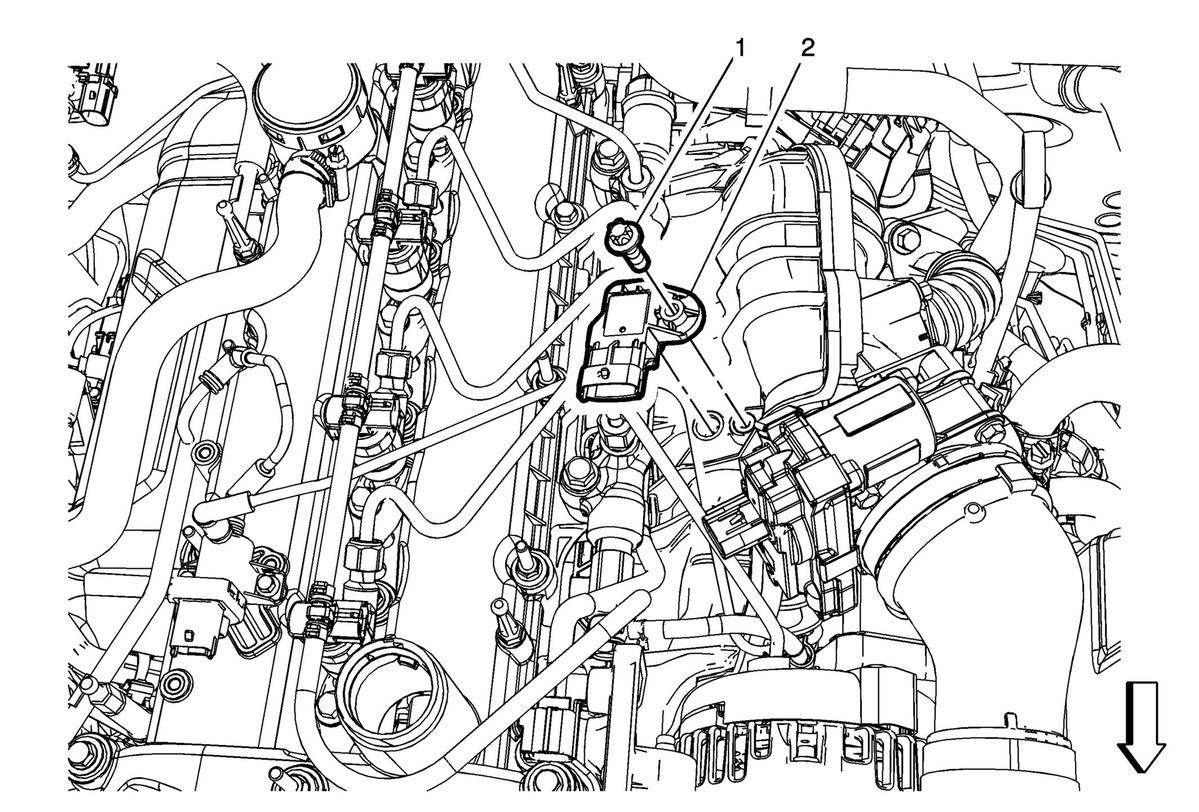

| Callout | Component Name |
|---|---|
| Preliminary Procedure Refer to Engine Cover Replacement |
|
| 1 | Throttle Inlet Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . tighten 9 N.m. (80 lb in) |
| 2 | Throttle Inlet Absolute Pressure Sensor Procedure Disconnect the electrical connector.
NOTE:
Always install the NEW seal that is supplied with the sensor. If reinstalling the sensor, inspect and replace the sensor seal as needed. |
