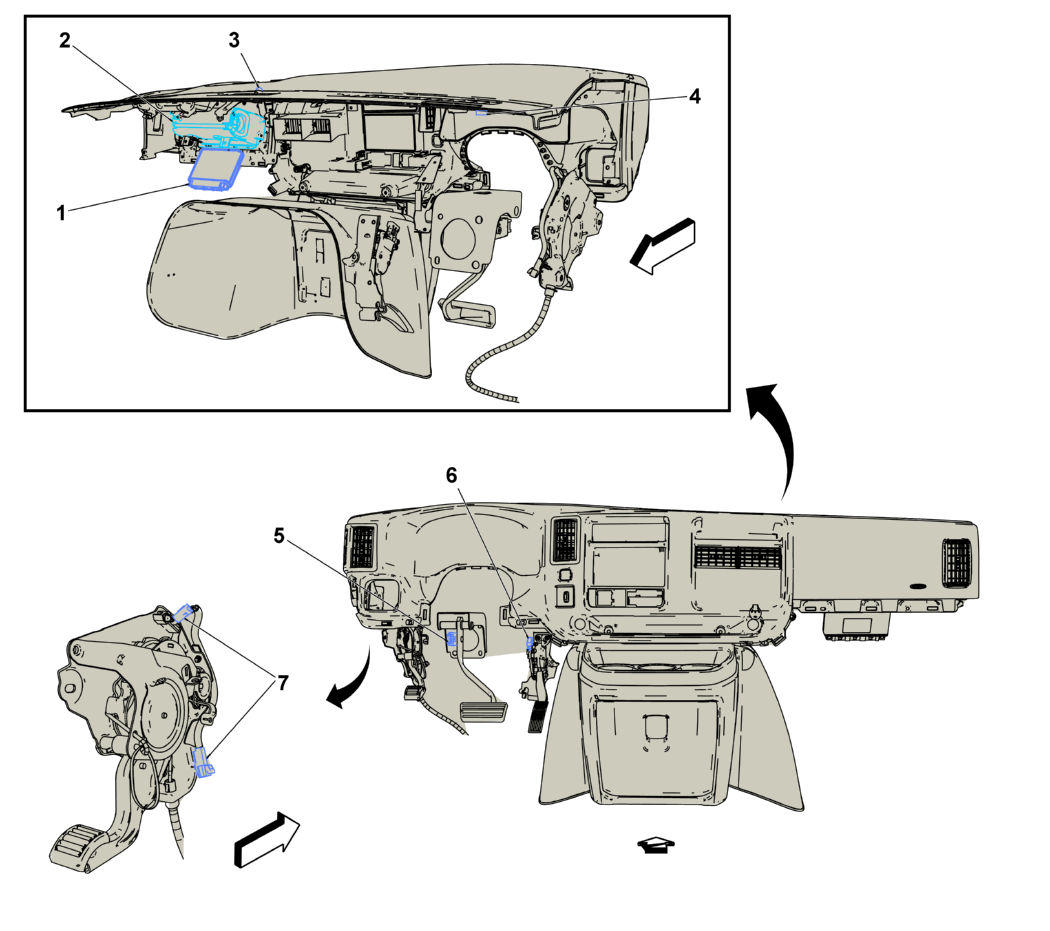

Instrument Panel Components (2 of 2)
Instrument Panel Components (2 of 2)
| Items |
|---|
| 1: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 2: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag |
| 3: B10 Ambient Light Sensor B10 Ambient Light Sensor |
| 4: K77 Remote Control Door Lock Receiver (ATG or UJM) K77 Remote Control Door Lock Receiver |
| 5: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 6: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 7: B80 Park Brake Switch B80 Park Brake Switch |
