Accessory AC and DC Power Control Module Replacement

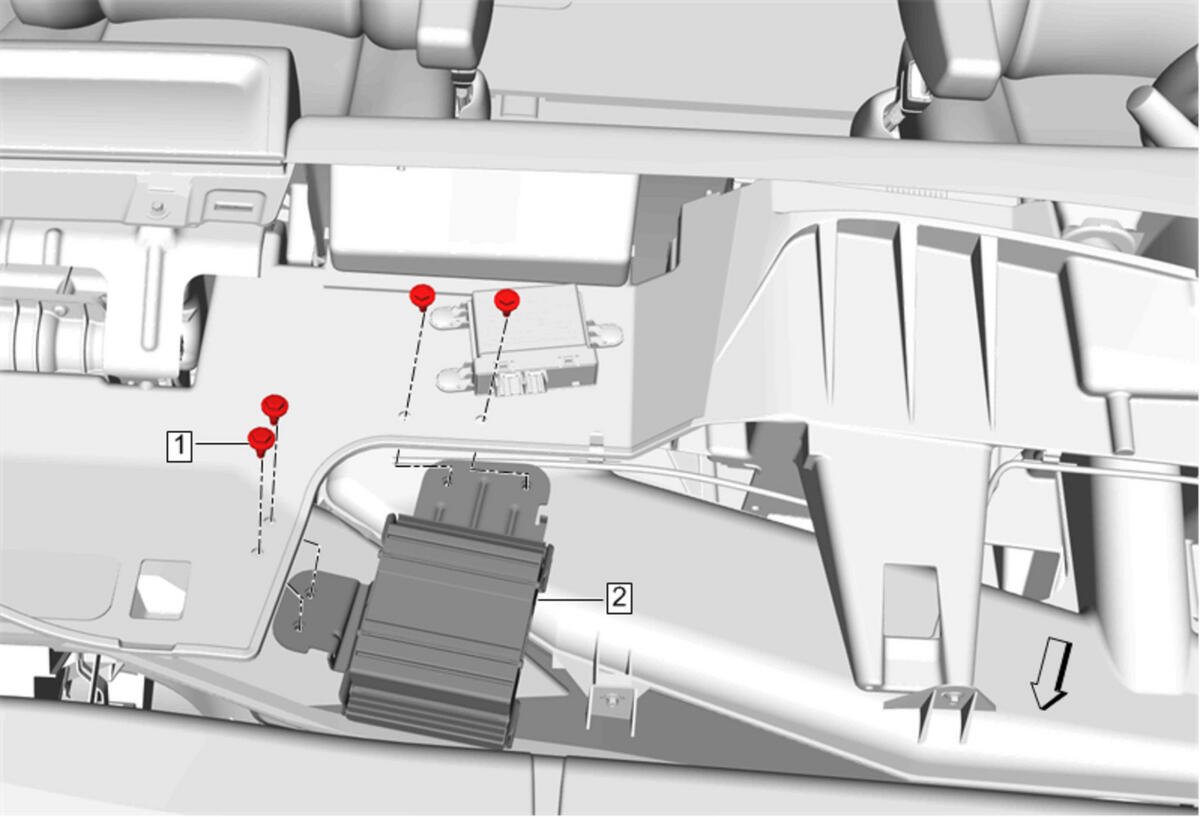

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Upper Trim Pad Replacement
1	Accessory AC and DC Power Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. Control Module References for programming and set up, if required.

Callout

Component Name

Accessory AC and DC Power Control Module Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Accessory AC and DC Power Control Module

Procedure
