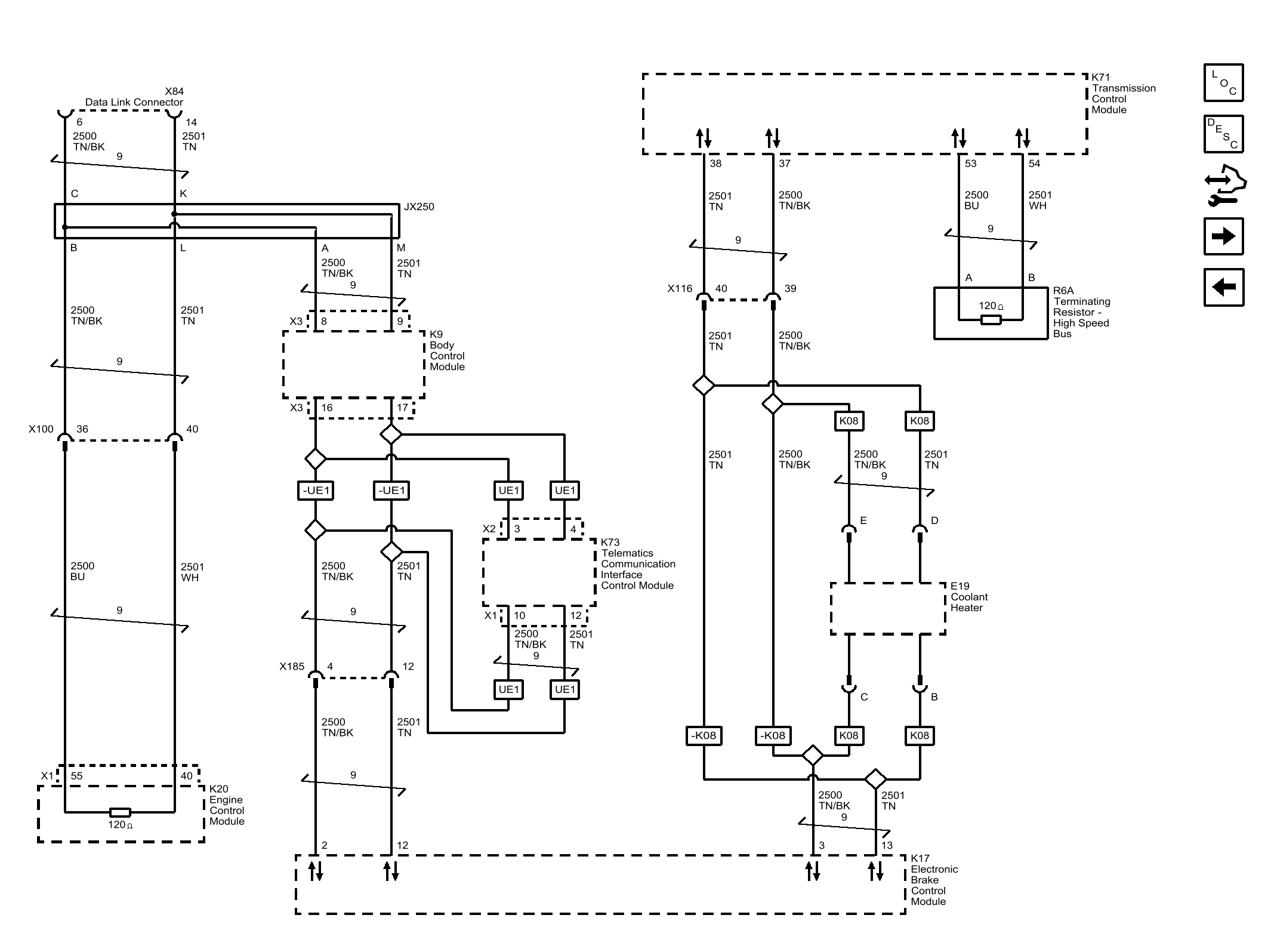

Home >> Chevrolet >> 2017 >> Express 2500 Base, Van Cargo, 6.0L Eng VIN G >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> High Speed GMLAN (Diesel)
