Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection

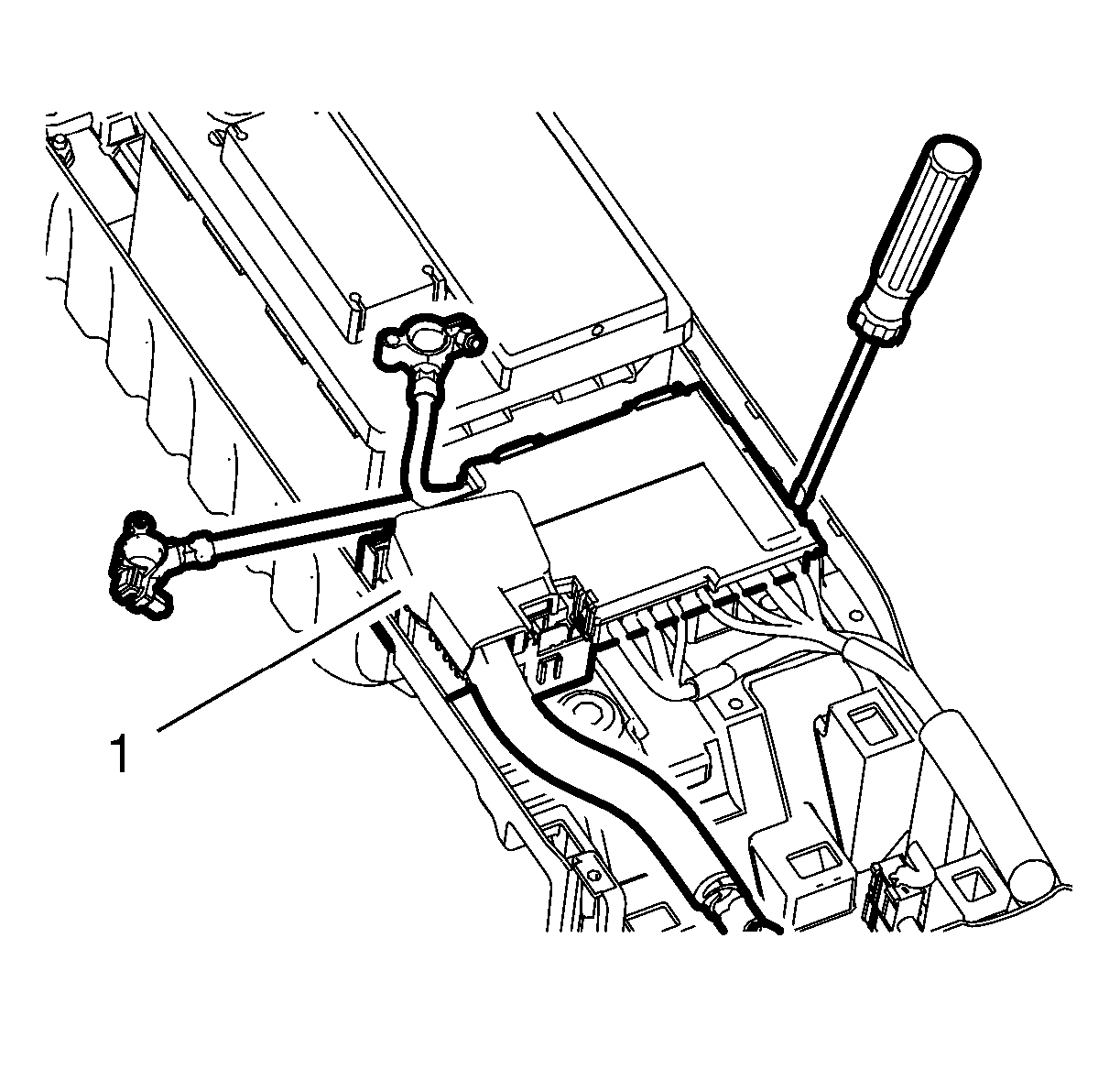

    2. Fig 1: Retaining Tab On Battery Fuse Box Cover
    GM3686207Courtesy of GENERAL MOTORS COMPANY
  2. Unlock the retaining tab on the battery fuse box cover (1).
  3. Use a suitable screwdriver to unlock the clip through the window.
  4. Remove the battery fuse box cover.

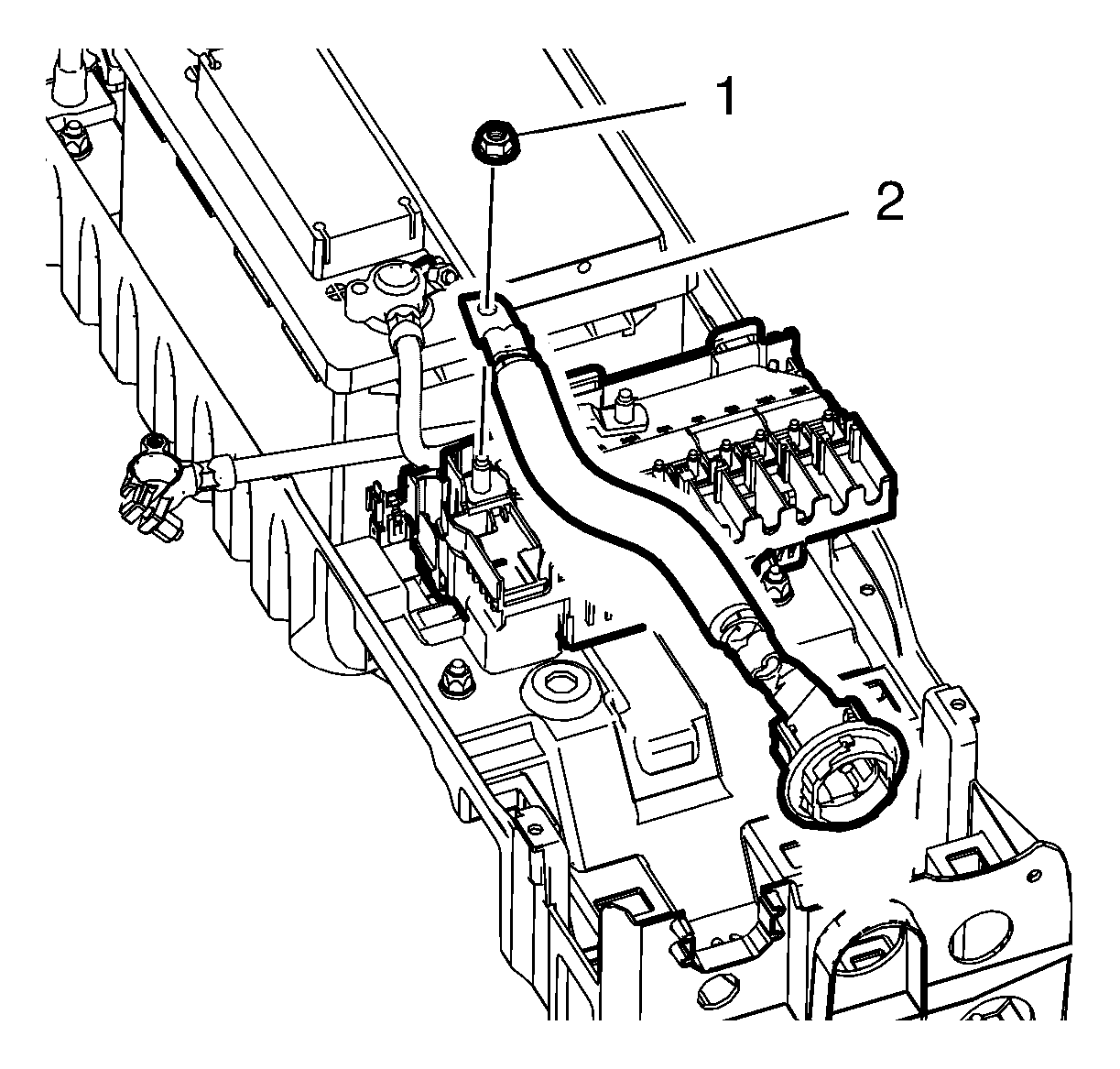

    5. Fig 2: Positive Battery Cable To Starter And Nut
    GM3686209Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  5. Remove the positive battery cable to starter nut (1).
  6. Remove the positive battery cable to starter (2) from the battery.
  7. Remove Battery to Fuse Block Cable. Refer to Battery to Fuse Block Cable Replacement

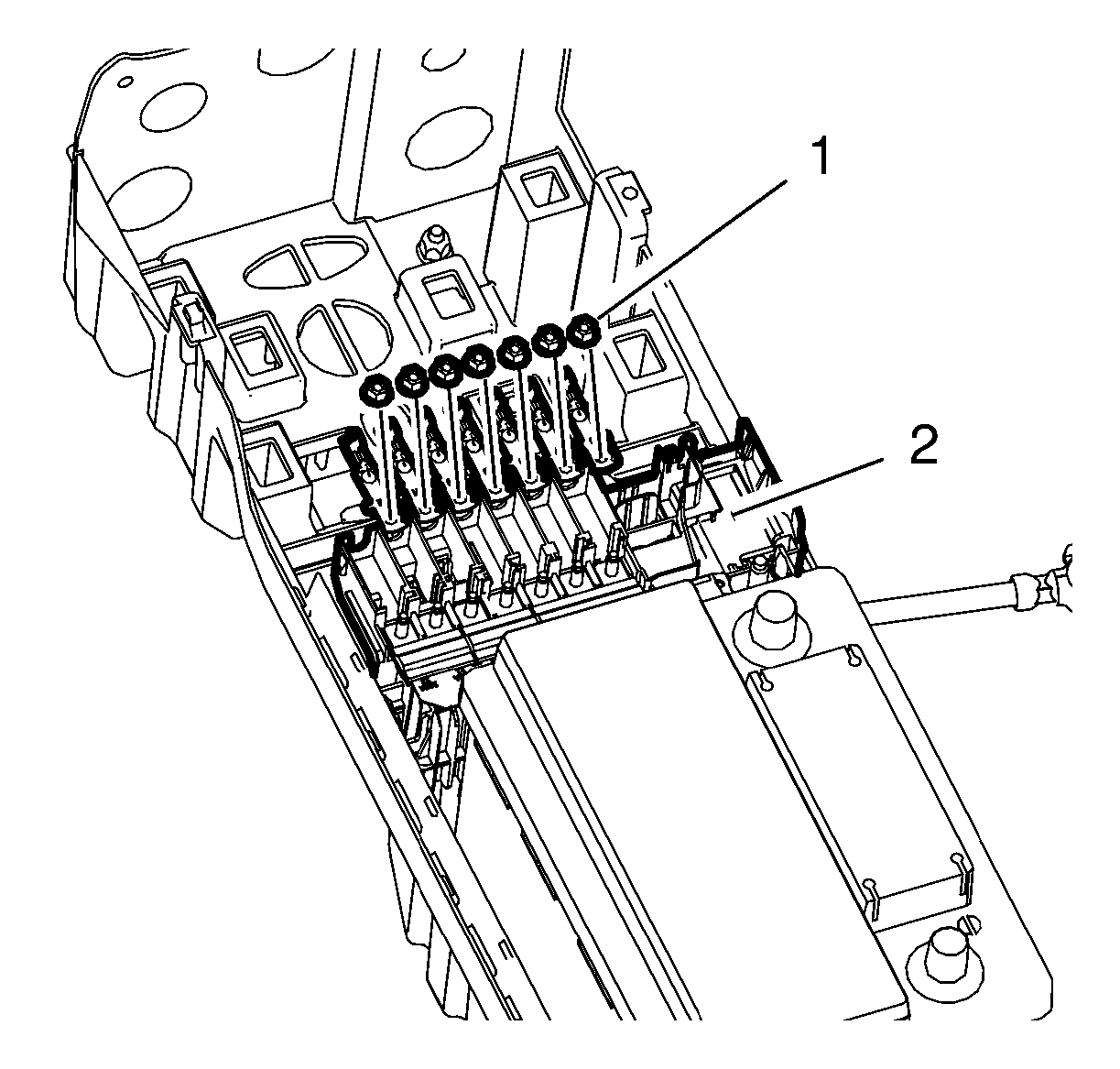

    8. Fig 3: Body Wiring Harness Nuts And Fuse Block
    GM3686210Courtesy of GENERAL MOTORS COMPANY
  8. Remove 7 body wiring harness nuts (1) and the body wiring harness.
  9. Remove Fuse Block (2)
