Engine Stop/Start Mode Control Switch Replacement

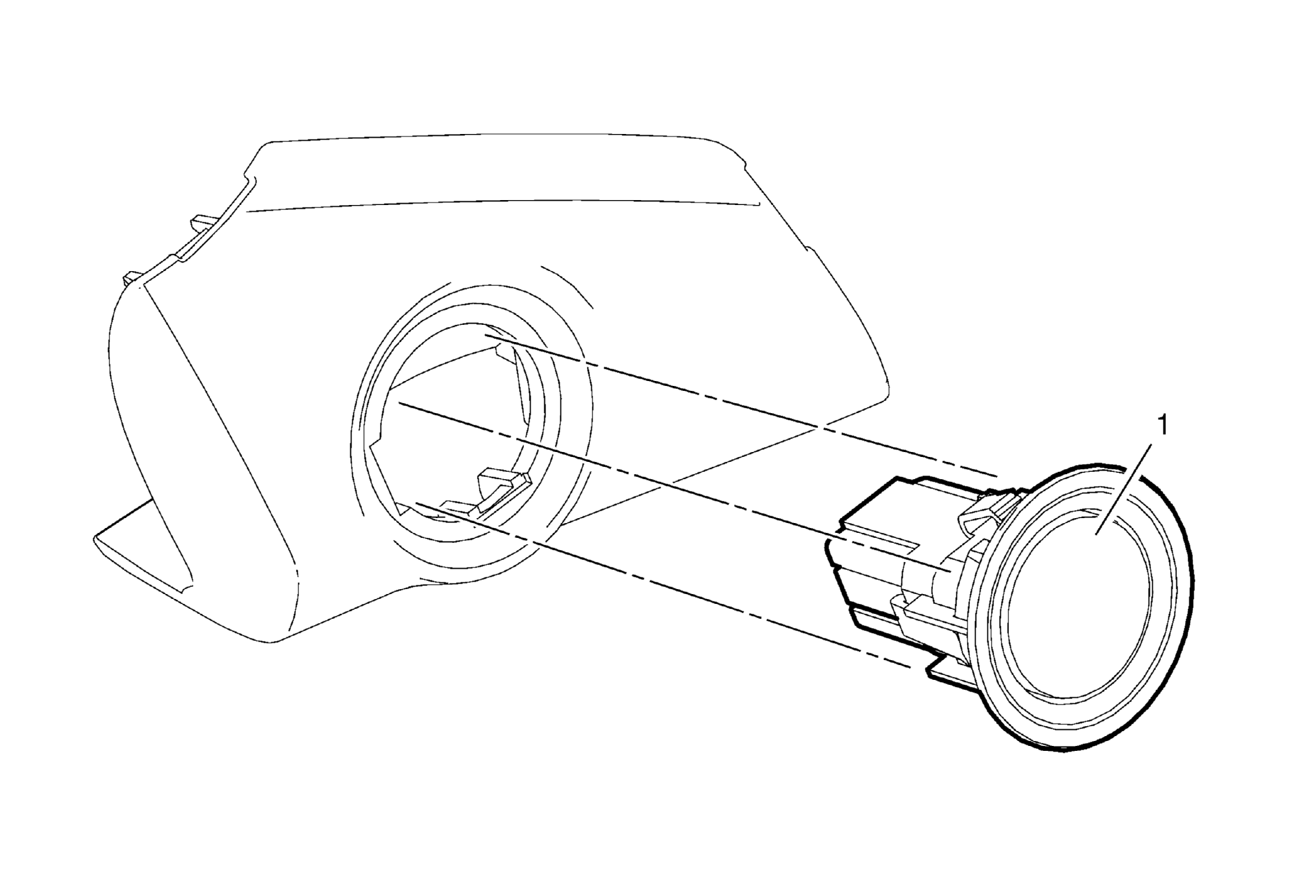

Fig 1: Engine Stop/Start Mode Control Switch
GM3686899Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Instrument Panel Center Trim Pad. Refer to Instrument Panel Center Trim Pad Replacement
1 Engine Stop/Start Mode Control Switch
Procedure
Unlock the retaining tabs.
