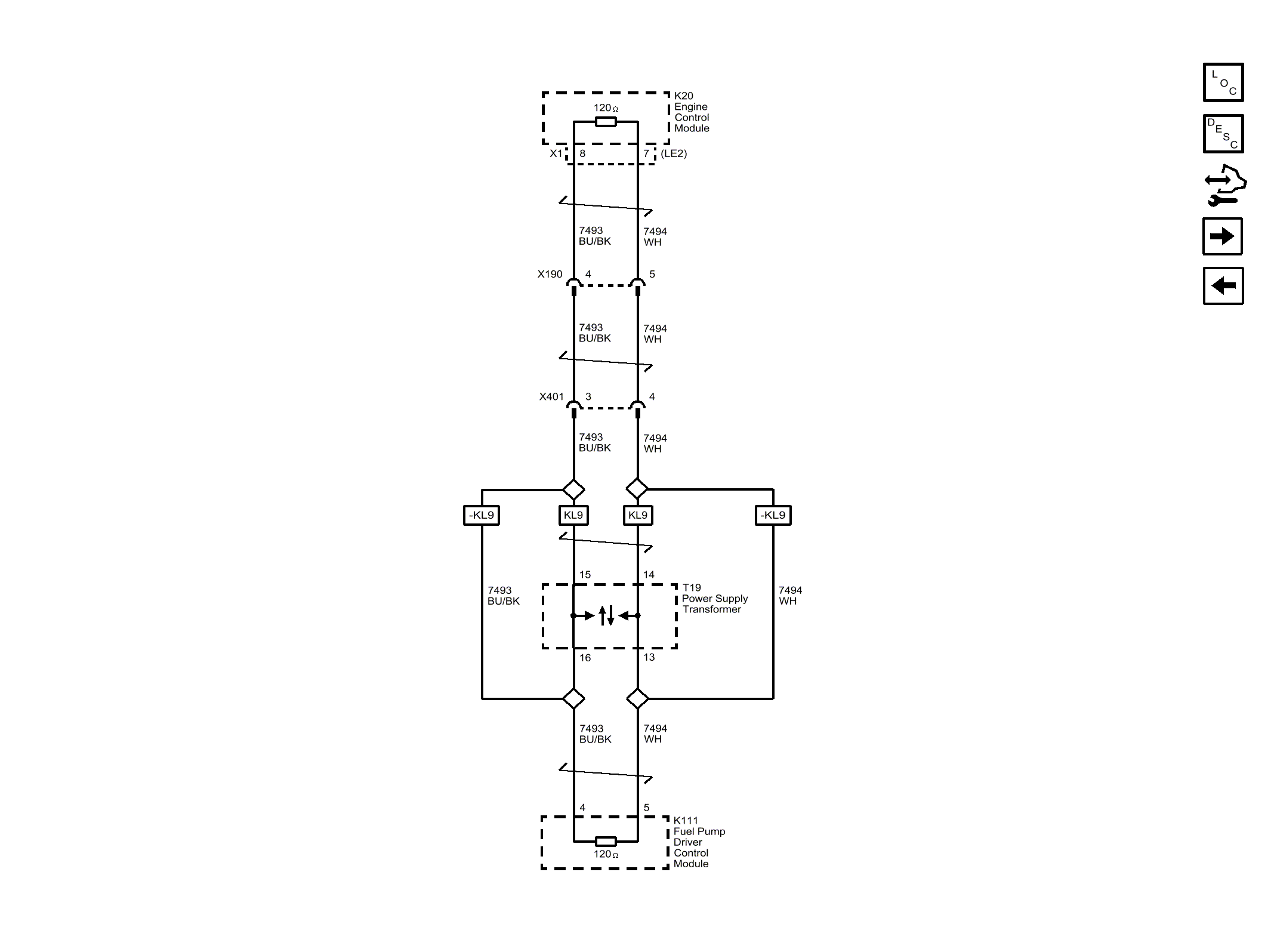

Home >> Chevrolet >> 2017 >> Cruze LT, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Powertrain Expansion Bus (LE2/LEX)
