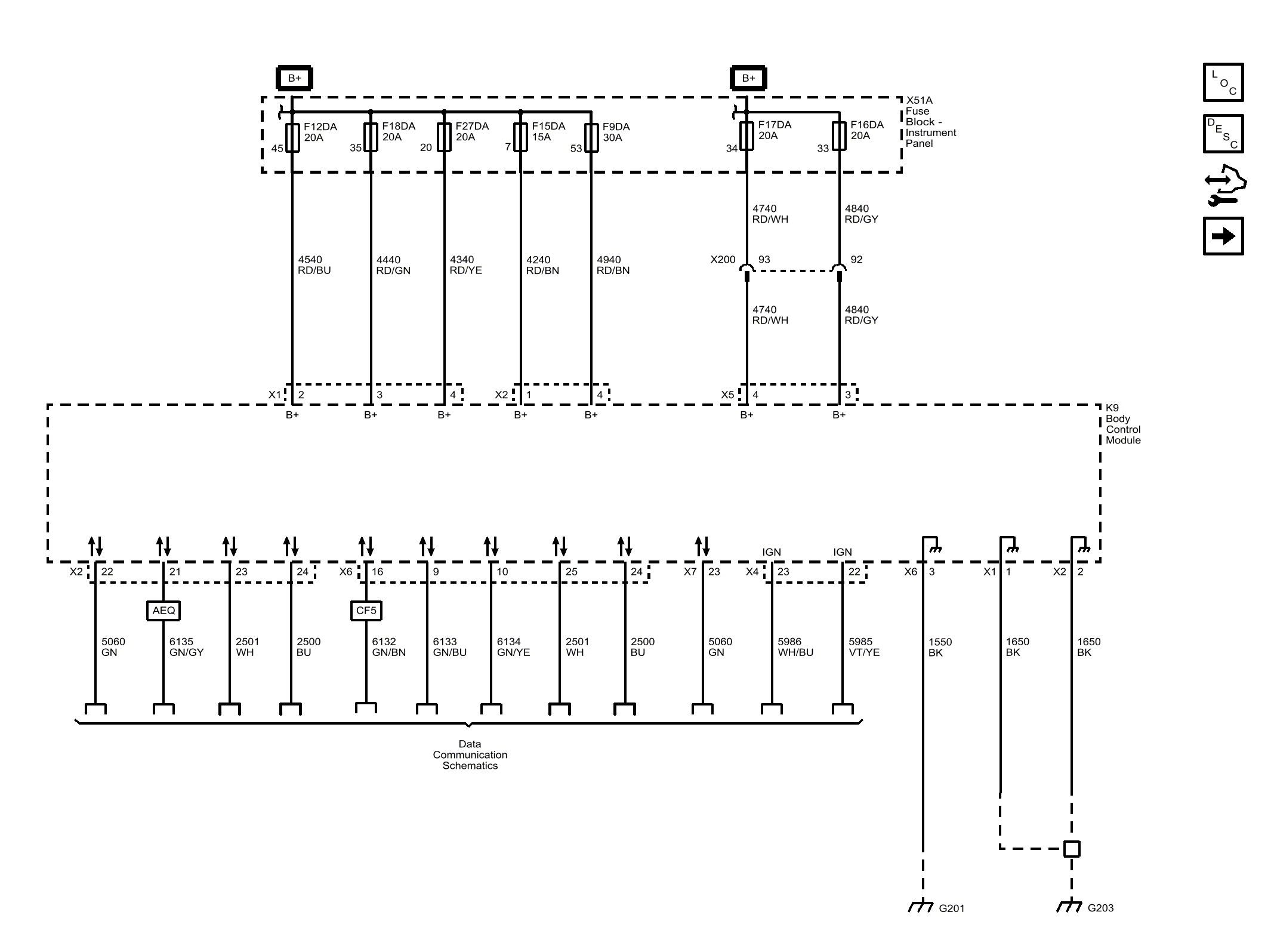

Home >> Chevrolet >> 2017 >> Cruze LT, 4D Hatchback, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Power, Ground, and Data Communications
