Preliminary Procedures
- Front Seat Outer Adjuster Front Finish Cover Replacement - Driver Side (Power Seat)Front Seat Outer Adjuster Front Finish Cover Replacement - Driver Side (Manual Seat)
- Disconnect the electrical connector.
|

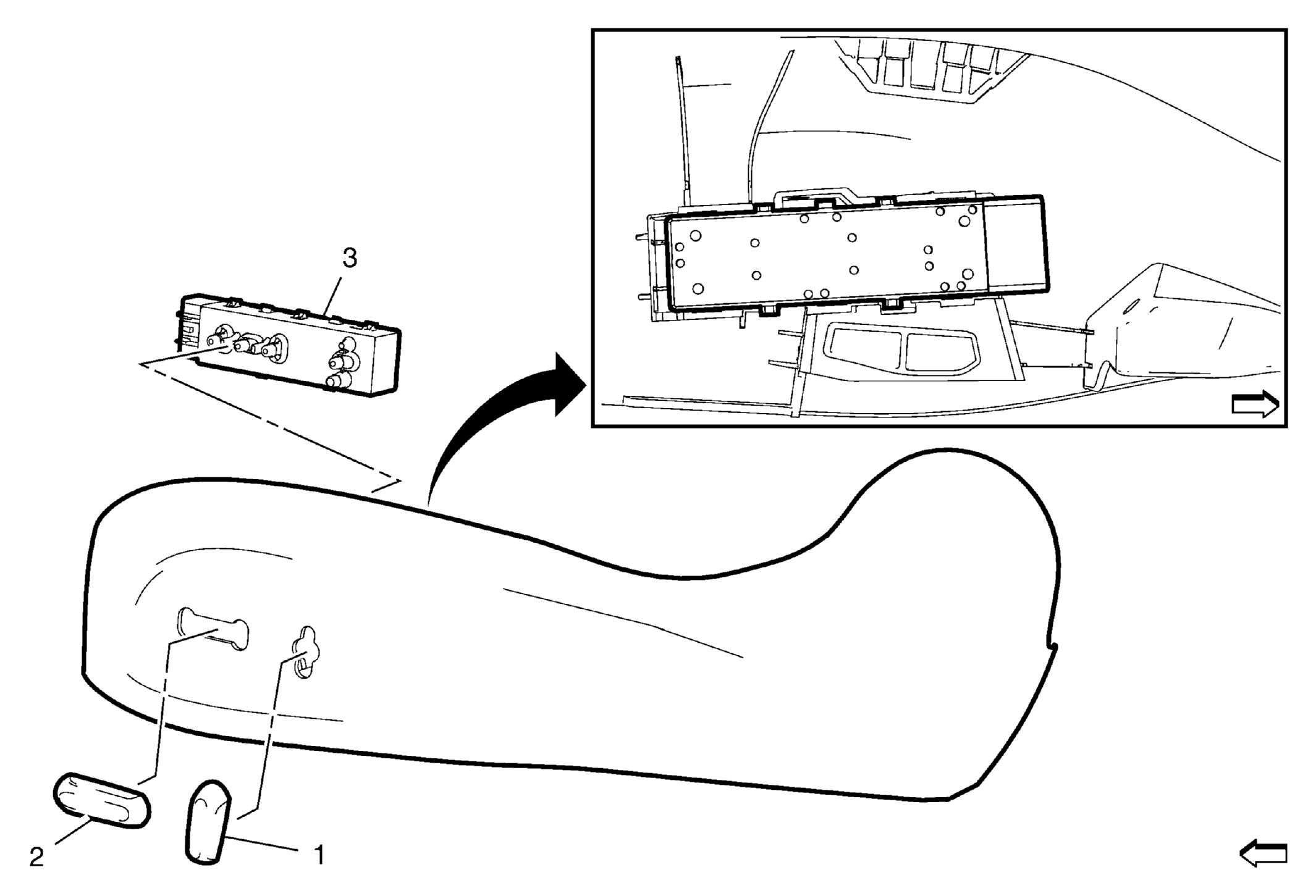

| 1 |
Front Seat Recliner Knob
Procedure
Use a flat bladed plastic tool to remove. |
| 2 |
Front Seat Adjuster Knob
Procedure
Use a flat bladed plastic tool to remove. |
| 3 |
Driver Seat Adjuster Switch |
