Installation Procedure
Courtesy of GENERAL MOTORS COMPANY

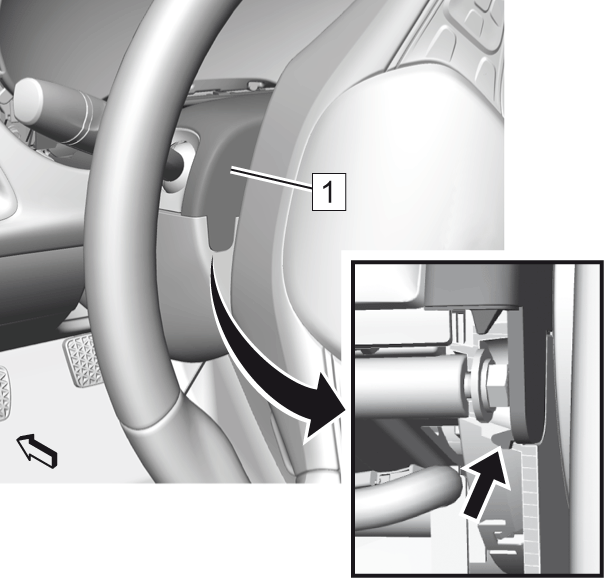

- Install Steering Column Upper Trim Cover (1)
Courtesy of GENERAL MOTORS COMPANY
- Push the steering column upper trim cover (1) carefully against the direction of the arrows, to install the catches at both sides.
Courtesy of GENERAL MOTORS COMPANY

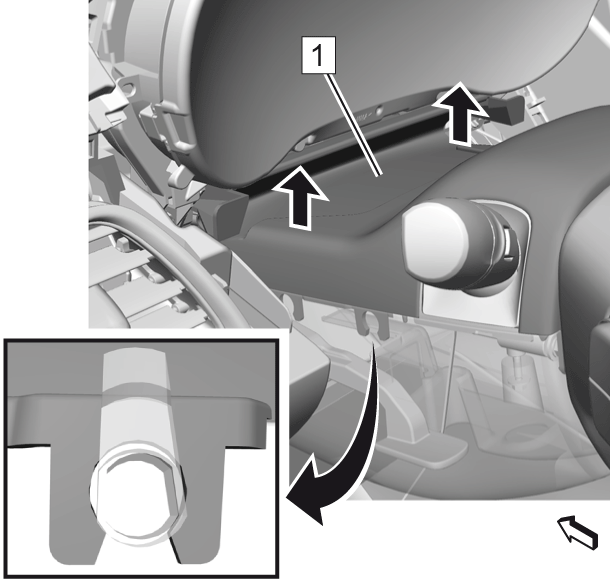

- Install Steering Column Upper Trim Cover (1)
- Rotate the steering wheel 180 degrees, to repeat the procedure on the other side.
- Remove Instrument Panel Cluster Trim Plate Instrument Panel Cluster Trim Plate Replacement
