Front Seat Belt Buckle Replacement

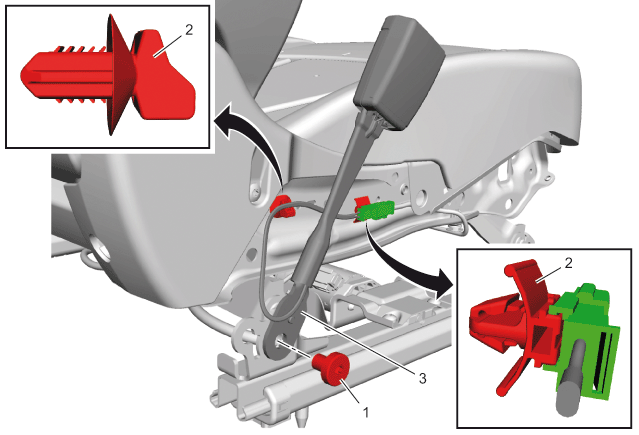

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Driver or Passenger Seat. Refer to Driver or Passenger Seat Removal and Installation |
|
| 1 | Front Seat Belt Buckle Fastener
CAUTION:
Refer to Fastener Caution Procedure Service may offer bolts without micro-encapsulated thread locking adhesive. If this is the case, apply thread locking adhesive to the bolt.
NOTE:
Self cutting bolts, prevailing nuts must be replaced if loosened. Surrounding threads cleaned and GM released encapsulation/glue applied. Tighten 45 N.m (33 lb ft) |
| 2 | Front Seat Belt Buckle Wiring Harness Clip (Qty: 2) Procedure Use a flat bladed plastic tool to remove. |
| 3 | Front Seat Belt Buckle Procedure Disconnect the electrical connector. |
