Front End Inflatable Restraint Discriminating Sensor Replacement

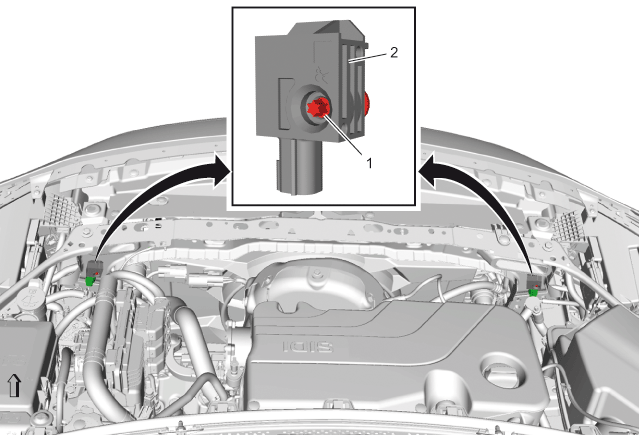

Fig 1: Front End Inflatable Restraint Discriminating Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning WARNING: Refer to SIR Inflator Module Handling and Storage Warning Preliminary Procedure Remove Rear Intake Air Duct. Refer to Rear Intake Air Duct Replacement
1	Front End Inflatable Restraint Discriminating Sensor Fastener CAUTION: Refer to Fastener Caution Procedure Loosen the fastener and slide the sensor out of the keyhole slot. Tighten 7.5 N.m (66 lb in)
2	Front End Inflatable Restraint Discriminating Sensor Procedure Disconnect the electrical connector. NOTE: The fastener is integral to the sensor assembly, DO NOT remove separately
