Turbocharger Air Pressure Sensor Replacement

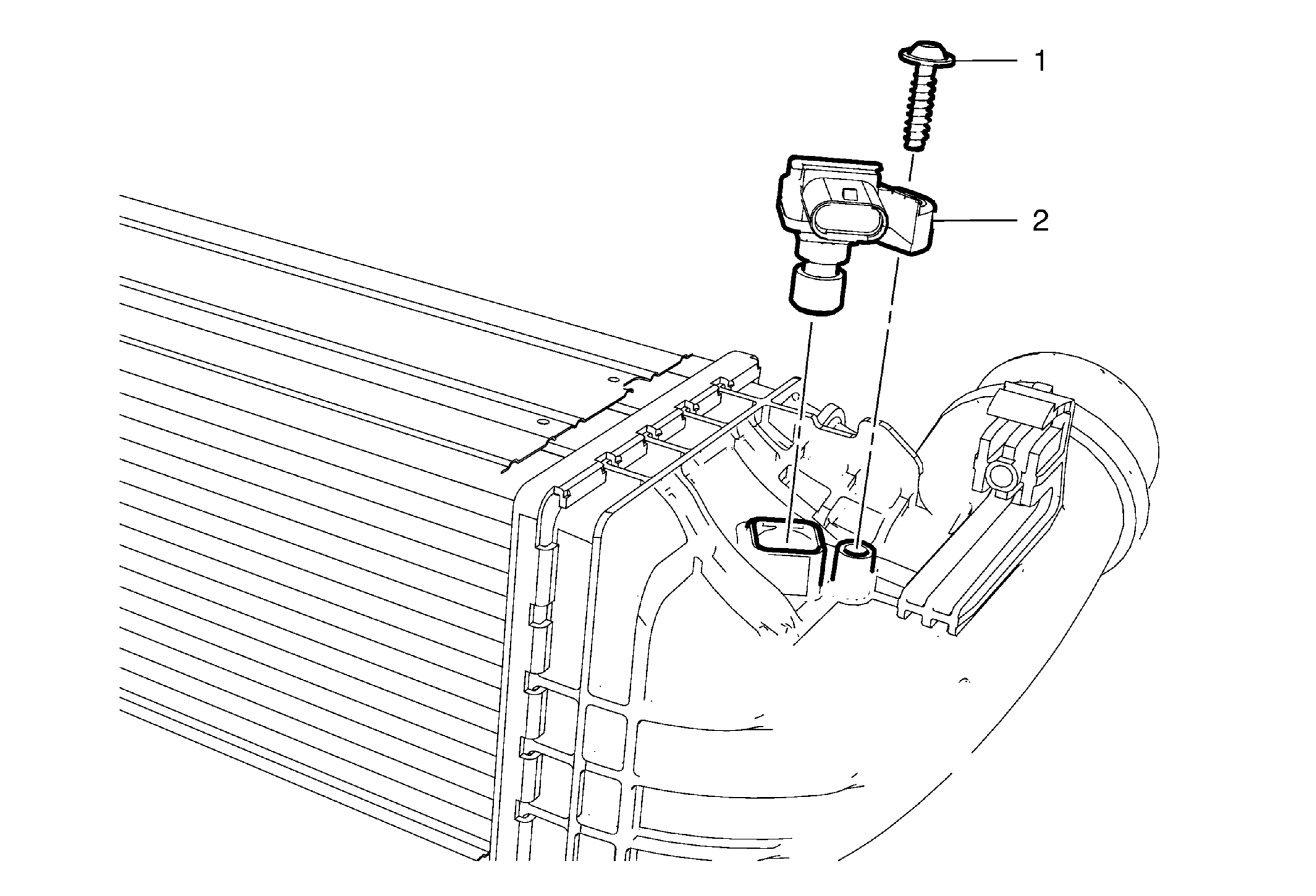

Fig 1: Turbocharger Air Pressure Sensor
GM3686939Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Charge Air Cooler Replacement
1 Turbocharger Air Pressure Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
3.8 N.m (34 lb in)
2 Turbocharger Air Pressure Sensor
