Installation Procedure

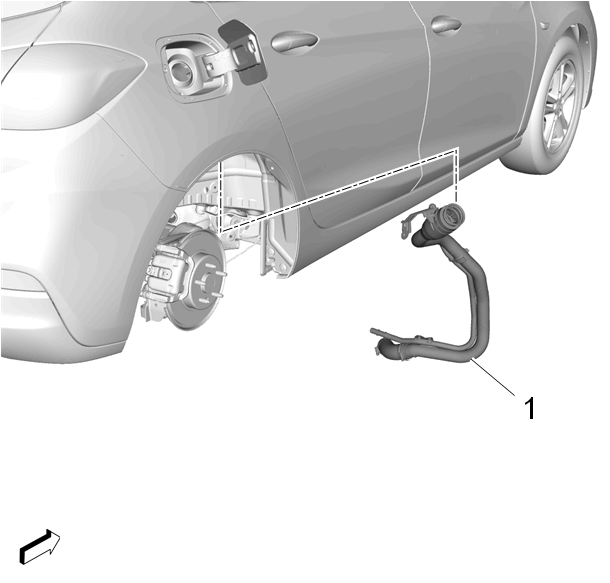

    Fig 1: Fuel Tank Filler Pipe
    GM4704301Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Tank Filler Pipe (1)

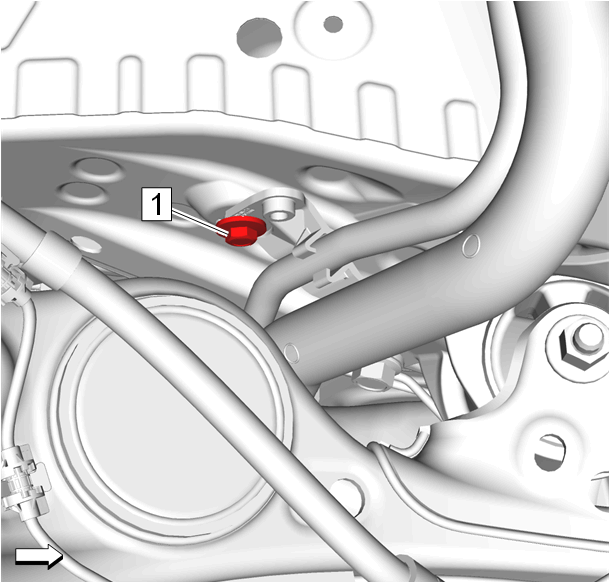

    2. Fig 2: Fuel Tank Filler Pipe Ground Bolt
    GM4704300Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

  2. Install Fuel Tank Filler Pipe Ground Bolt (1) and tighten 22 N.m (16 lb ft)

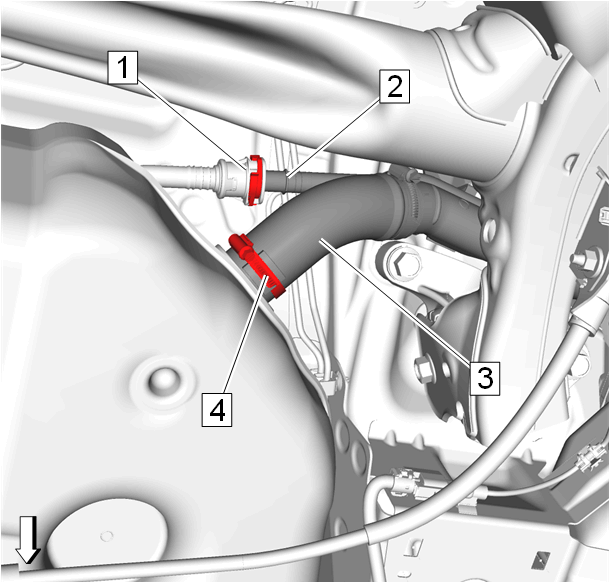

    3. Fig 3: Fuel Tank Filler Hose Clamp
    GM4704299Courtesy of GENERAL MOTORS COMPANY
  3. Connect Fuel Tank Filler Vent Pipe (2) @Fuel Tank Vent Pipe (1)Plastic Collar Quick Connect Fitting Service .
  4. Connect Fuel Tank Filler Hose (3) @Fuel Tank
  5. Fuel Tank Filler Hose Clamp (4) - Tighten 3.5 N.m (31 lb in)

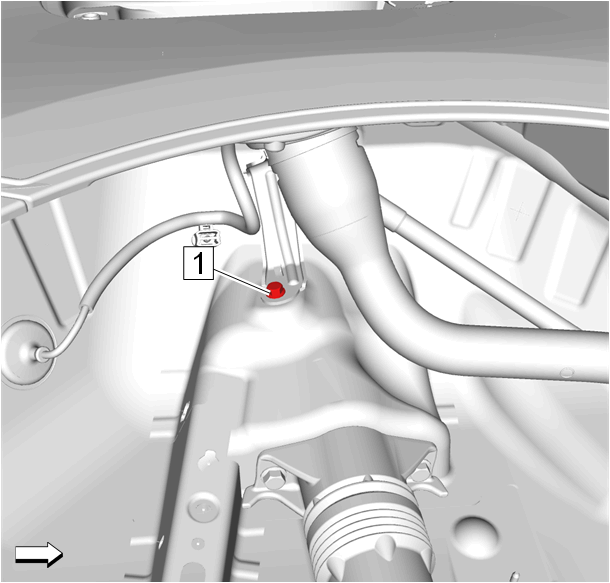

    6. Fig 4: Fuel Tank Filler Pipe Bracket Bolt
    GM4704298Courtesy of GENERAL MOTORS COMPANY
  6. Install Fuel Tank Filler Pipe Bracket Bolt (1) and tighten 9 N.m (80 lb in)
  7. Install Rear Wheelhouse Liner - Right Side Rear Wheelhouse Liner Replacement
  8. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
