Fuel Tank Filler Hose Replacement

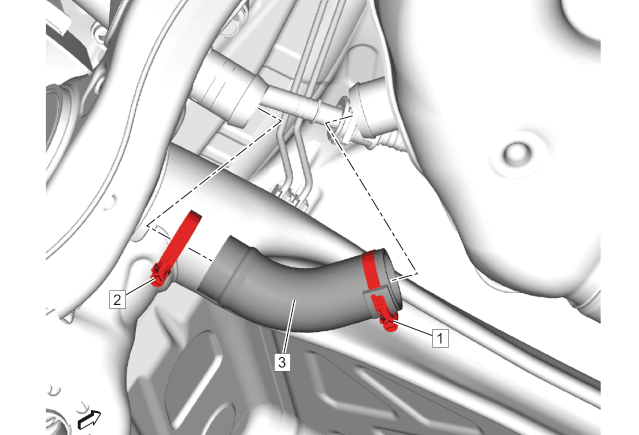

Fig 1: Fuel Tank Filler Hose
GM3682610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Fuel Vapors in Evaporative Emission Components Warning .

Preliminary Procedures

  1. Battery Negative Cable Disconnection and Connection
  2. Fuel Tank Draining
1 Fuel Tank Filler Hose Clamp
NOTE:

The fuel tank filler hose clamp remains on the fuel tank filler hose
2 Fuel Tank Filler Hose Clamp
3 Fuel Tank Filler Hose
