Installation Procedure

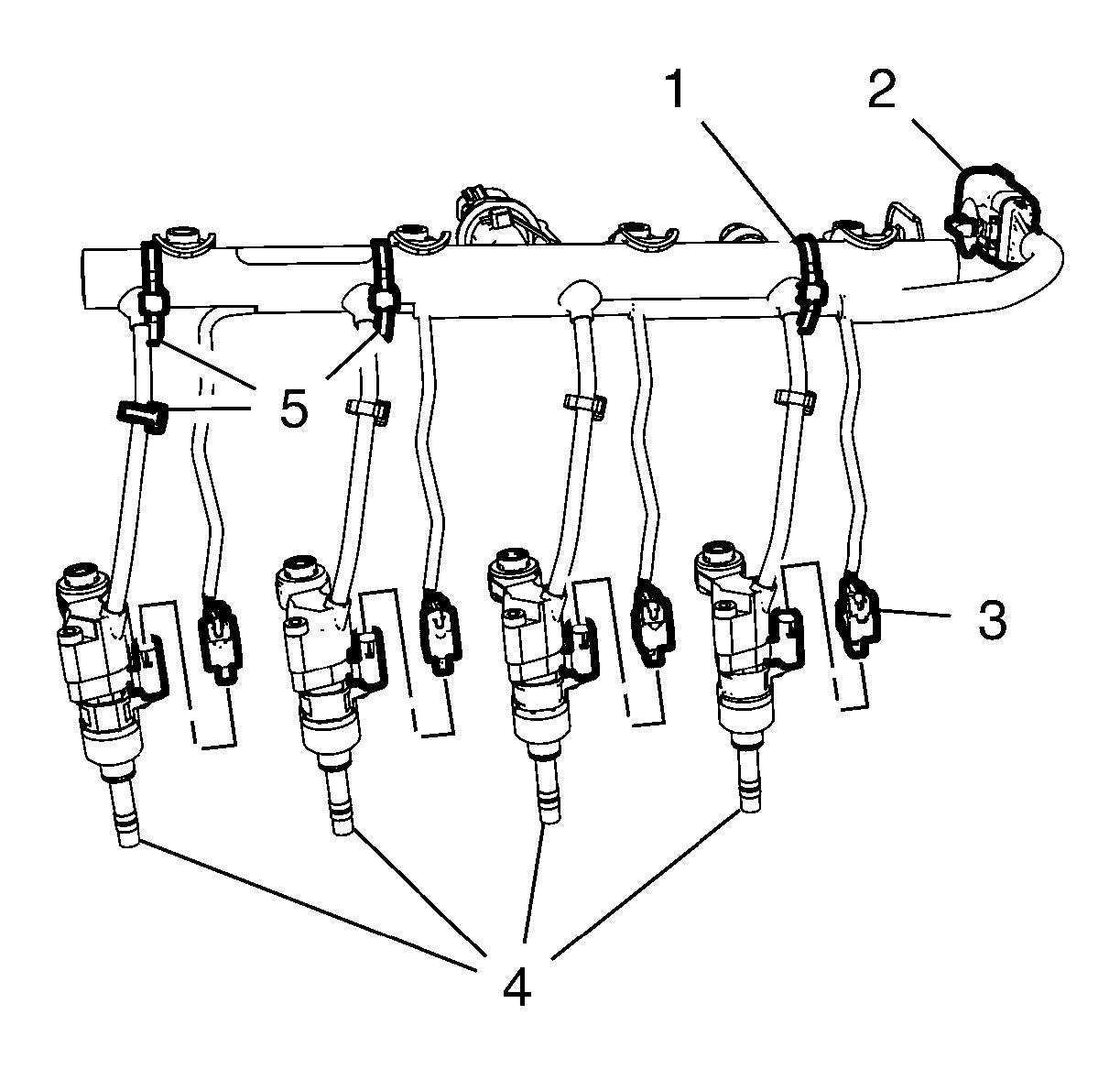

    Fig 1: Fuel Injector And Wiring Harness
    GM3682583Courtesy of GENERAL MOTORS COMPANY
  1. Install 4 the fuel injector wiring harness (3) to the 4 fuel injectors (4).
  2. Clip in the fuel injector wiring harness (2) to the fuel rail.
  3. Install NEW 7 cable ties (1, 5) to the position where they have been removed.

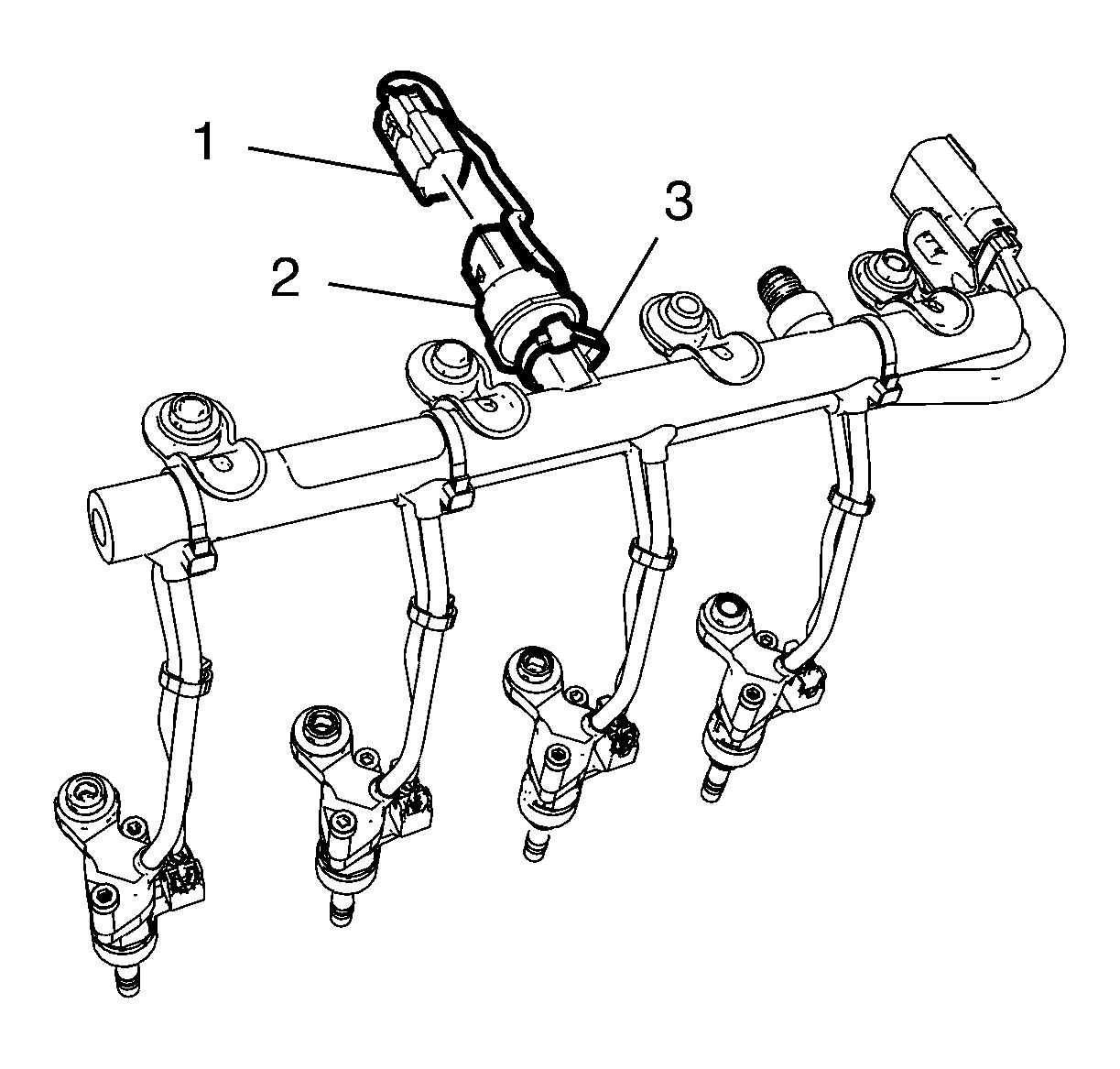

    4. Fig 2: Fuel Injection Fuel Rail Fuel Pressure Sensor Wiring Harness Plug And Fuel Rail Fuel Pressure Sensor
    GM3682588Courtesy of GENERAL MOTORS COMPANY
  4. Connect the fuel injection fuel rail fuel pressure sensor wiring harness plug (1) to the fuel rail fuel pressure sensor (2).
  5. Install a NEW cable tie (3) to the position where it have been removed.
  6. Install Fuel Injection Fuel Rail Assembly Removal and Installation
