Installation Procedure

  1. Clean and inspect the fuel injectors and the fuel injector rail. Do not remove the fuel injector from the fuel rail. Refer to Fuel Injector and Fuel Injector Bore Cleaning and Inspection .
    2. Fig 1: Mounting Sleeve-Long
    GM4732084Courtesy of GENERAL MOTORS COMPANY
  2. Install the EN-51146-2-2  mounting sleeve-long (2) to the fuel injector (1).
    3. Fig 2: Combustion Fuel Injector Seal And Long Mounting Sleeve
    GM3764347Courtesy of GENERAL MOTORS COMPANY
  3. Install a NEW combustion fuel injector seal (1) to the EN-51146-2-2  mounting sleeve-long (2).
    4. Fig 3: Installing Combustion Seals
    GM2918345Courtesy of GENERAL MOTORS COMPANY
  4. Use the EN-51146-2-6  slider (1) to push down the combustion fuel injector seal (2) on the EN-51146-2-2  mounting sleeve-long (3).
    5. Fig 4: Installing Combustion Seals
    GM3764346Courtesy of GENERAL MOTORS COMPANY
  5. Use the EN-51146-2-6  slider (1) to install the fuel injector combustion seal (2) over the EN-51146-2-2  mounting sleeve-long to the fuel injector (3).
  6. Remove the EN-51146-2-2  mounting sleeve-long with the EN-51146-2  stylus from the EN-51146-2-6-1  slider outside.
    7. Fig 5: Mounting Sleeve-Short

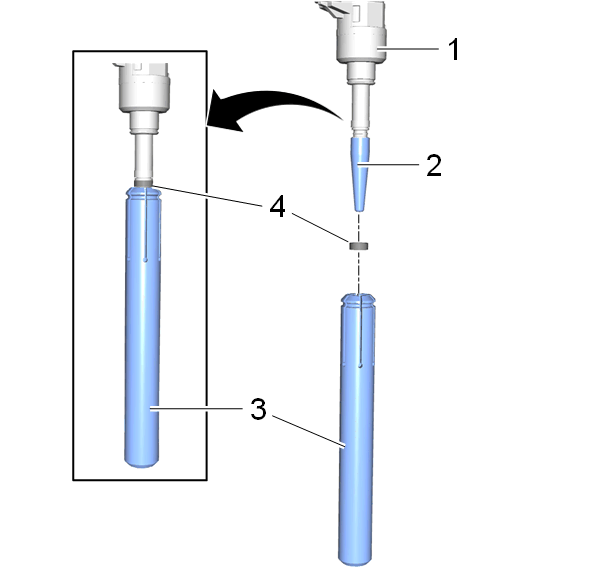

    GM4732173Courtesy of GENERAL MOTORS COMPANY
  7. Install the EN-51146-2-3  mounting sleeve-short (2) to the fuel injector (1).
  8. Install a NEW combustion fuel injector seal (4) to the EN-51146-2-3  mounting sleeve-short (2).
  9. Use the EN-51146-2-6  slider (3) to push down the combustion fuel injector seal on the EN-51146-2-3  mounting sleeve-short.
  10. Use the EN-51146-2-6  slider (1) to install the fuel injector combustion seal (2) over the EN-51146-2-3  mounting sleeve-short to the fuel injector (3).
  11. Remove the EN-51146-2-3  mounting sleeve-short (2) with the EN-51146-2-1  stylus from the EN-51146-2-6  slider (1).
    12. Fig 6: Fuel Injector Limiter
    GM3621254Courtesy of GENERAL MOTORS COMPANY
  12. Before using the EN-51146-2-4  pre-sizing tool (1), check if the fuel injector limiter (2) is in the right position.
    13. Fig 7: Pre-Sizing Tool And Fuel Injector
    GM2918347Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    First form the combustion fuel injector seals a bit with finger and thumb.

  13. Push the EN-51146-2-4  pre-sizing tool (1) over the fuel injector (2) and fuel injector combustion seals.
    14. Fig 8: Pre-Sizing Tool
    GM2918354Courtesy of GENERAL MOTORS COMPANY
  14. Tighten the nut (2) and counterhold at the wrench flat of the EN-51146-2-4  pre-sizing tool thread (1) until the measure (a) of 4.5 mm (0.177 in) is reached.
  15. Loosen the nut (2) of the EN-51146-2-4  pre-sizing tool.
    16. Fig 9: Take Off Chassis And Pre-Sizing Tool
    GM2918355Courtesy of GENERAL MOTORS COMPANY
  16. Install the EN-51146-2-4-7  puller (2) to the EN-51146-2-4  pre-sizing tool (3).
  17. Install the EN-51146-2-4-6  screw M10 (1) to the EN-51146-2-4-7  puller (2), and tighten until the EN-51146-2-4  pre-sizing tool (3) is loosened.
    18. Fig 10: Calibration Tool And Fuel Injector
    GM2968075Courtesy of GENERAL MOTORS COMPANY
  18. Install the EN-51146-2-5  calibration tool (2) to the fuel injector (1), rotate in the direction as shown in the graphic.
  19. Remove the EN-51146-2-5  calibration tool from the fuel injector.
    20. Fig 11: Installing Seal
    GM2918356Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The fuel injector seals must fit properly in the relative groove. Overlapping of the fuel injector seals with the external surface of the injector must be avoided. If the seals are installed incorrectly, it could cause leaks and risk of injury.

  20. Check the combustion fuel injector seals (2 seals each fuel injector) for correct seat:
    • The seal must not be too large, buckled or corrugated (1).
    • The seal must be fixed tight and accurate (2).
  21. If the seals are installed not correctly, repeat the steps 26 - 28 of the removal procedure and the steps 1 - 20 of the installation procedure.
    22. Fig 12: Calibration Tools And Fuel Injectors
    GM2918386Courtesy of GENERAL MOTORS COMPANY
  22. Install the 4 EN-51146-2-5  calibration tools (2) rotary to the fuel injectors (1).
  23. Remove the fuel injector assembly with the EN-51146-100  plate from the bench vise.
    24. Fig 13: Plate, Bolts And Supports
    GM2918404Courtesy of GENERAL MOTORS COMPANY
  24. Remove the 8 plate bolts (1) and remove EN-51146-100  plate (2), counterhold with a wrench (4) at the EN-51146-1-1  supports (3).
    25. NOTE:

    Never loosen both EN-51146-1-1  supports at the same time. Failure to follow this caution could cause leaks or malfunction after installation. It is only possible, when the fuel injector will be replaced.

    Fig 14: Support, Fuel Injector And Bolt
    GM2918395Courtesy of GENERAL MOTORS COMPANY
  25. Remove one EN-51146-1-1  support (2) from the fuel injector (3).
    26. NOTE:

    DO NOT reuse the old fuel injector bolt.

  26. Apply thread lock agent to the NEW fuel injector bolt (1).
  27. Install a NEW fuel injector bolt to the fuel injector and tighten to 5 N.m (44 lb in).
    28. Fig 15: Support, Fuel Injector And Bolt
    GM2918396Courtesy of GENERAL MOTORS COMPANY
  28. Remove the EN-51146-1-1  support (1) from the fuel injector (3).
    29. NOTE:

    DO NOT reuse the old fuel injector bolt.

  29. Apply thread lock agent to the NEW fuel injector bolt (2).
  30. Install a NEW fuel injector bolt to the fuel injector and tighten to 5 N.m (44 lb in).
  31. Repeat the steps 25 - 30 for the other 3 injectors.
  32. Clean the fuel injector bores at the cylinder head. Refer to Fuel Injector and Fuel Injector Bore Cleaning and Inspection .
    33. Fig 16: Fuel Injector Rail Assembly
    GM4175028Courtesy of GENERAL MOTORS COMPANY
  33. Inspect the fuel injector rail assembly:
    • Check the 4 fuel injector for damage (5).
    • Check the 8 fuel injector seals for correct seat (4).
    • Check if all bolts (3) with decoupling elements (1) and retainer (2) are complete.
  34. Remove the 4 EN-51146-2-5  calibration tools from the fuel injector.
    35. Fig 17: Fuel Rail Assembly
    GM4168603Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    During the installation of the fuel rail and injector assembly, ensure that the fuel injectors are positioned straight into the injector opening. Failure to follow this caution can tilt or bend the injectors and could cause leaks or malfunction after installation.

  35. Install carefully the fuel rail assembly (1).
  36. Push the fuel injectors slightly in their seats.
    37. Fig 18: Fuel Rail Bolt Tightening Sequence
    GM4168612Courtesy of GENERAL MOTORS COMPANY
  37. Tighten the 8 fuel rail bolts in the sequence as shown to 10 N.m (89 lb in).
    38. Fig 19: Fuel Injection Fuel Rail Wiring Harness And Fuel Rail Bolts

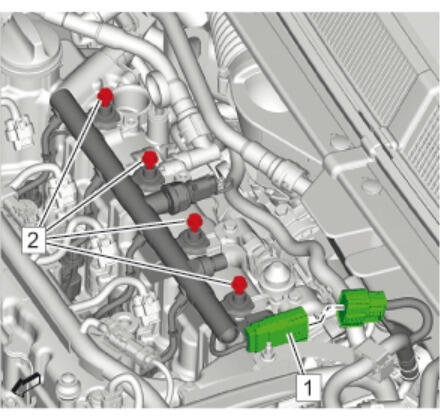

    GM3682448Courtesy of GENERAL MOTORS COMPANY
  38. Connect Fuel Injection Fuel Rail Wiring Harness (1)
  39. Install Fuel Feed Intermediate Pipe Fuel Feed Intermediate Pipe Replacement - High Pressure
  40. Install Ignition Coil Ignition Coil Replacement
    41. WARNING:

    Fuel escapes - observe safety measures and national legislation. Failure to comply could result in personal injury.

    NOTE:

    Ensure that all work at the engine is finished.

  41. Perform a fuel rail assembly leak test.
    1. Start the engine.
    2. Check the fuel system for leaks.
