Camshaft Position Sensor Replacement - Intake

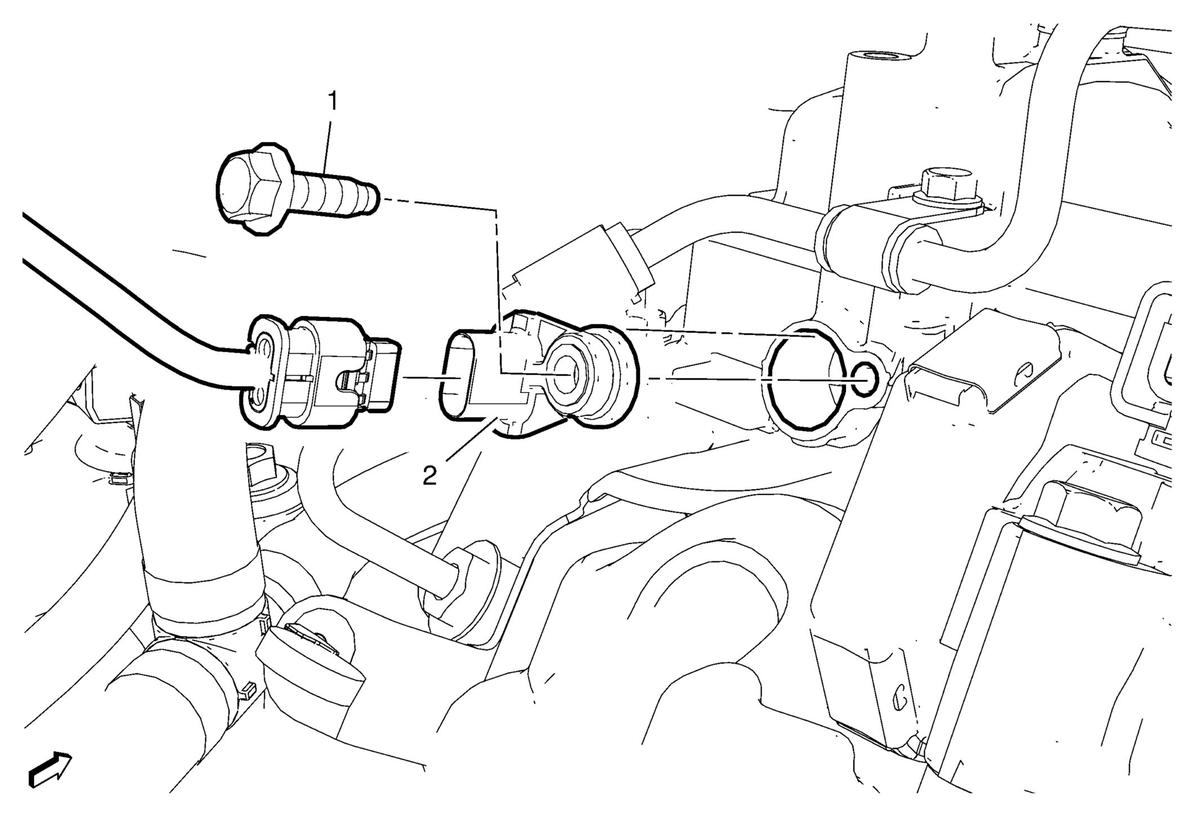

Fig 1: Camshaft Position Sensor Replacement - Intake
GM3657220Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Sight Shield Replacement
1 Camshaft Position Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect the electrical connector.
