Installation Procedure

Re-cut the thread at the cylinder head for the 8 exhaust manifold bolts.

Fig 1: Gas Recirculation Pipe Gasket

Courtesy of GENERAL MOTORS COMPANY

Install NEW Exhaust Gas Recirculation Pipe Gasket (3)
Install a NEW exhaust manifold gasket.(4)

NOTE:

Do NOT grab the exhaust manifold during the assembly procedure at the EGR pipe as this is a sensitive part.

Install Exhaust Manifold (1)

NOTE:

The service may offer bolts that are not microencapsulated. If this is the case apply thread lock agent to the bolt. If the fastener is microencapsulated, install NEW exhaust manifold bolts. DO NOT reuse the old bolts.

Install loosely the NEW 2 exhaust manifold bolts (5, 6).
Install loosely the 2 exhaust gas recirculation pipe bolts (2).

Fig 2: Exhaust Manifold Bolts

Courtesy of GENERAL MOTORS COMPANY

Install loosely the NEW 6 exhaust manifold bolts (1, 2).

Fig 3: Exhaust Manifold Bolt - Tighten In Sequence

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Fastener Caution

NOTE:

The complete tightening procedure should be completed within 10 minutes.

Exhaust Manifold Bolt - Tighten in sequence
1. First Pass: 20 N.m (15 lb ft)
2. Second Pass: 20 N.m (15 lb ft)
3. Final Pass: 20 N.m (15 lb ft)
Exhaust Gas Recirculation Pipe Bolt (1) - Tighten 10 N.m (89 lb in)

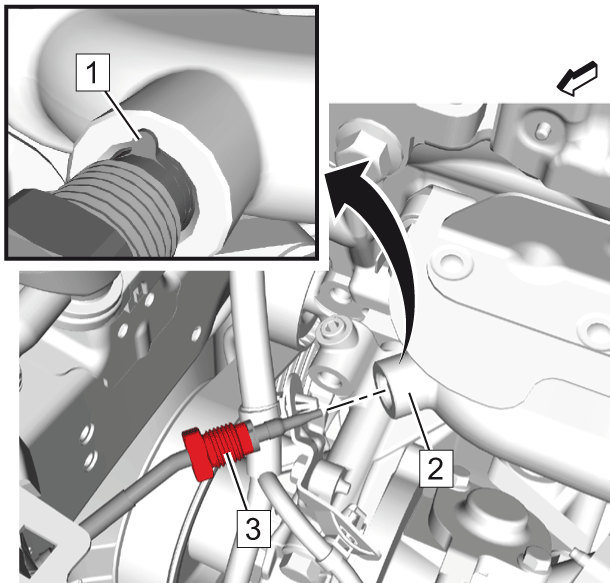

Fig 4: Exhaust Gas Recirculation Cooler Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The guide lug (1) must fit the groove.

Install Exhaust Gas Recirculation Cooler Temperature Sensor- Position 1(3) and tighten 45 N.m (13 lb ft)
Install Turbocharger Turbocharger Replacement
