Accessory Switch Replacement

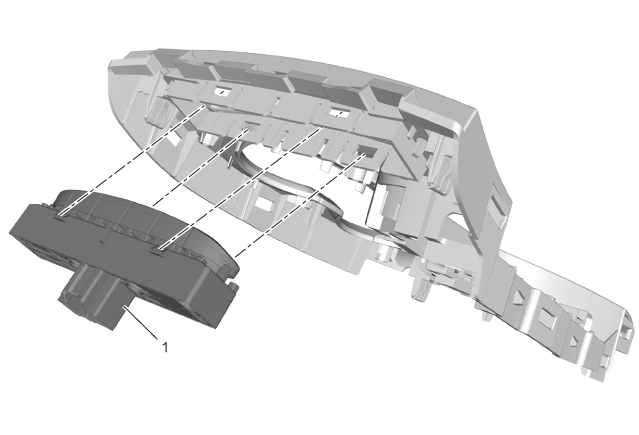

Fig 1: Accessory Switch
GM4064450Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Trim Plate Replacement (Automatic Transmission)Front Floor Console Trim Plate Replacement (Manual Transmission)
1 Accessory Switch
Procedure
Unlock the retaining tabs.
