Installation Procedure

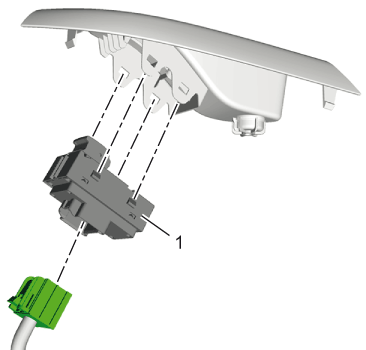

    Fig 1: Rear Side Door Window Switch
    GM4421910Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear side door window switch (1).

    Connect the electrical connector.

    2. Fig 2: Rear Side Door Armrest Pull Cup And Bolt
    GM4297777Courtesy of GENERAL MOTORS COMPANY
  2. Install the rear side door armrest pull cup (2).
  3. Install the rear side door armrest pull cup bolt (1) and tighten to 2.5 N.m (22 lb in).
  4. Close the bolt cap.
