Front Side Door Window Weatherstrip Replacement

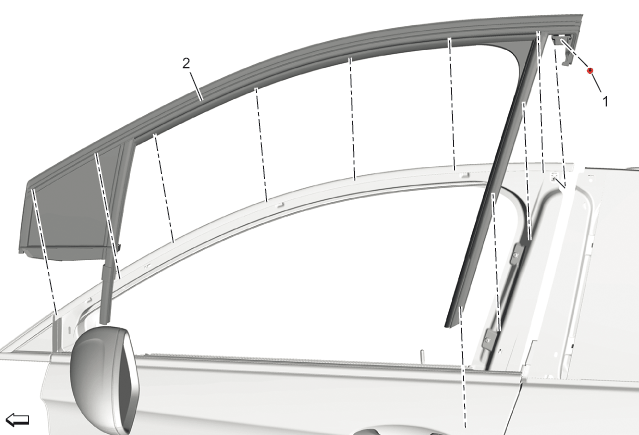

Fig 1: Front Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lower the front side door window. Front Side Door Window Upper Reveal Molding Replacement Front Side Door Window Frame Rear Applique Replacement Front Side Door Window Replacement
1	Front Side Door Window Weatherstrip Bolt CAUTION: Fastener Caution NOTE: The fastener is at the inner side oft the front side door. Tighten 9 N.m (80 lb in)
2	Front Side Door Window Weatherstrip Procedure Pull the front side door window weatherstrip away from the outer window flange to remove.

Callout

Component Name

Preliminary Procedures

Front Side Door Window Weatherstrip Bolt

CAUTION:

NOTE:

The fastener is at the inner side oft the front side door.

Tighten
9 N.m (80 lb in)

Front Side Door Window Weatherstrip
Procedure
Pull the front side door window weatherstrip away from the outer window flange to remove.
