Sunroof Panel/Window Guide Replacement

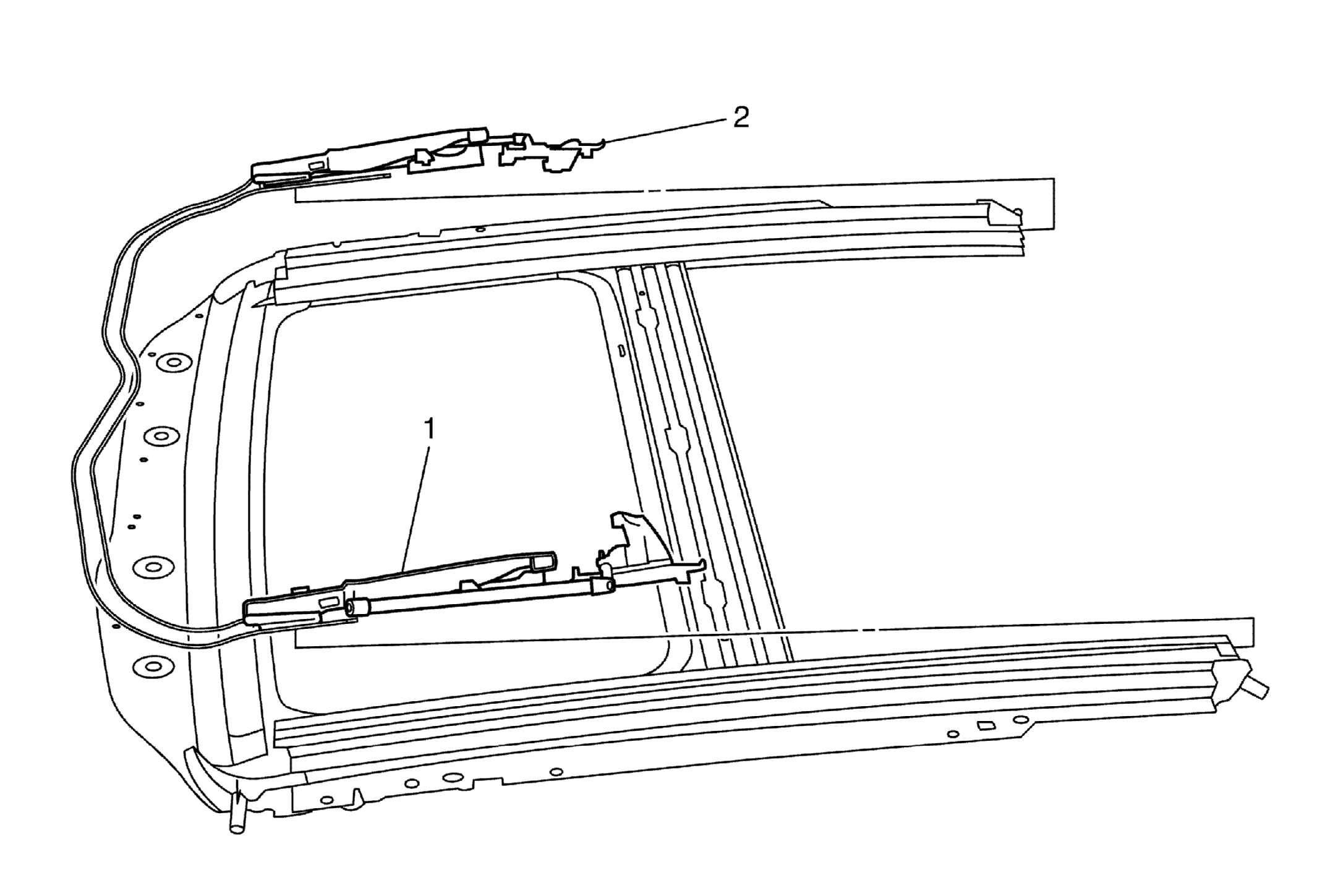

Fig 1: Sunroof Panel/Window Guide
GM2019837Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Sunroof Housing Replacement
  2. Sunroof Housing Rear Support Replacement
1 Sunroof Panel/Window Guide

Procedure

  1. Move the sunroof panel/window guide left side and right side rearward out of the sliding rail.
  2. After installation, adjust the sunroof module.
  3. After the installation, adjust the sunroof sunshade motor.
  4. After the installation, adjust the sunroof window.
  5. Functional check sunroof.
  6. Visually check the sunroof.
2 Sunroof Panel/Window Guide
