Inside Rearview Mirror Replacement

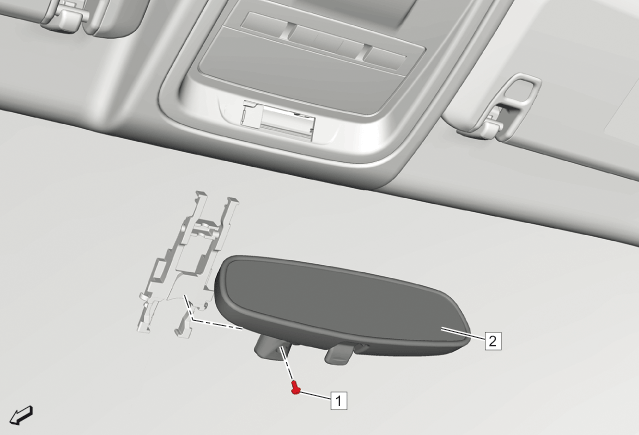

Fig 1: Inside Rearview Mirror
GM4039394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Windshield Multifunction Sensor Mount Bracket Cover Replacement
1 Inside Rearview Mirror Bolt
CAUTION:

Fastener Caution


Tighten
1.8 N.m (16 lb in)
2 Inside Rearview Mirror
