Front Floor Lower Console Replacement

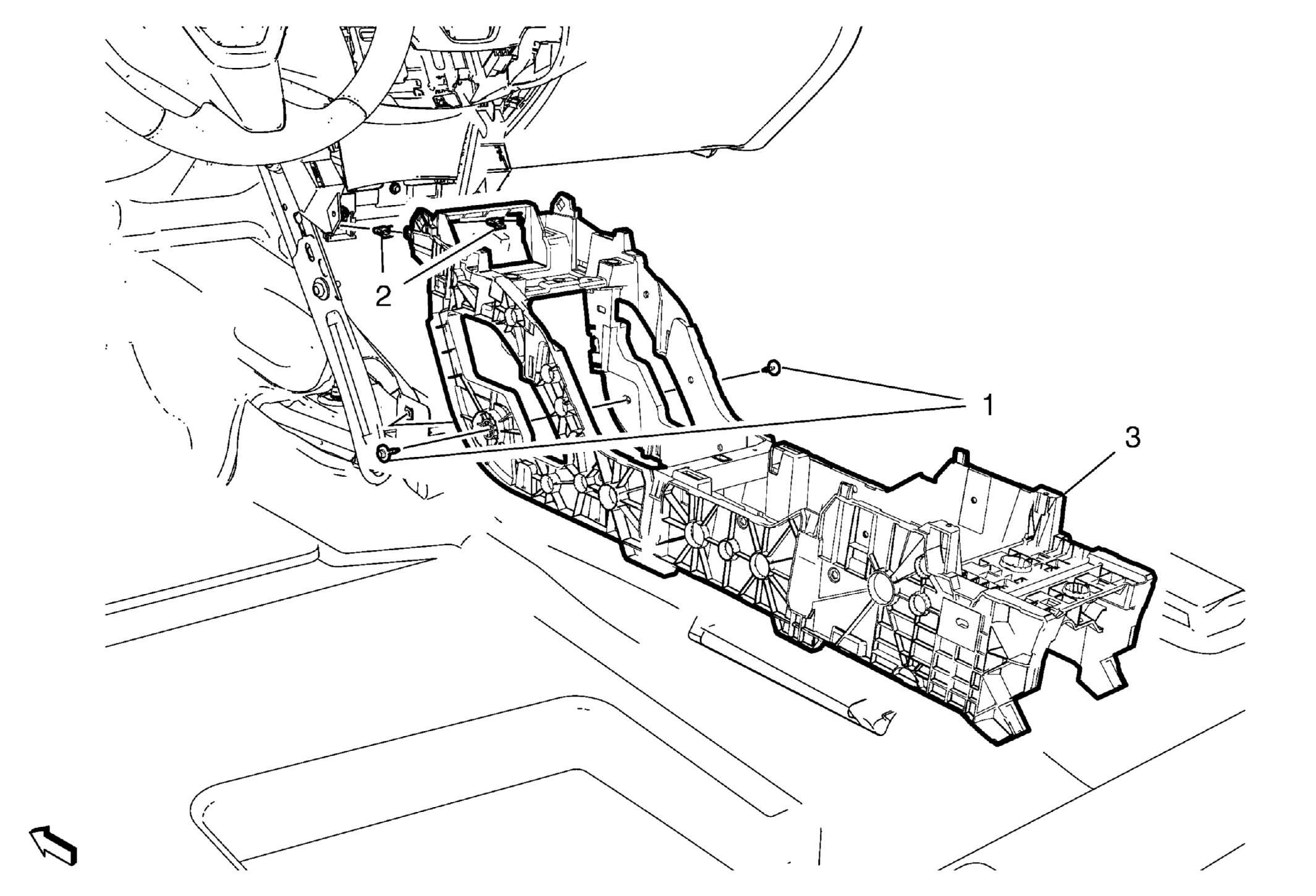

Fig 1: Front Floor Lower Console

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Floor Console Extension Panel Replacement Front Floor Console Replacement (Base) Front Floor Console Replacement (Up Level)
1	Front Floor Lower ConsoleFastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Front Floor Lower ConsoleRetainer (Qty: 2)
3	Front Floor Lower Console
