Front Floor Console Compartment Replacement

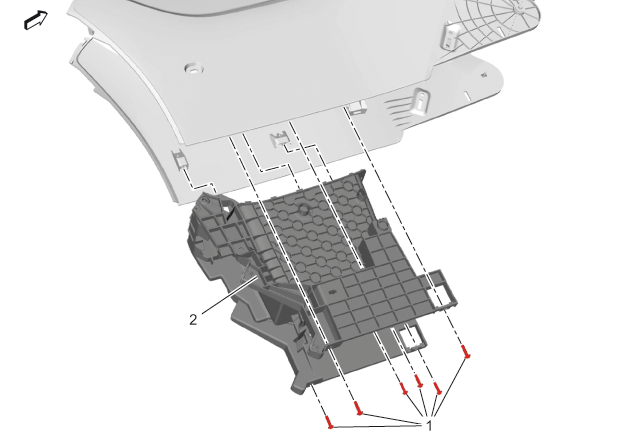

Fig 1: Front Floor Console Compartment
GM4290384Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Floor Console Replacement (Base) Front Floor Console Replacement (Up Level)
  2. Front Floor Console Armrest Replacement (Base) Front Floor Console Armrest Replacement (Up Level)
  3. Ignition Lock Key Transmitter Antenna Replacement - Floor Console
1 Front Floor Console Compartment Bolt (Qty: 6)
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Floor Console Compartment
Procedure
Transfer components as necessary.
